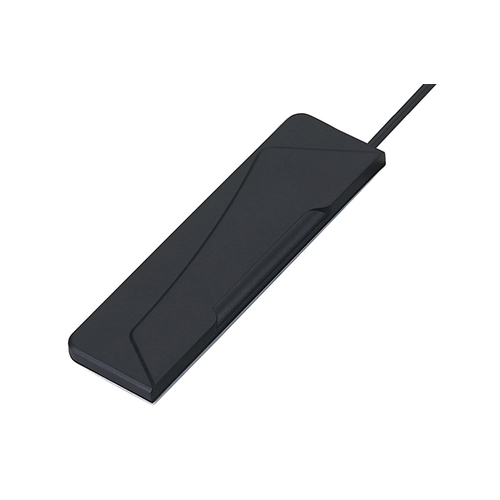

Taoglas Phoenix GSA.8827 Stick-on 700-2800MHz Antenna



Key Features



  • Ultra wideband 700-2800MHz + GPS

  • Suits 2G/3G/4G/WiFi/GPS M2M applications

  • Exceptional performance on IoT bands

  • Adhesive Mounted

  • IP67 UV Stable Housing

  • 1.5m RG174 with FME Female Connector (fully customisable on request).



Usage



  • The GSA.8827 Phoenix Ultra-Wideband I-Bar antenna is a robust high efficiency cellular antenna for use with all 2G/3G/4G cellular modules worldwide, including operation on GPS frequencies

  • Its slim-line design allows for covert and convenient installation in automotive vehicles

  • Its omni-directional gain across all bands ensures constant reception and transmission.

  • GSA.8827 is manufactured and tested in a TS16949 first tier automotive approved facility, and it has gone through full PPAP design, reliability and quality audits

  • The Phoenix finds its application particularly in first-tier automotive application, aftermarket and telematics

  • With its unique ultra-wide band dipole design, the Phoenix has exceptional industry performance characteristics considering its very low profile at 7.7mm and has a compact size of only 105 x 30mm

  • This antenna is designed to be mounted on glass or plastic (not on metal)

  • It comes with strong 3M double-sided adhesive for a permanent and secure fix to your vehicle interior. The antenna is UV Resistant.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
2.83dBi
Optus 4G+ (700MHz)
compatible
2.83dBi
Telstra Next-G™ (850MHz)
compatible
1.71dBi
New Vodafone 4G (850MHz)* *Please check Vodafone Coverage Map
compatible
1.71dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.
compatible
2.93dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.
compatible
2.93dBi
Telstra 4G (1800MHz)
compatible
1.57dBi
Optus 4G (1800MHz)
compatible
1.57dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
2.65dBi
802.11 b/g/n/ac WiFi (2400MHz)
compatible
1.49dBi
LTE-TDD Bands 38, 41 (2500-2690MHz)
compatible
1.49dBi
Telstra 4GX Band 7 (2600MHz)
compatible
1.49dBi



Electrical Specifications



  • Frequency Range: 700-800MHz / 824-960MHz / 1575.42MHz / 1710-2170MHz / 2400-2800MHz

  • Input Impedance: 50Ω

  • VSWR: <2.5:1

  • Radiation: Omnidirectional

  • Maximum Power: 50Watts.



Mechanical/Environmental Specifications



  • Construction: UV Stabilised PC/ABS

  • Cable: 1.5m RG174

  • Connector: FME Female

  • Thermal Shock: -40°C to +85°C

  • Weight: 40g

  • Dimensions: 105 x 7.7 x 30mm (L x W x H).



Read More





taoglas logo

(GSA.8827.A.101)

SKU GSA.8827.A.101
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
