Taoglas MA600 Spartan Heavy Duty 3-in-1 Combination Antenna

Key Features

• Covers 2G, 3G, and 4G networks

• GPS-GLONASS-GALILEO-BeiDou L1 Active Antenna

• Low profile housing – only 14mm in height

• IP67 Waterproof

Usage

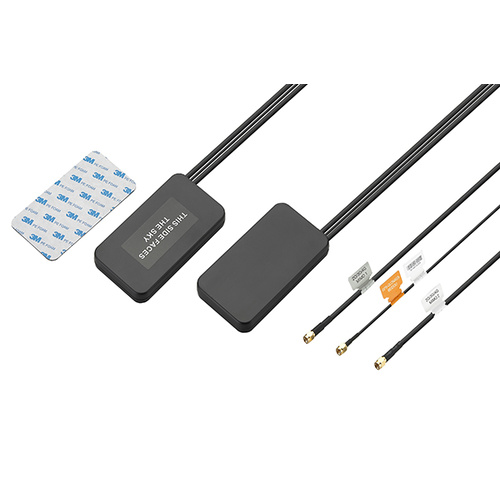

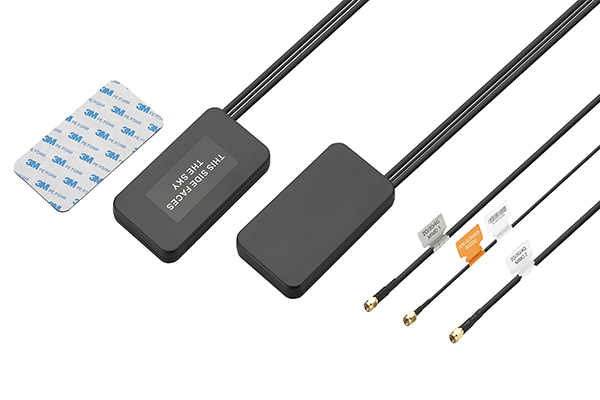

• The Sentinel 3in1 Adhesive Mount Antenna is a heavy-duty, fully IP67 waterproof external IOT antenna for telematics, transportation and remote monitoring applications

•  It is designed to be mounted directly on glass or plastic in the interior of vehicles

• The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted with a metal bracket

• It is the smallest high performance solution in the market, 50% smaller than the previous generation, with higher efficiency and wider bandwidth to cover emerging LTE bands

• Its performance is comparable with much larger permanent roof mount antennas and now offers a convenient and economical alternative in-cabin mounting solution.

Specifications / Frequency

Network Compatibility	Yes/No	Peak Gain
Telstra 4GX (700MHz)		1.02dBi
Optus 4G+ (700MHz)		1.02dBi
Telstra Next-G™ (850MHz)		1.69dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		1.69dBi
Optus Regional 3G (900MHz)* *Please check Optus Coverage Map.		2.53dBi
Vodafone Regional 3G (900MHz)* *Please check Vodafone Coverage Map.		2.53dBi
Telstra/Optus/Voda 4G (1800MHz)		4.29dBi
All carriers - Urban/Metro 3G (2100MHz)		3.87dBi

Electrical Specifications

• Frequency Range: 698-803 / 824-894 / 880-960 / 1710-1880 / 1850-1990 / 1920-2170 / 2490-2690 MHz

• Input Impedance: 50Ω

• VSWR: <2:1 Cell / <3:1 GPS

• Polarisation: Linear Vertical

• Radiation: Omnidirectional

Mechanical/Environmental Specifications

• Construction: Black ABS

• Cable: 2x 2m CFD200, 1x 2m RG174 (GPS)

• Connector: 3x SMA Male

• Thermal Shock: -40°C to +85°C

• Weight: 0.28kg

• Dimensions: 139.27 x 76.27 x 14 mm
