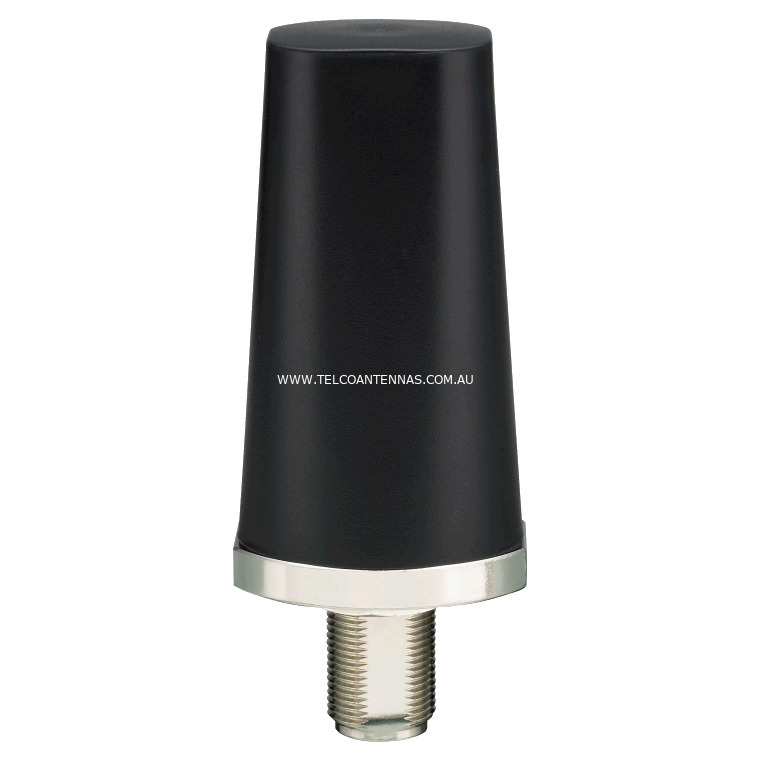

Taoglas Shockwave TLS.01 3G+4G+4GX Bulkhead Antenna - N Female



Key Features



  • Wideband 700-2700MHz + GPS

  • Low profile 79.45mm height

  • IP67 and IP69K Waterproof

  • N Female bulkhead mounted - no cable

  • Ground Plane dependent.



Usage



  • The Shockwave TLS.01.1F21:
    • is a permanent mount, waterproof, external 2G/3G/4G cellular and GPS antenna, operating at 698-960/1575.42/1710-2700MHz with an N type male connector

    • has been designed to be used on a Ground Plane

  • Can be used in mobile and fixed applications for 4G LTE wireless such as:

    • Public safety

    • HD Video Streaming

    • Utilities and Smart Cities

    • Fleet Management

    • Agricultural

    • Industrial.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
3.21dBi
Optus 4G+ (700MHz)
compatible
3.21dBi
Telstra Next-G™ (850MHz)
compatible
3.40dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map
compatible
3.40dBi
Optus Regional 3G (900MHz)
compatible
3.44dBi
Vodafone Regional 3G (900MHz)
compatible
3.44dBi
Telstra/Optus/Voda 4G (1800MHz)
compatible
3.89dBi
All Carriers - Urban/Metro 3G (2100MHz)
compatible
3.37dBi
Telstra Metro 4GX (2600MHz)
compatible
4.78dBi



Electrical Specifications



  • Frequency Range: 698-960/1575.42/1710~2700MHz

  • Input Impedance: 50Ω

  • Max Input Power: 100W

  • Polarisation: Vertical



Mechanical/Environmental Specifications



  • Construction: Housing: UV Resistant ABS, Base: Nickel Plated Zinc Alloy

  • Cable: None

  • Connector: N Female

  • Operation Temperature Range: -40°C to 85°C

  • Weight: 0.169kg

  • Dimensions: 79.45mm x 42mm (Height x Diameter)



Read More





(TLS.01.1F21)

SKU TLS.01.1F21
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.070m
Shipping Height 0.070m
Shipping Length 0.110m
