Taoglas Storm MA412 - 3G+4G+4GX MIMO Omnidirectional Antenna

Key Features

• True 2X2 MIMO covering select bands 700 to 3500 MHz

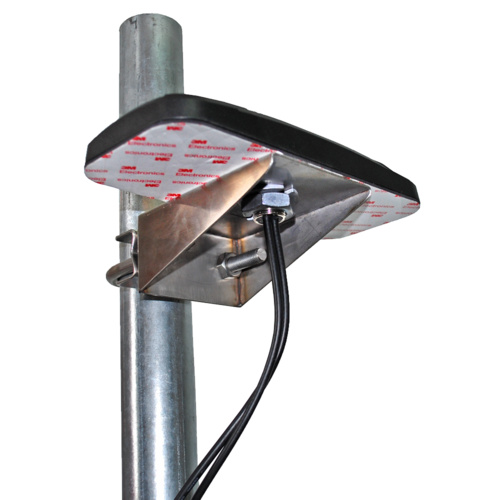

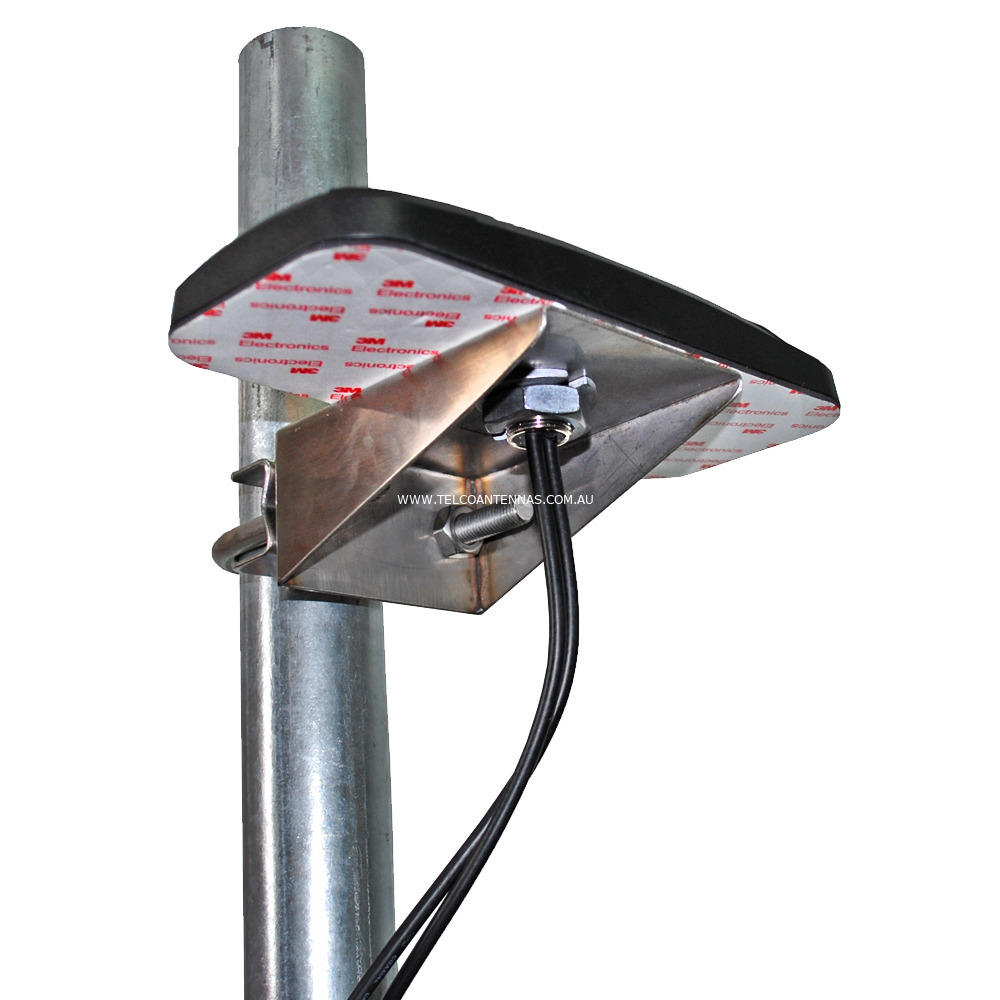

• Pole Mount Bracket

• Super low-profile

• IP67 enclosure

• Carrier Aggregation ready

• N Female or SMA Male cable options available.

Usage

• The Storm MA412 LTE MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external antenna for use in worldwide telematics applications which require best in class LTE performance

• This unique product, only 30 mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700 MHz / 800 MHz / 900 MHz / 1700 MHz / 1800 MHz / 1900 MHz / 2600 MHz.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		3.54 dBi
Optus 4G+ (700 MHz)		3.54 dBi
Telstra Next-G™ (850 MHz)		4.07 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		4.07 dBi
Optus Regional 3G (900 MHz)		4.13 dBi
Vodafone Regional 3G (900 MHz)		4.13 dBi
Telstra/Optus/Voda 4G (1800 MHz)		4.67 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		6.69 dBi
Telstra 4GX (2600 MHz)		8.11 dBi

Electrical Specifications

• Frequency Range: 698-960 MHz / 1710-2170 MHz / 2490-2690 MHz / 3300-3600 MHz

• Impedance: 50 Ω

• VSWR: <3.5:1

• Vertical Beamwidth: See specification sheet

• Polarisation: Linear

Mechanical/Environmental Specifications

• Construction: ABS+PC, Nickel Plated Aluminium Base & Thread

• Cable: 300 mm / 3 m

• Input Connector: N Female / SMA Male

• Weight: 400 g

• Ingress Protection Rating: IP67

• Operation Temperature: -40 °C to 85 °C

• Humidity: Non-condensing 65°C to 95% RH
