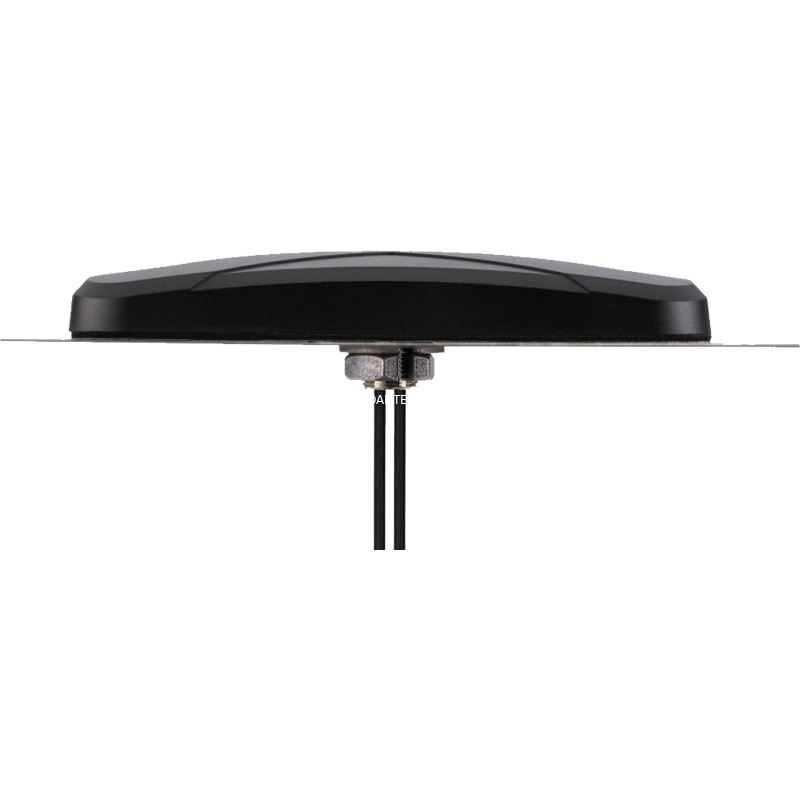

Taoglas Storm MA412 - 3G+4G MIMO Omnidirectional Antenna

Key Features

• True 2X2 MIMO technology covering select bands 700-2690MHz

• Screw-mount

• Super low-profile vandal resistant housing

• Aerodynamic IP67 enclosure

• Carrier Aggregation ready

• 2x 3m CFD200 cables with SMA Male connectors (options available).

Usage

• The Storm MA412 LTE MIMO antenna is a low profile, heavy-duty, fully IP67 waterproof external M2M antenna used for worldwide telematics applications that require best in class LTE performance

• This unique product, only 30mm high, delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz / 800MHz / 900MHz / 1700MHz / 1800MHz / 1900MHz / 2600MHz.

Typical Applications

• HD video over LTE

• First responder and emergency services

• Intelligent transport systems

• Internet of Things (IoT market)

• High definition video broadcast systems

• Wireless LTE MIMO M2M devices

• Digital signage.

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		3.54dBi
Optus 4G+ (700MHz)		3.54dBi
Telstra Next-G™ (850MHz)		4.07dBi
Vodafone 4G+ (850MHz)* *Please check Vodafone Coverage Map		4.07dBi
Optus Regional 3G (900MHz)		4.13dBi
Vodafone Regional 3G (900MHz)		4.13dBi
Telstra/Optus/Voda 4G (1800MHz)		4.67dBi
All Carriers - Urban/Metro 3G (2100MHz)		6.69dBi
Telstra 4GX (2600MHz)		8.11dBi

Specifications / Frequency

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2170MHz / 2490-2690MHz

• Impedance: 50&Omega

• VSWR: <3.5:1

• Vertical Beamwidth: See specification sheet

• Polarisation: Linear

Mechanical/Environmental Specifications

• Construction: ABS+PC, Nickel Plated Aluminium Base & Thread

• Cable: 3m CFD200 standard, fully customisable

• Connector: 2x SMA Male standard connector, fully customisable

• Weight: 400g

• Ingress Protection Rating: IP67

• Operation Temperature: -40°C to 85°C

• Humidity: Non-condensing 65°C 95% RH

Read More

• Specification Sheet
