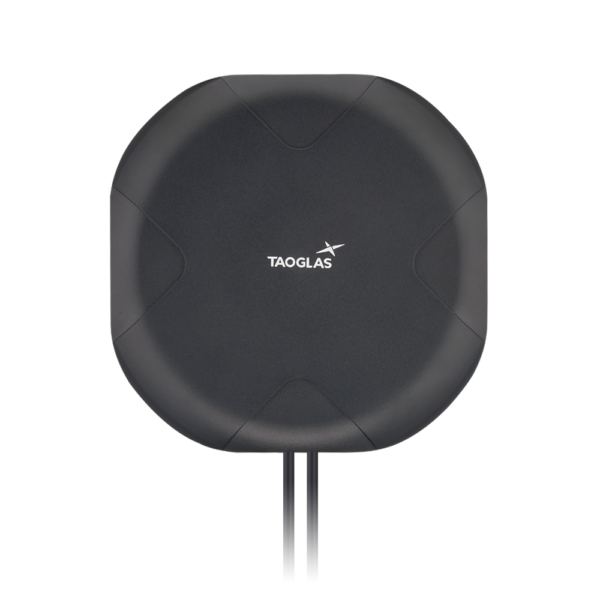

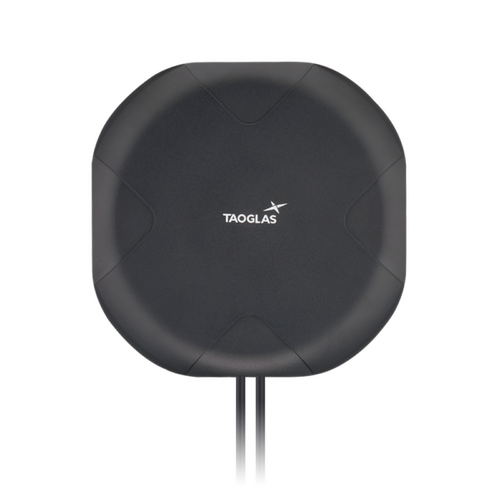

Top Seller Taoglas TGX.04 – 5G/4G LTE MIMO (2x2) Cross-Polarized Antenna with Multi Mount Bracket
SKU: TGX.45.A.BI.01
Taoglas TGX.04 – 5G/4G LTE MIMO (2x2) Cross-Polarized Antenna with Multi Mount Bracket
Key Features
-
5G/4G Cellular Wideband Coverage from 400-6000MHz
-
Cross Polarized Dipole Antenna
-
IP65 Rated Enclosure
-
Omnidirectional Coverage
-
High-Throughput
-
Multi-function bracket for Wall, Pole or Glass Mounting
Usage
-
The Taoglas TGX.45.A is a dual 5G/4G MIMO cross-polarized omnidirectional dipole antenna that boasts a broad bandwidth, accommodating all global sub-6GHz cellular bands ranging from 400 to 6000MHz. It employs two dipole antennas to optimize throughput and enhance signal quality during transmission and reception, resulting in improved coverage and performance, particularly in urban settings. The design supports various mounting options to cater to diverse applications and comes standard with 3 meters of low-loss cable equipped with SMA(M) connectors.
-
The TGX.45 represents an advancement of the highly successful TG.45 antenna design, excelling in its capability to cover all 5G/4G Sub-6GHz bands. It is specifically tuned for optimal performance within the newly established 5GNR bands of 3300 – 4200MHz, while also accommodating Band 31 (450MHz) and Band 71 (617MHz) at the lower end of the frequency spectrum. Each MIMO antenna achieves high efficiency and substantial gain across all bands.
-
The configuration of the cross-polarized antennas further enhances MIMO performance, thereby improving signal quality. This is accomplished by arranging the antenna elements orthogonally, aligning with the +/-45 degree polarized signals typically received from most base station antennas, which in turn boosts throughput capacity and provides users with superior cellular performance for their devices. The TGX.45 is designed for common applications such as gateways, routers, and wireless access points that demand high efficiency and exceptional performance, with the option to utilize a pair of antennas to establish a 4×4 MIMO solution.
-

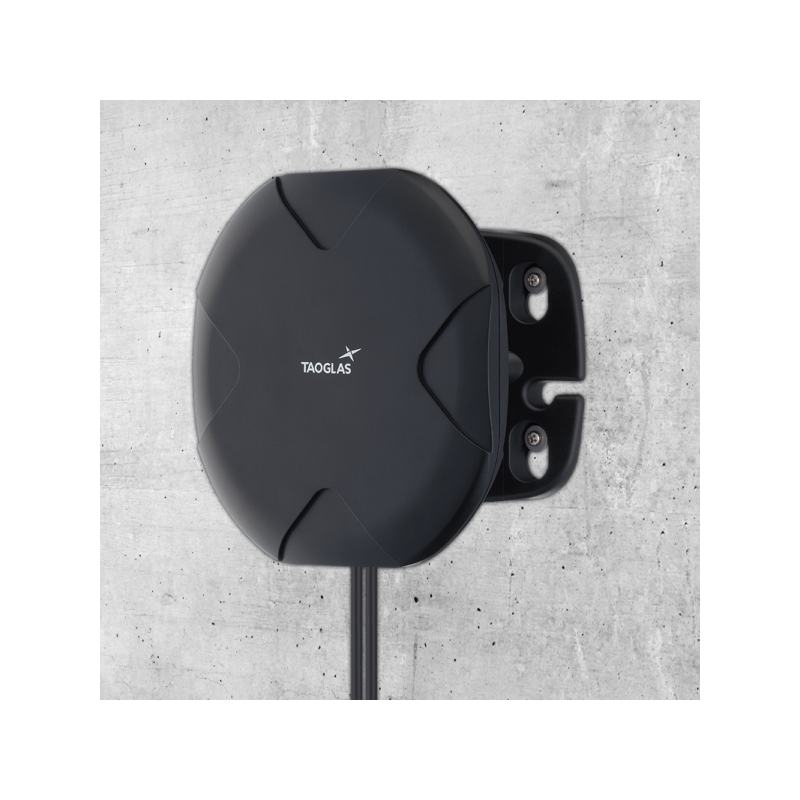

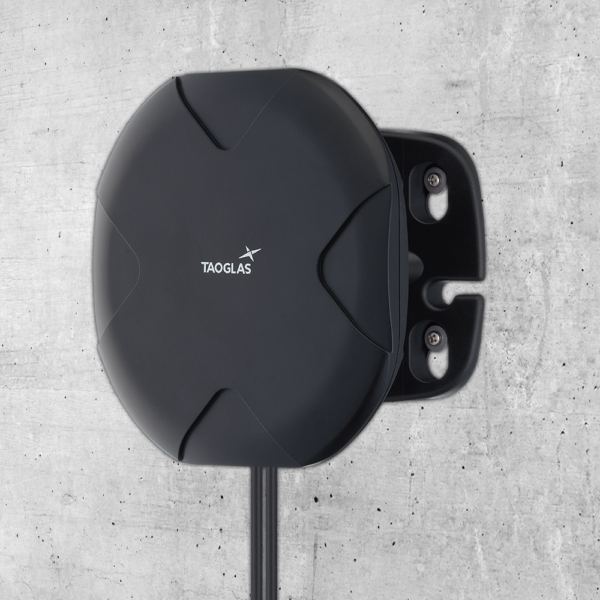

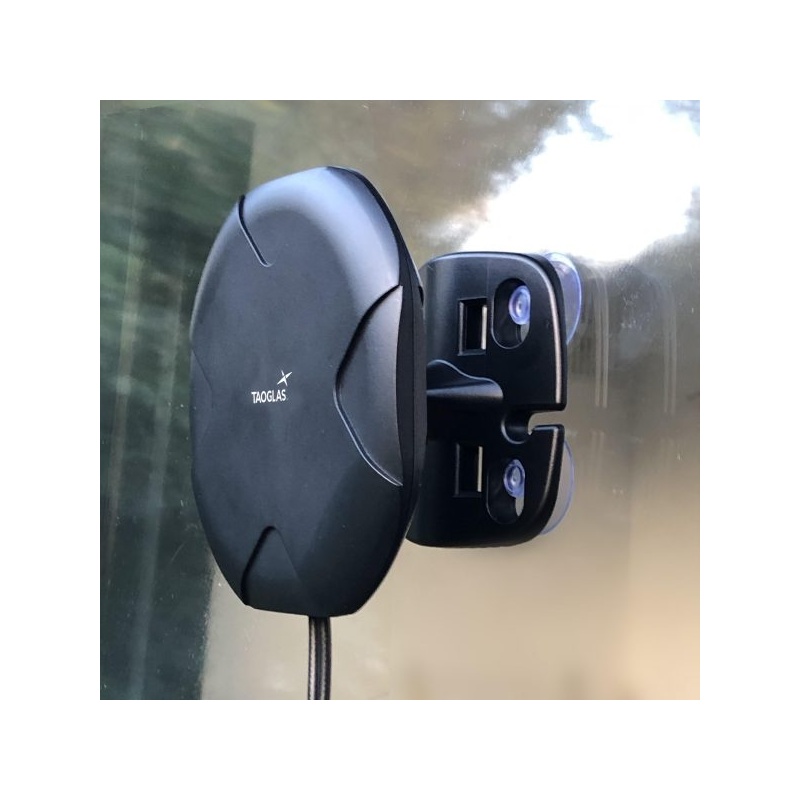

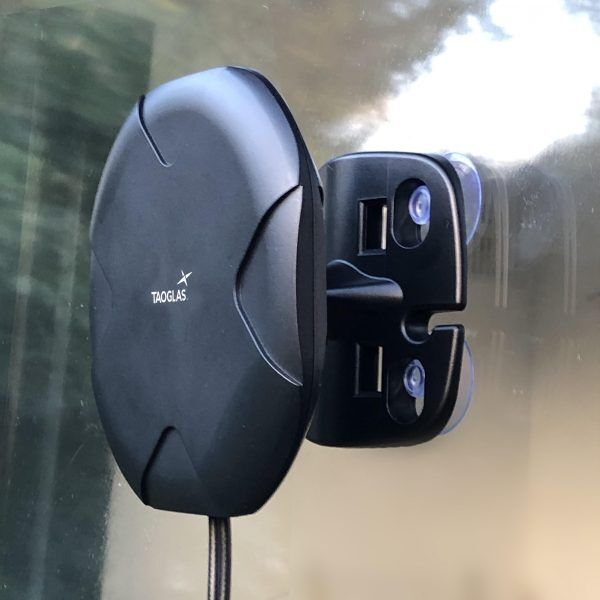

Constructed with a robust IP65-rated enclosure made from ASA, the TGX.45 ensures outstanding mechanical performance. The mounting bracket is versatile, allowing for installation on walls or poles, and it includes suction cups for glass mounting. All necessary accessories for each mounting option are provided with the product. While the TGX.45 is an omnidirectional antenna, the mounting bracket facilitates various installation orientations.
Specifications / Frequency
Impedance | 50 |
---|---|
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 85°C |
Mounting Style | Multi-Mount |
Termination Style | Connector |
Antenna Connector Type | SMA |
Cable Type | TGC-200 |
Connector Body Style | Straight |
Polarity | Linear |
Frequency Range | 400 - 6000MHz |
Connector Polarity | Normal |
Cable Length (mm) | 3000 |
Packaging | PE Bag, Carton |
VSWR | 0 |
IP Rating | IP65 |
RoHS | Yes |
Gain (Max) | 4 |
Length (mm) | 164.91 |
Width (mm) | 164.91 |
Height (mm) | 98.46 |
Weight (g) | 494 |
Read More
(TGX.45.A.BI.01)
SKU | TGX.45.A.BI.01 |
Brand | Taoglas |
Shipping Weight | 0.5500kg |
Shipping Width | 0.340m |
Shipping Height | 0.120m |
Shipping Length | 0.120m |
Shipping Cubic | 0.004896000m3 |
