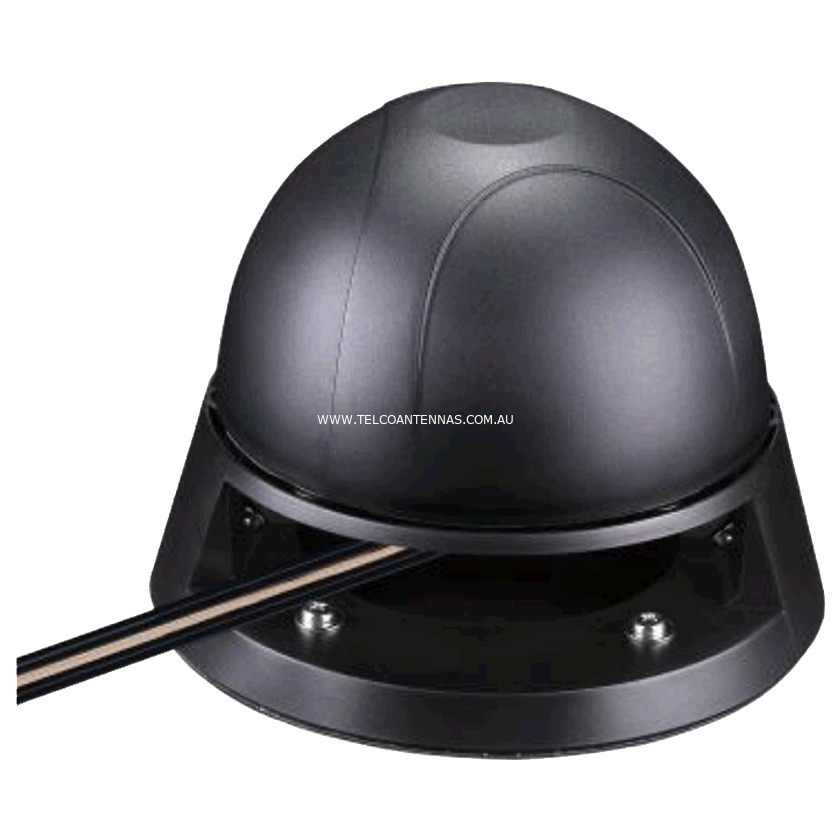

Taoglas Torus Magnetic Base for Taoglas Spartan ST/Pantheon ST Series



Key Features



  • 6 strong magnets in base, 20 kgF Magnetic Pull Force

  • Magnetic force can resist wind speeds over 100KM/H (road test)

  • Suitable for Screw Mount Antennas with Thread Diameters 19-20mm

  • Soft Cushion Foam to protect the mounting surface

  • Ready Assembled, No Drilling Required

  • Mounting Hole Dims: Ø21mm

  • Dims: Ø178.7mm x 56mm.



Usage



  • There are times when drilling a hole for installation is not feasible either due to cost or aesthetics

  • The Taoglas MMB series is a robust magnetic mount base solution for external Taoglas antennas that would typically require drilling a hole for installation

  • The Taoglas MMB magnetic mount base removes the need to drill by providing an adaptor with the proper hole size for the antenna you are using

  • The MMB series can support various Taoglas external antennas including the Olympian, Hercules, Ultima, Spartan, Spartan ST, Pantheon, and Pantheon ST series

  • The MMB.A.EXTMA.21 is designed for 2 series of antennas: - Taoglas Spartan ST, model thread of Ø20mm, supports model numbers: MA600.ST, MA612.ST and MA650.ST - Taoglas Pantheon ST, model thread of Ø20mm, supports model numbers: MA700.ST, MA710.ST, MA750.ST and MA760.ST.



Read More





(MMB.A.EXTMA.21)

SKU MMB.A.EXTMA.21
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.060m
Shipping Height 0.190m
Shipping Length 0.210m
Shipping Cubic 0.002394000m3
