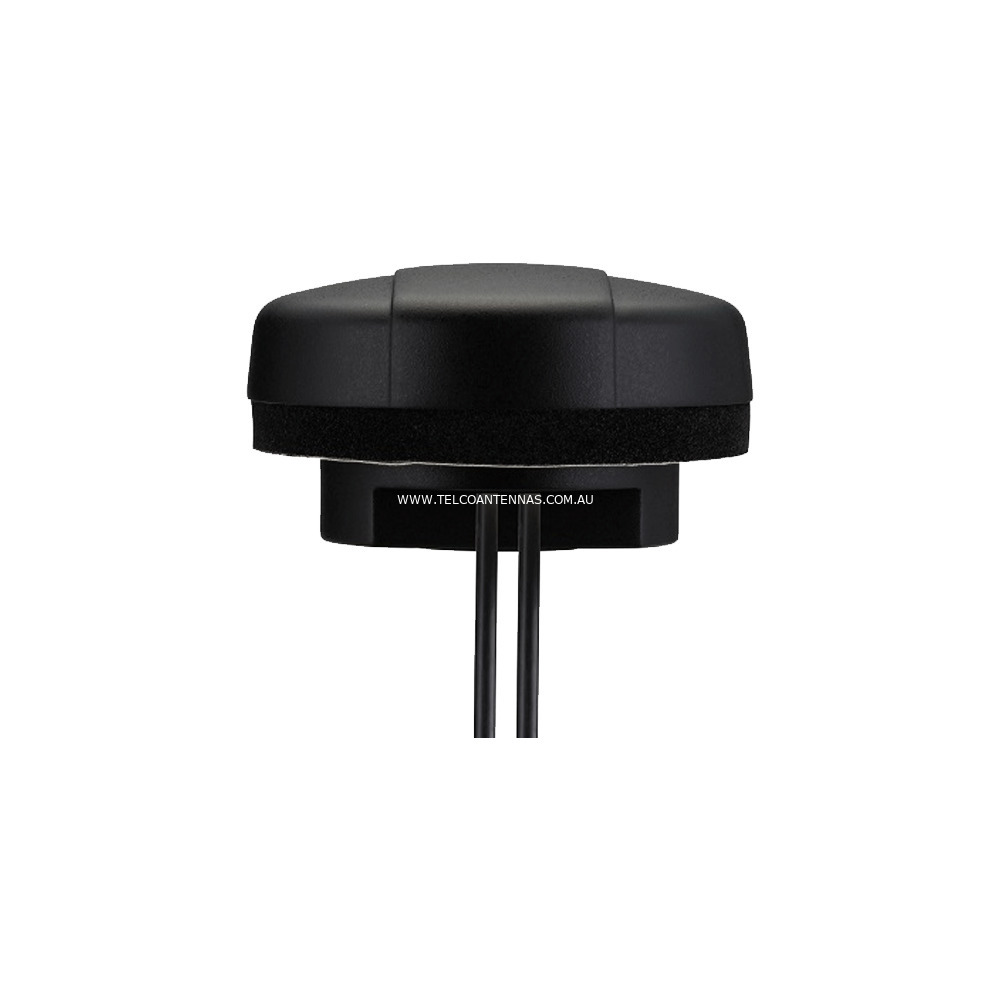

Taoglas Ultima Antenna Heavy Duty Antenna , Dual-Band 2.4GHz + 5.8GHz



Key Features



  • Dual-band 2.4/5.8GHz

  • Low profile 19.6mm height

  • IP67 and IP69K ingress proof

  • 2X2 MIMO both bands

  • 2x 1m RG174 cable with RP-SMA Male connectors.



Usage



  • The Ultima MA530 MIMO antenna is low profile, heavy-duty, fully IP67 waterproof external M2M antenna for use, transportation and remote monitoring applications

  • This unique omnidirectional antenna provide high efficiency and high isolation between antennas elements in a heavy-duty low profile compact structure, delivering powerful MIMO antenna technology for Wi-Fi 802.11n and emerging 802.11ac

  • The antenna screws down permanently onto a roof or metal panel and can be pole or wall-mounted

  • One antenna elements is vertically polarized and one is horizontally polarized to increase the isolation between antennas.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
802.11 b/g/n/ac WiFi (2400MHz)
compatible
5.5dBi
802.11 a/n/ac WiFi (5800MHz)
compatible
2.3dBi
UNII-1 5.15GHz - 5.25GHz
compatible
2.3dBi
UNII-2 5.25GHz - 5.35GHz
compatible
2.3dBi
UNII-2e 5.47GHz - 5.725GHz
compatible
2.3dBi
UNII-3 5.725GHz - 5.85GHz
compatible
2.3dBi



Electrical Specifications



  • Frequency Range: 2.4~2.5MHz, 5.15~5.85MHz

  • Input Impedance: 50Ω

  • VSWR: <3.0:1

  • Radiation: Omnidirectional

  • Input Power: 5W Max



Mechanical/Environmental Specifications



  • Construction: UV resistant PC, Plastic, Rubber Stopper

  • Cable: 1M RG-174, Fully Customizable

  • Connector: RP-SMA Male, Fully Customizable

  • Thermal Shock: 100 cycles -40°C to +85°C

  • Dimensions: 19.6 x 55.23mm (Height x Diameter)

  • Mounting: 24mm thread stud (M24)



Read More





taoglas logo

(MA530.A.CG.003)

SKU MA530.A.CG.003
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
