Taoglas Universal Mounting Bracket for M24 Thread Antennas



Key Features



  • Universal Mounting Bracket for M24 Thread External Antennas

  • U-Bolt Pole Mount

  • Wall Mount

  • Hole Dimensions: Ø31mm

  • Dimensions: 161 x 144 x 157

  • RoHS & REACH Compliant



Usage

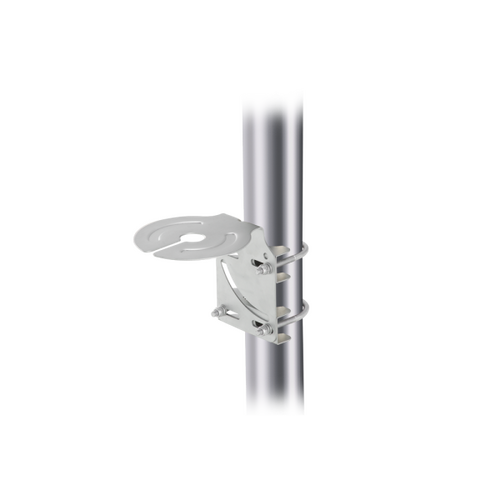

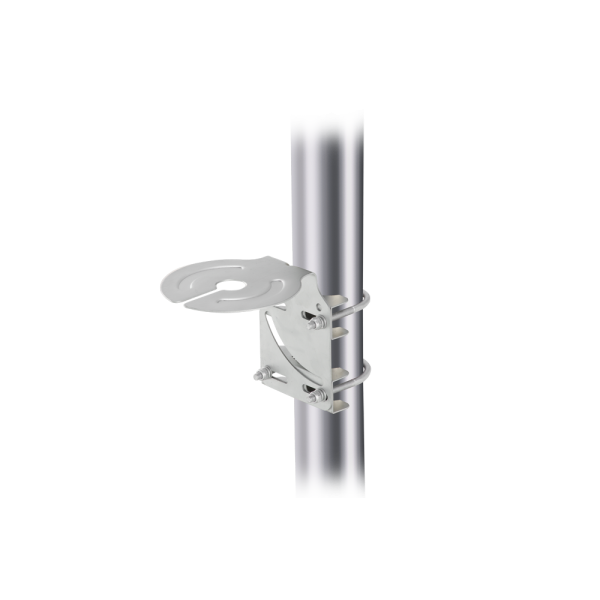

  • The Taoglas UMB.SPA.31.A is a robust multi-configuration mounting bracket kit designed for pole and wall mount installation of a wide range of Taoglas External Antennas where a bracket is the preferred method of mounting the antenna. The Pantheon series can be used with this bracket allowing it to be mounted on a wall or a pole in areas where a permanent through hole mount is not feasible.

    Configurations are available to suit your mounting requirements:

    – U-Bolt Pole Mount
    – Wall Mount



Mechanical Specifications

For Use With/Related Products 31mm Thread Suitability
Materials ABS+PC
Length (mm) 161
Width (mm) 144
Height (mm) 157
Weight (g) 595





(UMB.SPA.31.A)

SKU UMB.SPA.31.A
Brand Taoglas
Shipping Weight 0.0450kg
Shipping Width 0.120m
Shipping Height 0.100m
Shipping Length 0.200m
Shipping Cubic 0.002400000m3
