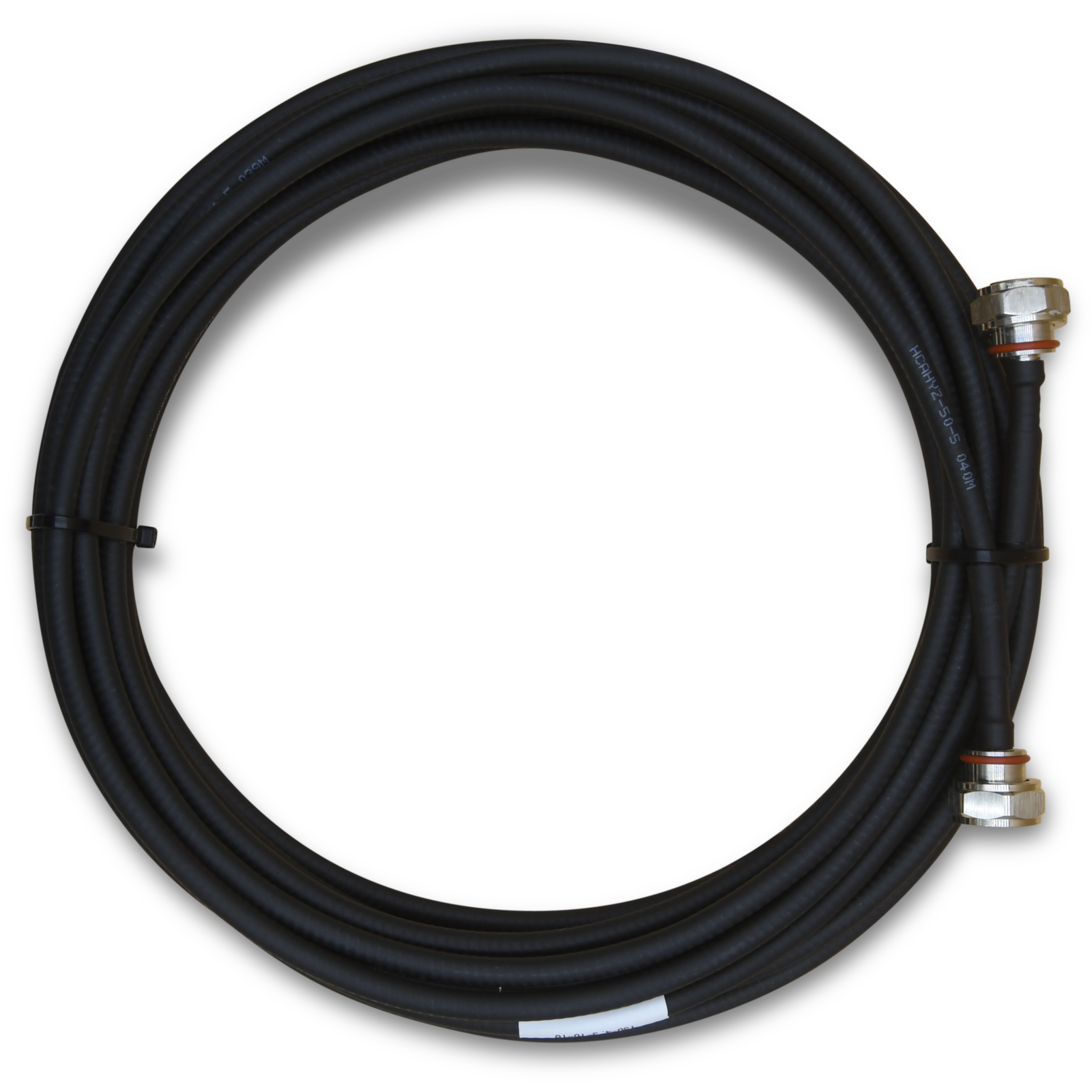

10m Telco TEL150 1/4" Corrugated Coaxial Cable Assembly



Key Features



  • Low density foam dielectric

  • 50Ω impedance

  • Corrugated copper outer conductor

  • CCA inner conductor

  • 2x 4.3-10 Male connectors.



Usage

  • Telco Antennas 1/4” flexible foam dielectric 50Ω coaxial cable is a very high performance feeder cable

  • The high-performance of attenuation allows coaxial cable to be used in different RF systems, such as 3G, 4G & 5G mobile communication.
  • Wide range of applications, such as indoor distribution, broadcast, various base stations, wireless cellular, and others.
  • Lower VSWR, perfect shielding effectiveness, and extraordinary inter-modulation performance lead to fewer energy loss and outer interference.



Specifications / Frequency

Electrical Specifications

  • Resistance: 50Ω

  • Capacitance: 79.4pF/m

  • Signal Loss: 0.174dB/m @ 850MHz, 0.269dB/m @ 1800MHz

  • Frequency Range: DC-18GHz

  • Velocity of Propagation: 84%

  • Peak Power: 6.4kW



Mechanical Specifications

  • Conductor Material: Copper Clad Aluminum (Φ 1.9mm)

  • Insulating Material: Physically foamed PE (Φ 4.8mm)

  • Outer Shield Material: Corrugated Copper Tube (Φ 6.3mm)

  • Outer Jacket Material: Black PE Weather & UV Resistant (Φ 7.7mm)

  • Bend Radius: 25mm

  • Min Repeated Bending Radius: 30mm

  • Max Tensile Force: 680N



Read More



(150-4310-10)

SKU 150-4310-10
Shipping Weight 4.1200kg
Shipping Width 0.480m
Shipping Height 0.480m
Shipping Length 0.235m
Shipping Cubic 0.054144000m3
