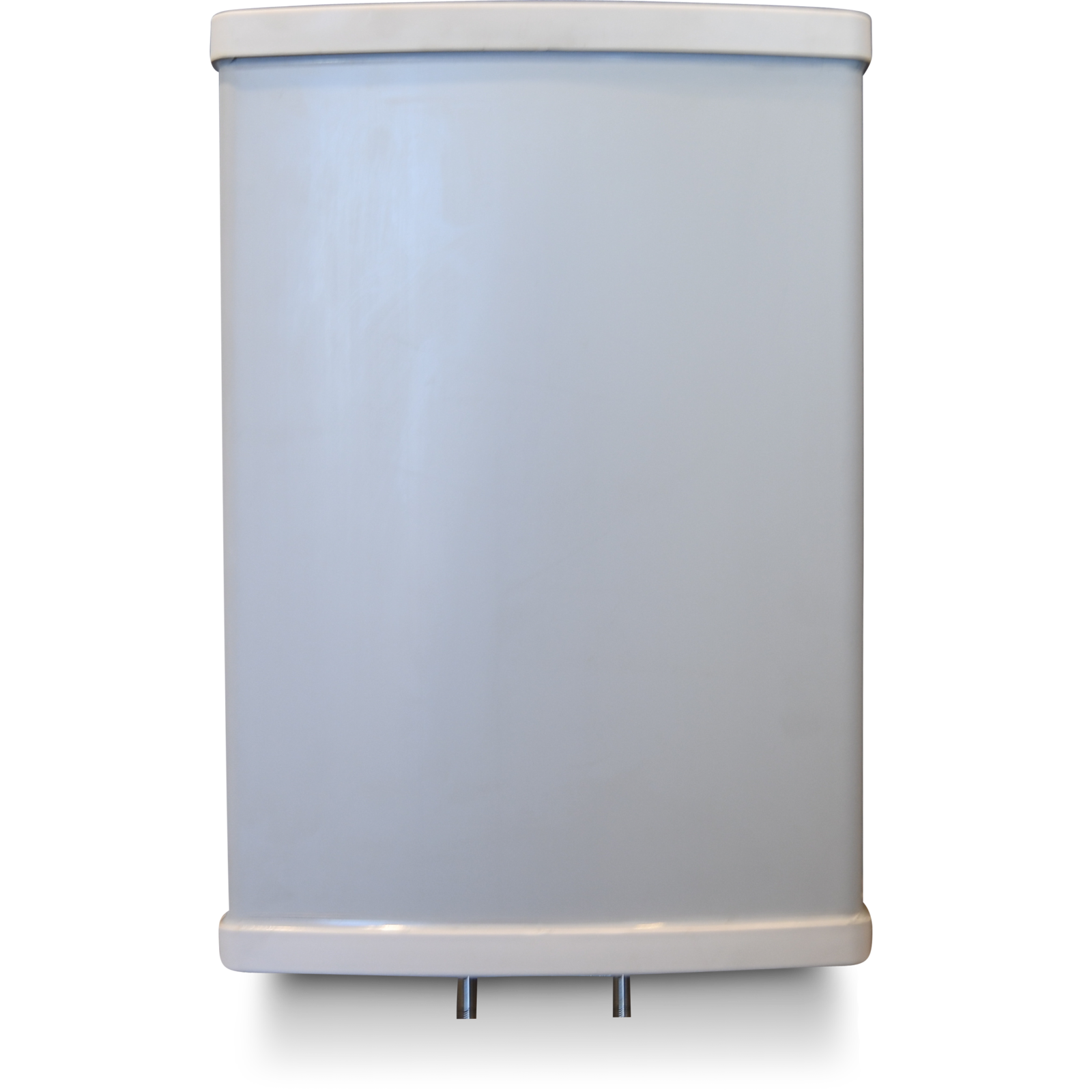

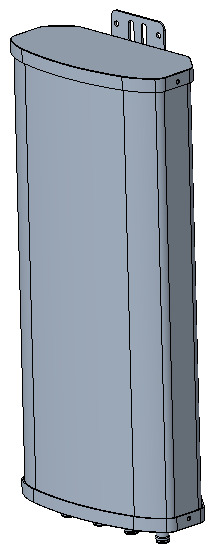

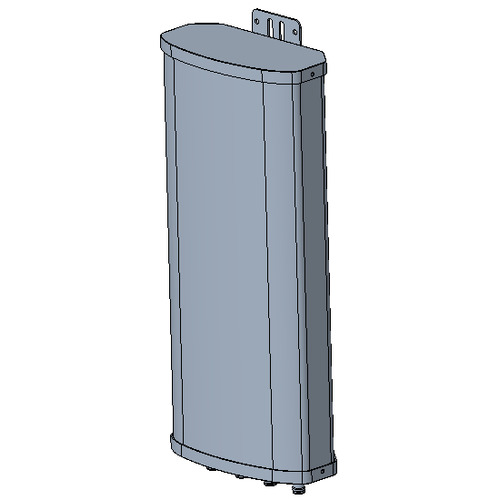

Telco XPOL 4x4 MU-MIMO Panel Antenna

Key Features

• Multi Polarised Antenna feed with High Isolation

• Industrial grade weatherproof PVC radome

• High gain, high F/B ratio

• Your choice of connectors - N Female or 4.3-10 Female

• Carrier aggregation ready

• Ideal for LTE small cell deployments

• Wide spectrum design, suits all current and planned networks (including 5G 3600MHz).

Usage

• Designed for High End 4x4 MiMo LTE Applications

• This heavy duty wideband panel antenna sports an extremely wideband design - operating on three bands 698-960 MHz, 1710-2700 MHz & 3400-3800 MHz

• As the highest grade multiband panel antenna on the market, this antenna has an incredibly low VSWR and <-150 dBc PIM, making it the ideal antenna for commercial and industrial 4G applications, and suitable for broadcast and carrier applications

• This is one of the few antennas on the market capable of covering the entirety of the Australian Mobile Frequencies, no matter the Carrier or technology used

• This incredibly high performance antenna, is highly recommended for most suburban, metro, and semi-rural applications

• With this high performance carrier-aggregating antenna, you can take full advantage of the blistering speed your 4G network offers - regardless of frequency

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		8 dBi
Optus 4G+ (700 MHz)		8 dBi
Telstra Next-G™ (850 MHz)		8 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		8 dBi
Optus Regional 3G (900 MHz)		8 dBi
Vodafone Regional 3G (900 MHz)		8 dBi
Telstra/Optus/Voda 4G (1800 MHz)		8.5 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		8.5 dBi
Optus/Vivid Wireless 4G (2300 MHz)		8.5 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		8.5 dBi
Telstra 4GX (2600 MHz)		8.5 dBi
Optus 4G (2600MHz)		8.5 dBi
All Carriers 5G (3.5GHz)		5 dBi

Electrical Specifications

• Frequency Range: 698 to 960 MHz / 1710 to 2690 MHz / 3400 to 3800 MHz

• Input Impedance: 50Ω

• VSWR: <2:1

• Polarisation: ±45° (XPOL)

• Horisontal Beamwidth: 68° (± 15°) / 68° (± 15°) / 60° (± 10°)

• Vertical Beamwidth: 68° (± 15°) / 68° (± 15°) / 60° (± 15°)

• Front to Back Ratio: >20 dB

• Cross Polarization Ratio: >20 dB

• Radiation: Directional

• Maximum Power: 100 Watts

Mechanical/Environmental Specifications

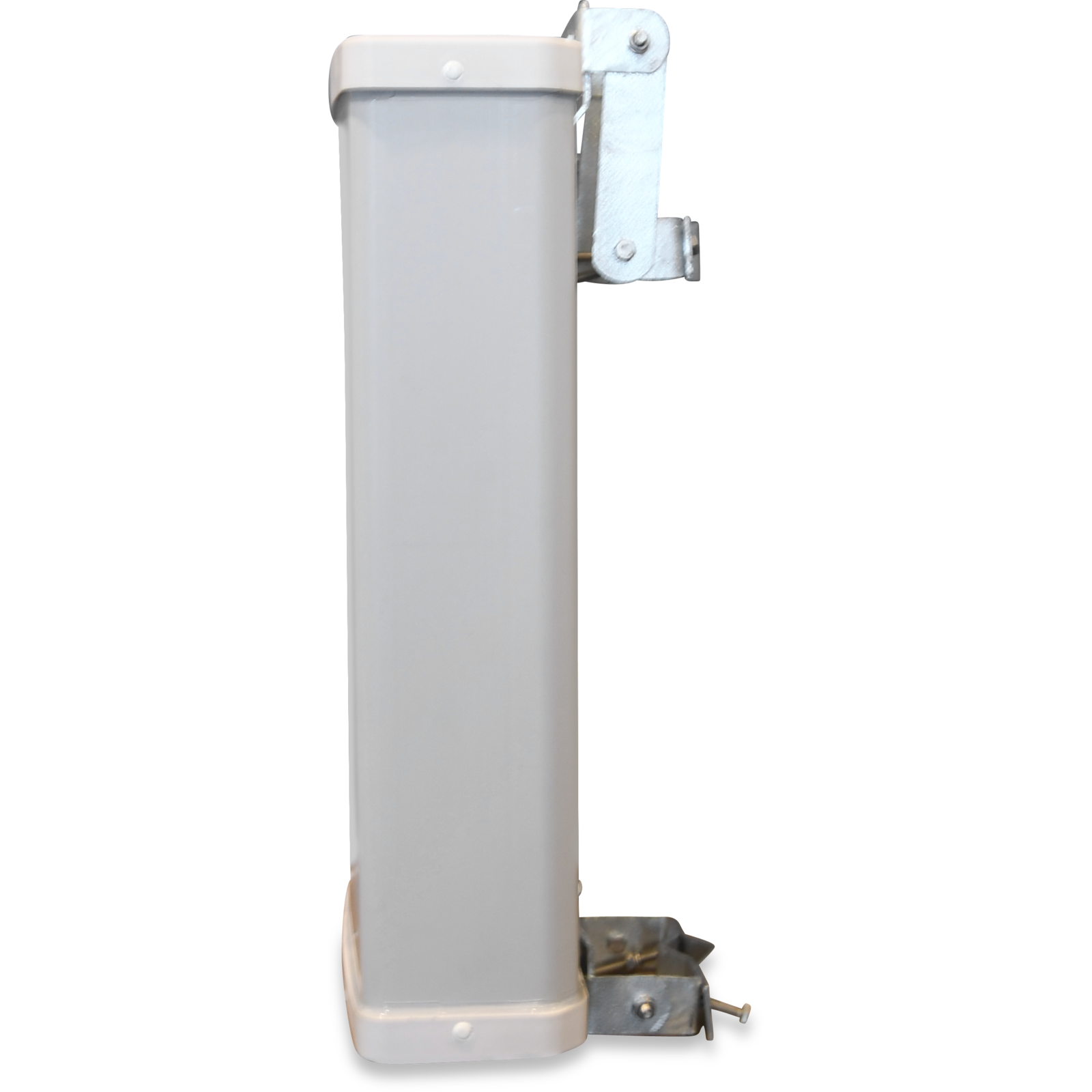

• Construction: PVC Radome, 304 Stainless Steel Tilt Bracket

• Cable: none

• Input Connector: 2x Integrated N-Type Female / 2x Integrated 4.3-10 Female

• Wind Rating: 198 km/hr

• Temperature: -40 °C +60 °C

• Weight: 7 kg

• Dimensions: 656 x 289 x 134 mm (L x W x D)

• Mounting: 25-72 mm Ø pole
