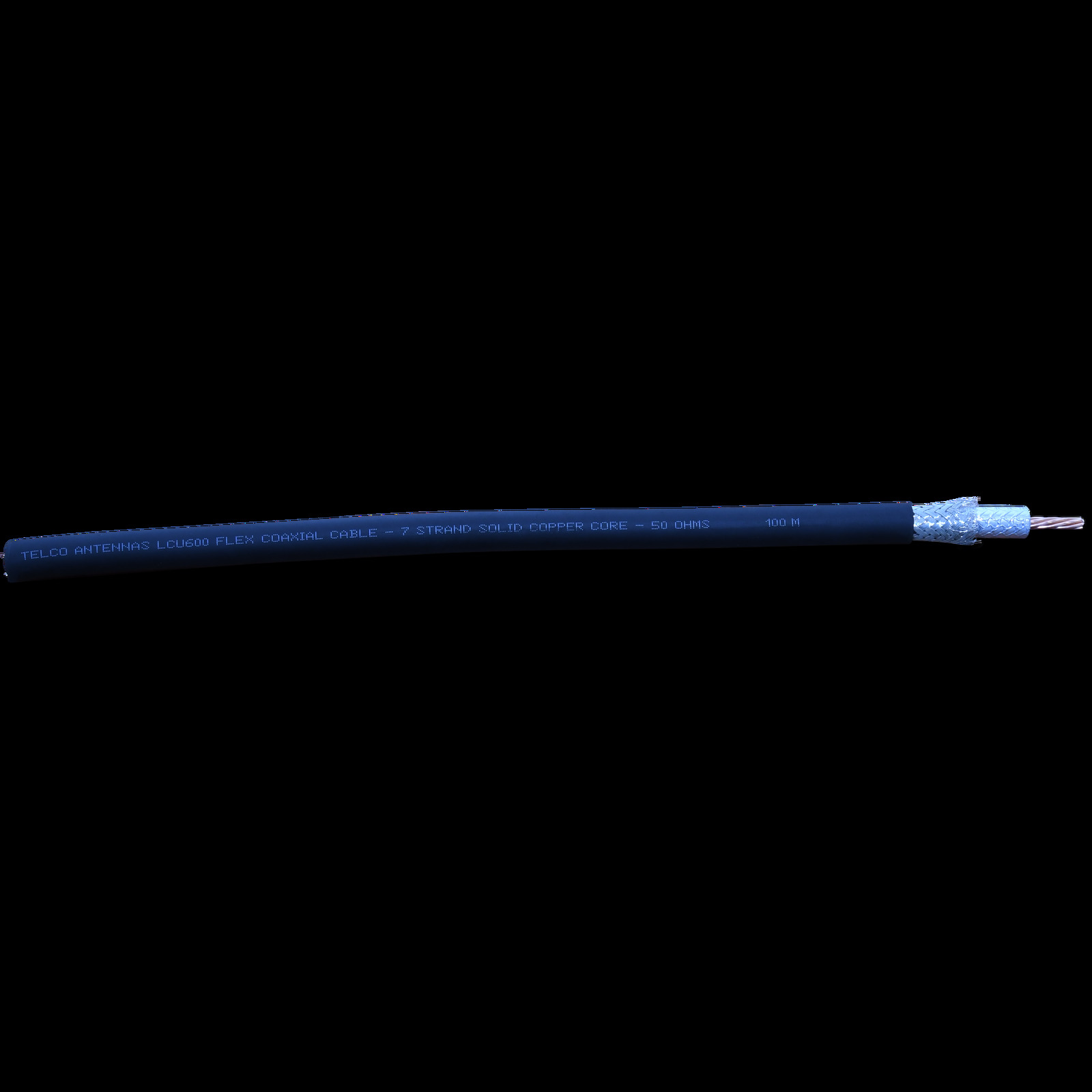

Telco Antennas LCU600 Ultra Low Loss Flexible Coaxial Cable - 500m Reel



Key Features



  • Ultra Flexible Cable

  • Extremely Low Loss

  • Increased RF Shielding

  • 50Ω impedance

  • Weather Resistant



Usage



  • LCU600 is suitable for jumper cable assemblies in Wireless Communication Systems.

  • LCU600 was designed with extra Sshielding and a thicker core compared to our LCU400 so it is suitable for longer Cable Runs.

  • LCU600 is an ultra flexible Coaxial Cable designed to get into tigther spaces than our Corrugated Cable variants or in situations that require periodic or repeated flexing.

  • LCU600 suits LMR600 Cable Connectors.





A heads up!

  • We strongly advise using our trade form or contacting us for ordering this product.



Specifications / Frequency

Electrical Specifications
Operating Frequency Band: 1 – 6000MHz
Capacitance: 77pF/m
Impedance: 50Ω
Velocity Ratio: 86%
DCR Inner Conductor: <1.5Ω/km
DCR Outer Conductor: <3.9Ω/km
Jacket Sparker: 8000VRMS
Dielectric Strength: 4000VDC
Insulation Resitance: >5000MΩ/km
Peak Power : 400KW
Shielding Effectiveness: >90dB

Mechanical Specifications
Minimum Single Bending Radius: 38.5mm
Minimum Repeated Bending Radius: 152.4mm
Storage Temperature Range: -70°C to +85°C
Installation Temperature Range: -40°C to +85°C
Operating Temperature Range: -40°C to +85°C
Inner Conductor: Stranded BV
Conductor Diameter: 4.47 +/- 0.02mm
Insulation: Gas Injected PE
Insulation Diameter: 11.56 +/- 0.15mm
Shielding: AL/P-Foil (Bonded)
Diameter: 11.71 +/-0.1mm
Outer Conductor    TC Wire Braid
Diameter: 12.45 +/- 0.1mm
Jacket: TPE
Outer Diameter: 14.99 +/-0.15mm



Read More

  • Specification Sheet



(LCU600-500)

SKU LCU600-500
Shipping Weight 100.0000kg
Shipping Width 1.000m
Shipping Height 0.600m
Shipping Length 1.000m
Shipping Cubic 0.600000000m3
