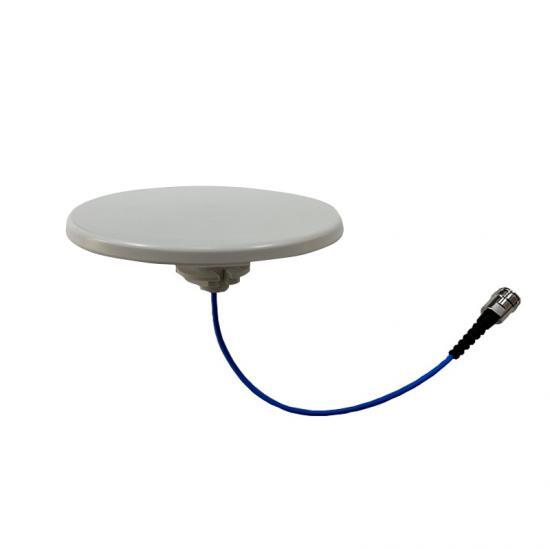

Telco Antennas Ultra Thin DAS Omnidirectional Ceiling Antenna - 600-6000MHz



Key Features



  • Compact & Low Weight

  • Single Port for Cel-Fi GO amplifier

  • Full 3G & 4G & 5G Band Coverage

  • Single 300mm tail with N Female Connector



Usage



  • The DAS-6-6000-SL is an Ultra Low Profile Ceiling Mounted Antenna thas has effective performance, gain and low P.I.M. (passive intermodulation) across a broad range of cellular or wireless data

  • Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

  • The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.



Specifications / Frequency

Electrical Specifications

  • Frequency Range: 617-960 / 1710-2170 / 2170-2700 / 3300-4000 / 4900-6000 MHz
  • Max Gain: 2dBi / 2.5dBi / 4dBi / 5dBi / 4dBi / 5.5dBi
  • Input Impedance: 50 Ω
  • PIM 3rd Order: ≤ -153dBc
  • Maximum Powew: 50w
  • VSWR: <1.7:1
  • Horizontal Beamwidth: 360°
  • Vertical Beamwidth: 116° / 78° / 70° / 65° / 30°




Mechanical/Environmental Specifications



  • Construction: PC + ABS

  • Cable: 300mm

  • Input Connector: N Female

  • Weight: 0.25 kg

  • Dimensions: 10 x 190mm (H x Ø)

  • Mounting: Ceiling



Read More

  • Specification Sheet



(DAS-6-6000-SL)

SKU DAS-6-6000-SL
Brand Telco Antennas
Shipping Weight 0.0450kg
Shipping Width 0.180m
Shipping Height 0.160m
Shipping Length 0.190m
Shipping Cubic 0.005472000m3
