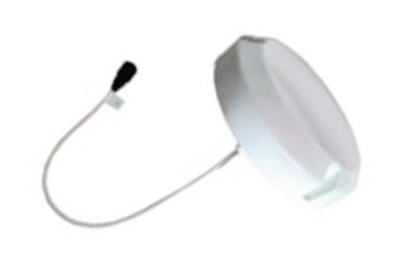

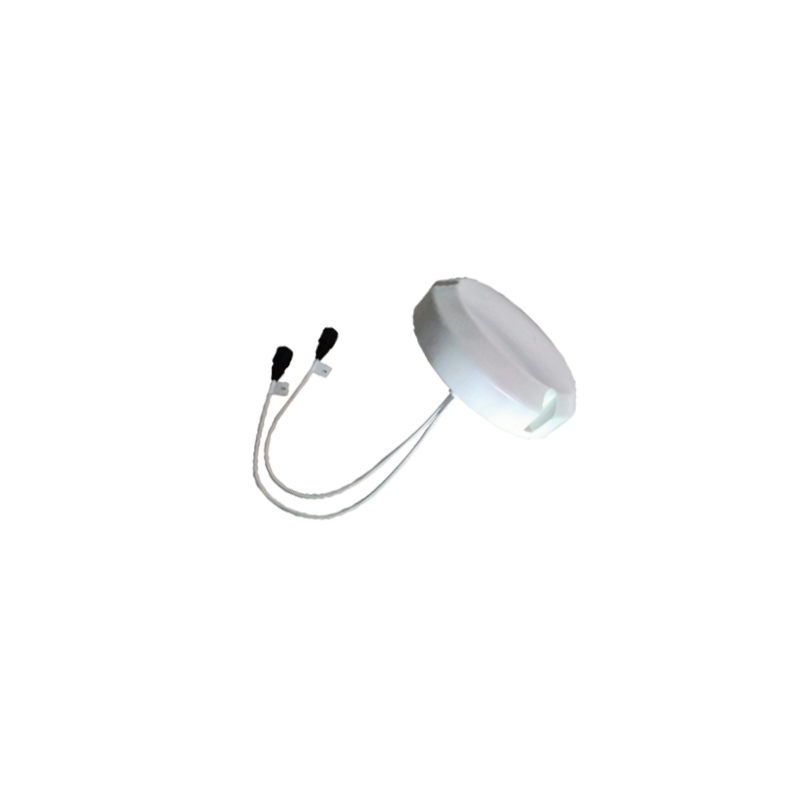

Telco DAS Omnidirectional Ceiling Antenna - 700-6000MHz

Key Features

• Single Port for Cel-Fi GO amplifier

• Full 700 to 3800MHz band coverage

Usage

• Ideal ceiling mounted drop antenna for multi-storey or multiple room coverage

• The DAS-7-38-C-N antenna is a high performance multiband omni-directional ceiling mount antenna, covering 698-800MHz, 800-960MHz, 1710-2700MHz & 3300-3800MHz (LTE)

• The multi-band design eliminated the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700 MHz)		3 dBi
Optus 4G+ (700 MHz)		3 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700 MHz)		3 dBi
Telstra Regional 5G (850 MHz)		3 dBi
Vodafone 4G+ (850 MHz)* *Please check Vodafone Coverage Map		3 dBi
Optus Regional 5G (900 MHz)		3 dBi
Vodafone Regional 5G (900 MHz)		3 dBi
Telstra/Optus/Voda 4G (1800 MHz)		4.5 dBi
LTE Bands 2, 25, 35-37, 39 (1900 MHz)		4.5 dBi
LTE Bands 1, 33, 34 (2100 MHz)		4.5 dBi
All Carriers - Urban/Metro 3G (2100 MHz)		4.5 dBi
Optus 4G TDD (2300 MHz)		4.5 dBi
LTE-TDD Bands 40 (2300 MHz)		4.5 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		4.5 dBi
LTE Band 41 (2500 MHz)		4.5 dBi
LTE Bands 7, 38 (2600 MHz)		4.5 dBi
Telstra 4GX Band 7 (2600 MHz)		4.5 dBi
5G Services (3500MHz)		5dBi

Electrical Specifications

• Frequency Range: 617-9600MHz, 1350-2700MHz, 3300-4200MHz & 4900-6200MHz

• Input Impedance: 50 Ω

• VSWR: <1.8:1

• Polarisation: Vertical

• Linear Vertical Beamwidth: See Specification Sheet

• Radiation: Omnidirectional

• Maximum Power: 50 Watts

Mechanical/Environmental Specifications

• Construction: White ABS radome

• Cable: 300 mm

• Input Connector: 1x N Female Connector

• Wind Rating: N/A

• Temperature: -30 °C to +55 °C

• Weight: 0.6 kg

• Dimensions: 55 x 208 mm (H x Ø)

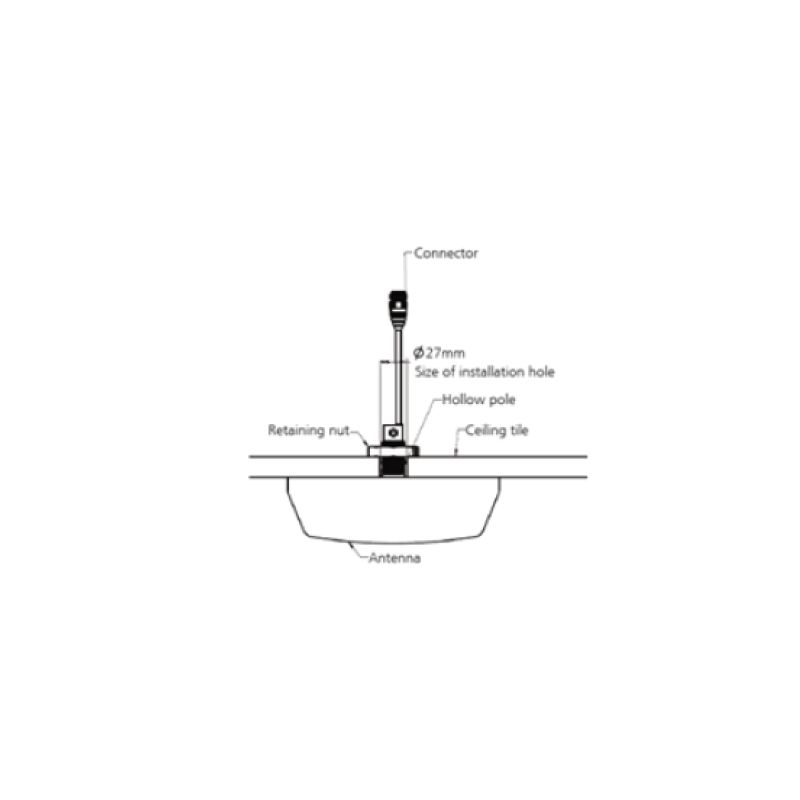

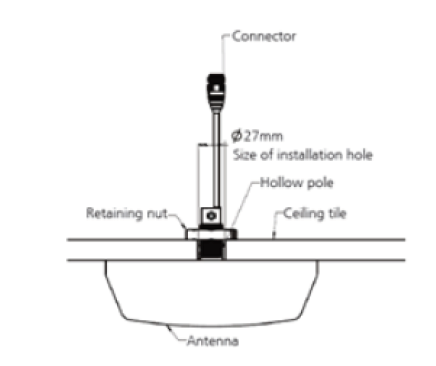

• Mounting: Ceiling

Read More

• Specification Sheet
