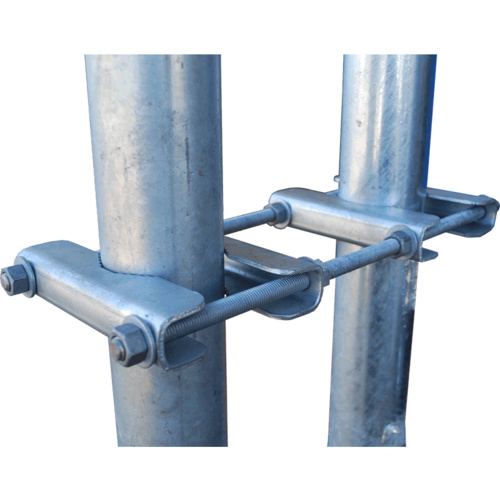

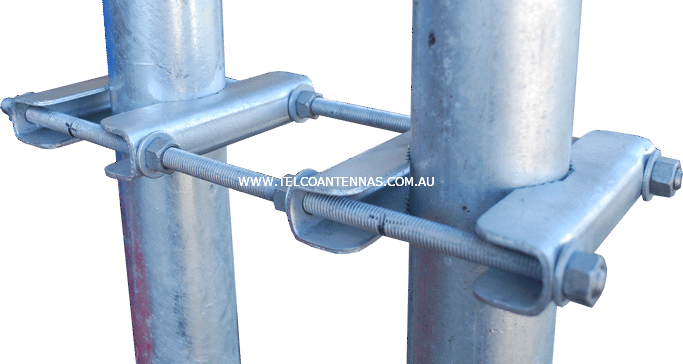

Telco Galvanised Parallel Clamp Antenna Bracket



Key Features



  • Suits most collinear antennas

  • For masts 40mm-114mm in diameter

  • Heavy duty Galvaised clamp Grade 235 Steel

  • Parallel 180 degree mounting only.

  • M12 rod Grade 8.8 steel



Usage



  • Using the wrong clamp can lead to a range of issues, the most simple of which is antenna misalignment due to a slipping clamp

  • In extreme cases, the boom of the antenna can break due to increased stresses induced by the constant antenna vibration on a localised point from an inappropriate clamp

  • Selecting the correct antenna mount will ensure your antenna maintains its position for many years to come.



Mechanical Specifications



  • Construction: Galvanised steel components

  • Boom Diameter: 40mm-114mm diameter

  • Mast Diameter: 40mm-114mm diameter

  • Mounting Orientation: Parallel 180 degrees.



Please contact our sales team for expected lead times for masts and towers.





(TF-MA-PCB)

SKU TF-MA-PCB
Brand Telco Antennas
Shipping Weight 3.0000kg
Shipping Width 0.100m
Shipping Height 0.400m
Shipping Length 0.350m
Shipping Cubic 0.014000000m3
