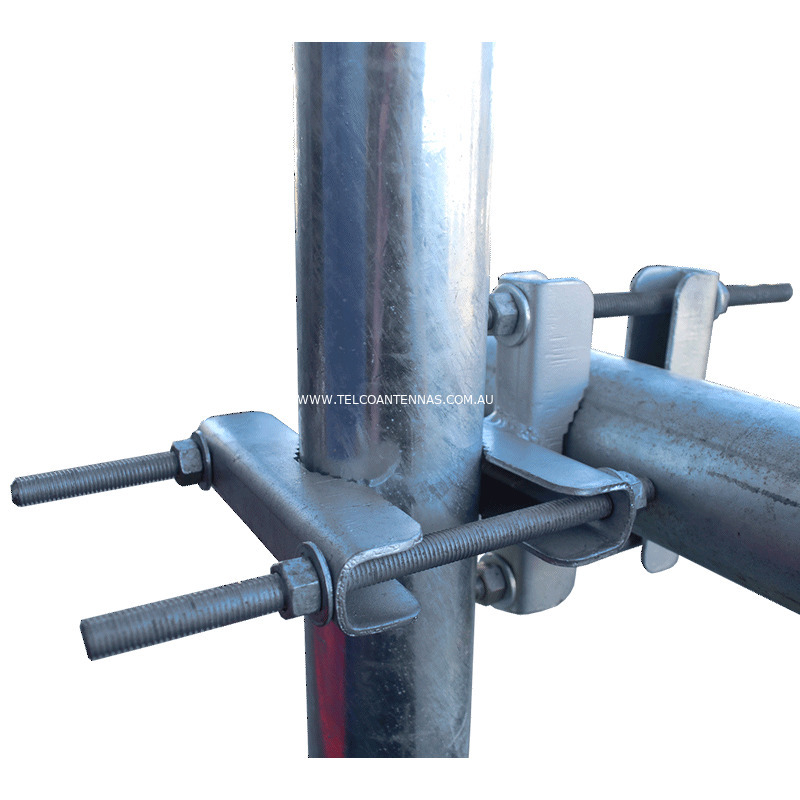

Telco Galvanised Right Angle Clamp Antenna Bracket



Key Features



  • Suits large Yagi or sidemount dipole antennas

  • For masts 40mm-114mm in diameter

  • Heavy duty clamp

  • 90 degree mounting only.



Usage



  • Mounting Yagi antennas is a relatively straight forward exercise, clamp it on, screw the connectors together and walk away smiling!

  • Suitable for all large Yagi and sidemount dipole antennas with a boom 4mm - 114mm in diameter

  • Selecting the correct antenna mount will ensure your antenna maintains its position for many years to come.



A heads up!



  • Using the wrong clamp or not using a bracing kit can lead to antenna failure and costly network downtime

  • Using the wrong clamp can lead to a range of issues, the most simple is antenna misalignment due to a slipping clamp

  • In extreme cases, the boom of the antenna can break due to increased stresses induced by the constant antenna vibration on a localised point from using an inappropriate clamp.



Mechanical Specifications



  • Construction: Galvanised steel components

  • Boom Diameter: 4mm-75mm diameter

  • Mast Diameter: 4mm-114mm diameter

  • Mounting Orientation: Right-Angle 90 degree.


Please contact our sales team for expected lead times for masts and towers.









(TF-MA-RACB)

SKU TF-MA-RACB
Brand Telco Antennas
Shipping Weight 2.2000kg
Shipping Width 0.160m
Shipping Height 0.190m
Shipping Length 0.160m
Shipping Cubic 0.004864000m3
