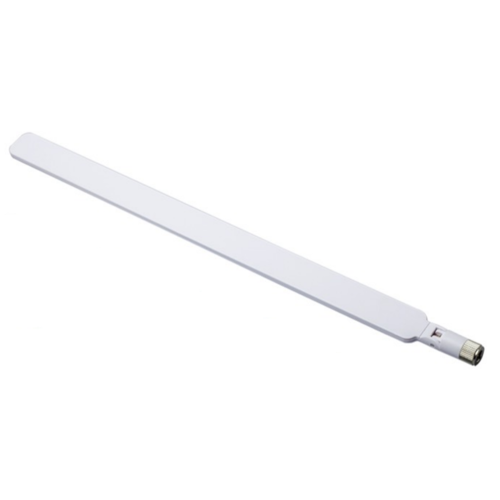

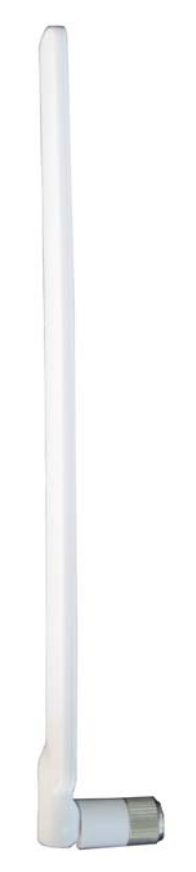

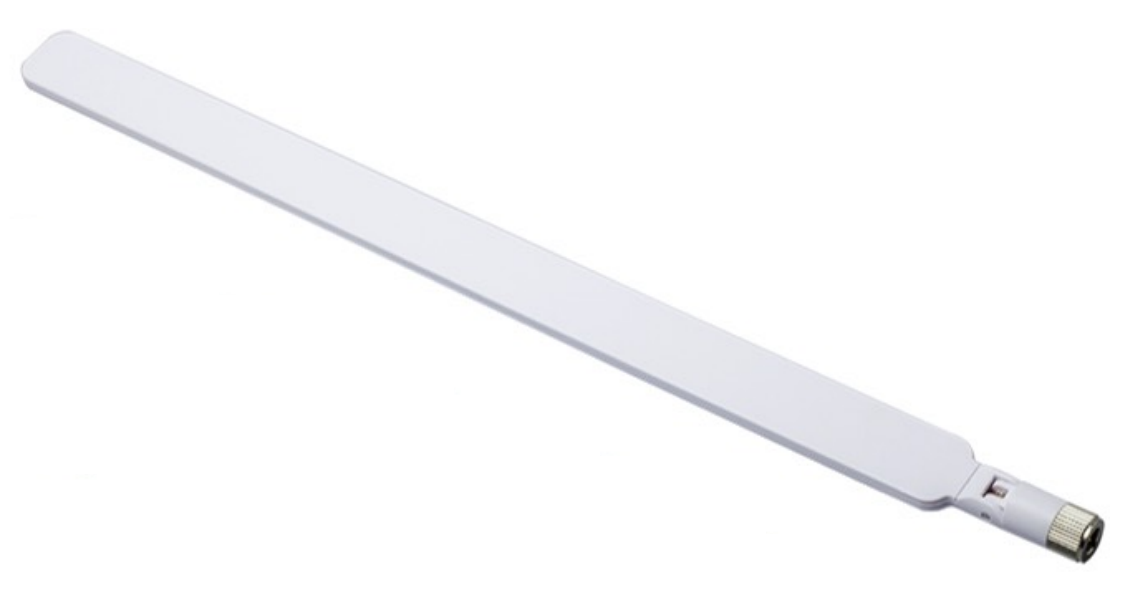

Telco High Gain LTE Paddle Antenna 700-960MHz/1710-2690MHz SL10653R



Key Features



  • Model: SL10653R

  • SMA Male connector.



Usage



  • This antenna is a high gain, high performance LTE terminal antenna, ideal for mass fleet or M2M/IoT rollouts, or for use when the deployment will be in an area with poor signal strength

  • Indoor or outdoor use

  • Please contact our sales team for quantity pricing.



Specifications / Frequency



Network Compatibility

Yes/No

LTE 700MHz
compatible
LTE 800MHz
compatible
3G 850MHz
compatible
LTE 900MHz
compatible
LTE 1700MHz
compatible
LTE 1800MHz
compatible
LTE 1900MHz
compatible
LTE 2100MHz
compatible
LTE 2300MHz
compatible
LTE 2600MHz
compatible



Electrical Specifications



  • Frequency Range: 700-960MHz/1710-2690Hz

  • VSWR 700-960MHz: <= 4.5dBi

  • VSWR 1710-2690: <= 3.0dBi

  • Input Impedance: 50Ω Gain (Peak): > 3.0dBi

  • Polarisation: Vertical



Mechanical/Environmental Specifications



  • Connector: SMA Male

  • Temperature: -40°C +85°C

  • Weight: 34g

  • Dimensions (mm): 235 x 21 x 5.4

  • Antenna Colour: White



Read More





(SL10653R)

SKU SL10653R
Brand Telco Antennas
Shipping Width 0.050m
Shipping Height 0.050m
