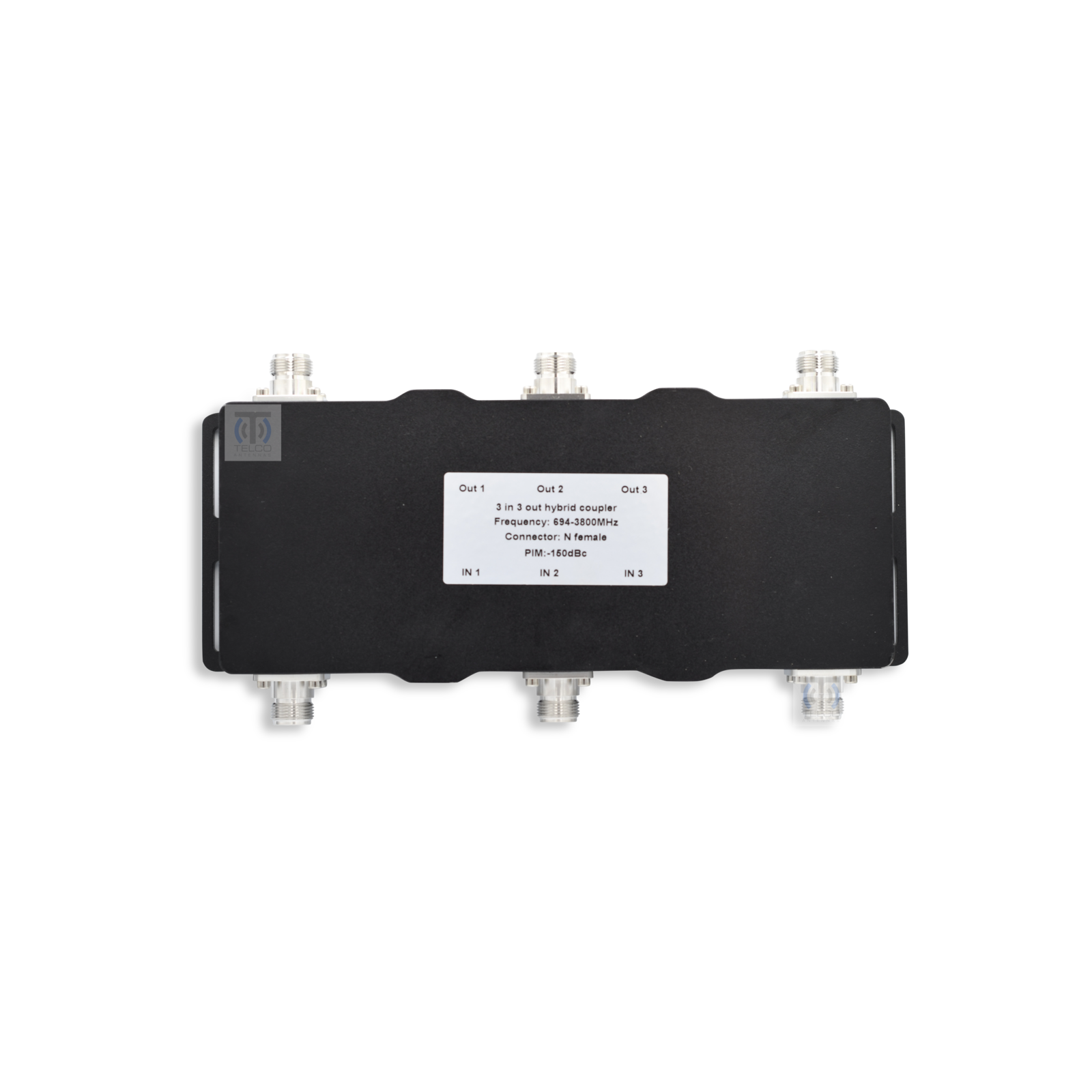

Telco Hybrid Coupler - N Female - 3x3 Ports - 694-3800MHz



Key Features



  • Broadband 694-3800MHz covering 3G & 4G Cellular Bands

  • Low Insertion Loss

  • High isolation Across Full Bandwidth >23dB

  • N Female Connectors

  • Environmental IP65 rating

  • Manufactured to a low PIM < -150dBc.



Usage



  • The 3x3 Port Hybrid Coupler covers Cellular Bands from 694-3800MHz with a low passive inter-modulation, high peak instantaneous power and high environmental IP rating

  • Typically used to combine in-band carriers or carriers across multiple bands to be fed into antenna feeders or in-building leaky feeder or in-building Distributed Antenna Systems (DAS)

  • Designed to IP65, the Hybrid Coupler can be used in both indoor and outdoor applications.



Specifications / Frequency



Electrical Specifications



  • Frequency: 694-3800MHz

  • Nominal Impedance: 50 Ω

  • VSWR: ≤1.3

  • Insertion Loss: 5.2±1.8dB

  • Isolation: >21 dB

  • Average Power: 300W

  • Watts PIM IMD (3rd 2x 43 dBm): < -150 dBc



Environmental/Mechanical Specifications



  • Construction: Black painted aluminium

  • Connectors: 6 x N Female

  • Operating temperature: -35 °C to +65 °C

  • Dimensions: 265 x 99 x 44mm (L x W x H) (excludes connectors)

  • Weight: 1.2kg

  • Environmental Protection: IP65
