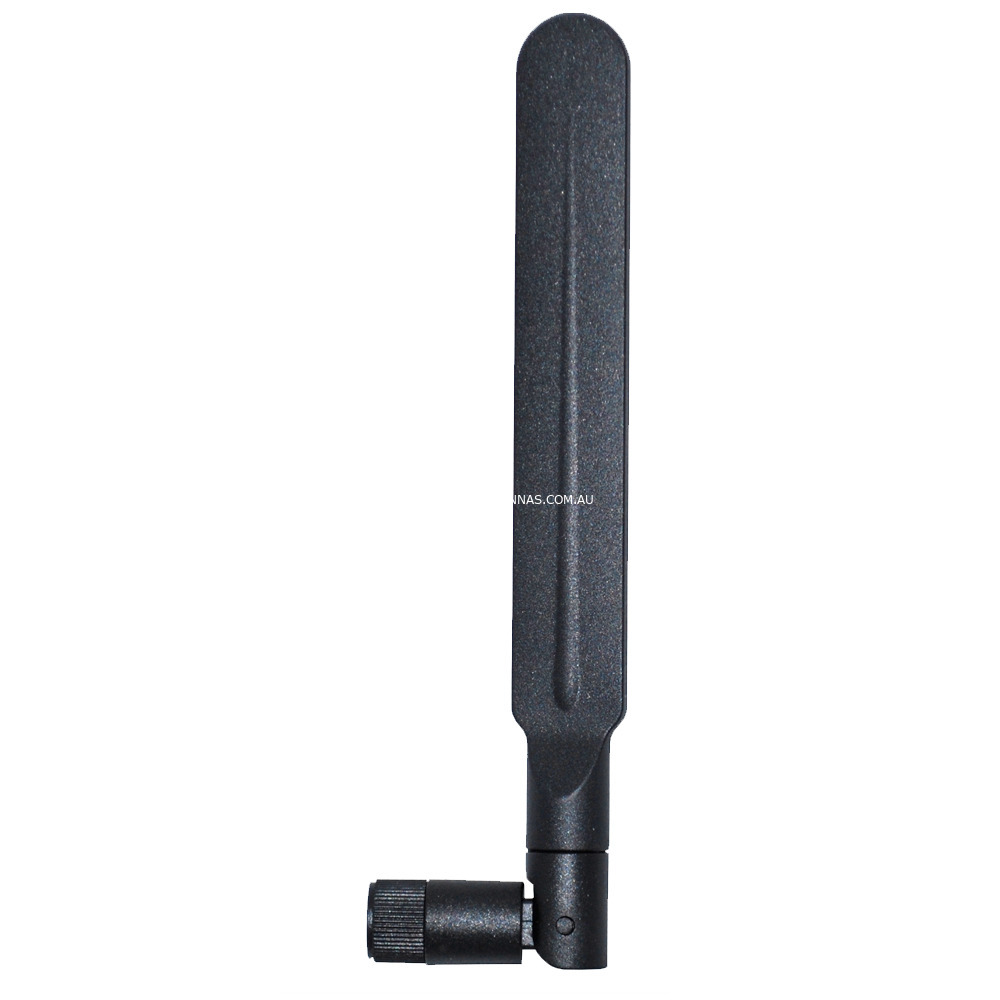

Telco 2dBi 3G+4G+4GX Hinged Antenna - 700-2700MHz

Key Features

• Hinged right angle with integrated SMA male connector

• Wideband performance across standard cellular bands

• High quality ABS construction.

Usage

• Having a durable, low profile and very low visual impact, this antenna is great for terminal installations on a range of industrial, electronic, and automotive radio hardware

• This model is a cost effective antenna for mass deployment in M2M and IoT applications

• For applications requiring high electrical efficiency - please see Taoglas TG.30 Apex

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		1.34 dBi
Optus 4G+ (700MHz)		1.33 dBi
LTE Bands 12-14, 17, 28, 29, 44 (700MHz)		1.33 dBi
Telstra Next-G™ (850MHz)		2.44 dBi
Vodafone 4G+ (850MHz)		1.55 dBi
Optus Regional 3G (900MHz)		2.93 dBi
Vodafone Regional 3G (900MHz)		2.63 dBi
LPWAN/ISM (915MHz)		2.63 dBi
Telstra/Optus/Voda 4G (1800MHz)		3.43 dBi
LTE Bands 2, 25, 35-37, 39 (1900MHz)		3.99 dBi
LTE Bands 1, 33, 34 (2100MHz)		2.10 dBi
All Carriers - Urban/Metro 3G (2100MHz)		2.10 dBi
Optus/Vivid Wireless 4G (2300 MHz)		2.0 dBi
LTE Bands 30, 40 (2300 MHz)		2.0 dBi
802.11 b/g/n/ac WiFi (2400 MHz)		2.0 dBi
LTE Band 41 (2500 MHz)		2.0 dBi
LTE Bands 7, 38 (2600 MHz)		2.0 dBi
Telstra 4GX (2600 MHz)		2.0 dBi

Electrical Specifications

• Frequency Range: 698-960MHz / 1710-2700 MHz

• Input Impedance: 50Ω

• VSWR: <2.5:1

• Polarisation: Vertical

• Horizontal Beamwidth: 24°

• Radiation: Omnidirectional

• Maximum Power: 10W

 Mechanical/Environmental Specifications

• Construction: ABS Plastic

• Connector: Integrated SMA Male

• Temperature: -40°C +60°C

• Humidity: 5-95%

• Weight: 23.5g

• Dimensions: 172 x 13mm (L x ø)
