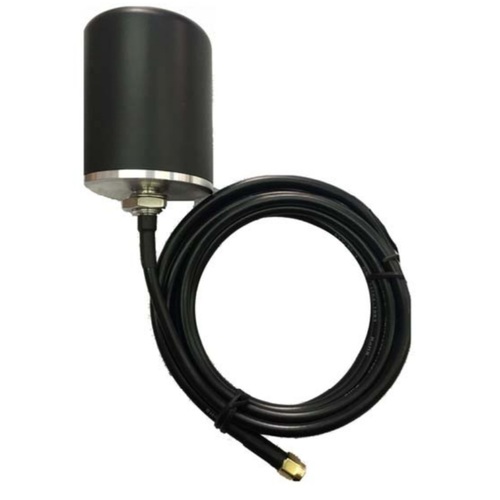

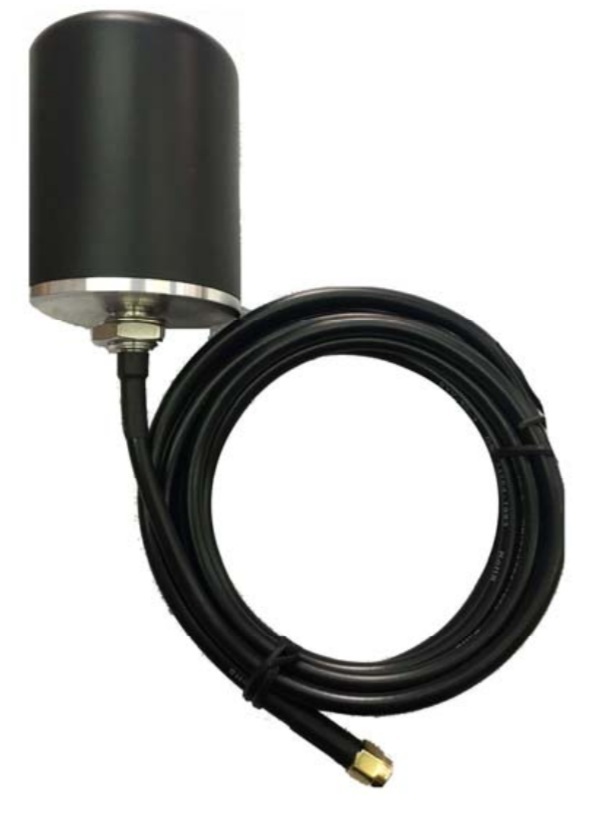

Telco LTE Antenna 700-2800MHz



Key Features



  • 1.5 Metre Cable

  • 8mm Stud Mount.



Usage



  • The Telco Low Profile antenna is a high performance steel thread-mount wideband 3G/4G/WiFi antenna for external and internal use

  • Omni-directional high gain across all bands ensures constant reception and transmission

  • Durable UV resistant plastic housing is discrete and resistant to vandalism

  • At only 60 mm height it complies with the latest EU height restrictions directives for roof-mounted objects

  • This antenna is mounted on metal and plastic structures and is locked from the inside of the structure by a nut

  • Please contact our sales team for quantity pricing.



Specifications / Frequency



Network Compatibility

Yes/No

LTE 700MHz
compatible
LTE 800MHz
compatible
3G 850MHz
compatible
LTE 900MHz
compatible
LTE 1700MHz
compatible
LTE 1800MHz
compatible
LTE 1900MHz
compatible
LTE 2100MHz
compatible
LTE 2300MHz
compatible
LTE 2600MHz
compatible
LTE 2800MHz
compatible



Electrical Specifications



  • Frequency Range: 698~960/1710~2800MHz

  • Input Impedance: 50Ω

  • VSWR: <3.5/3

  • Polarisation: Vertical

  • Maximum Input

  • Power: 10W

  • Maximum Gain: 1/3 dBi



Mechanical/Environmental Specifications



  • Construction: UV stabilised Black Rubber

  • Connector: SMA Male

  • Cable Length: 2300mm+/- 50mm (SYV-50-3)

  • Radome Material: Plastic

  • Temperature: -40°C +85°C

  • Weight: 0.10kg



Read More





(TA-LP7-27-SMA)

SKU TA-LP7-27-SMA
Brand Telco Antennas
Shipping Weight 0.8000kg
Shipping Width 0.125m
Shipping Height 0.080m
Shipping Length 0.125m
Shipping Cubic 0.001250000m3
