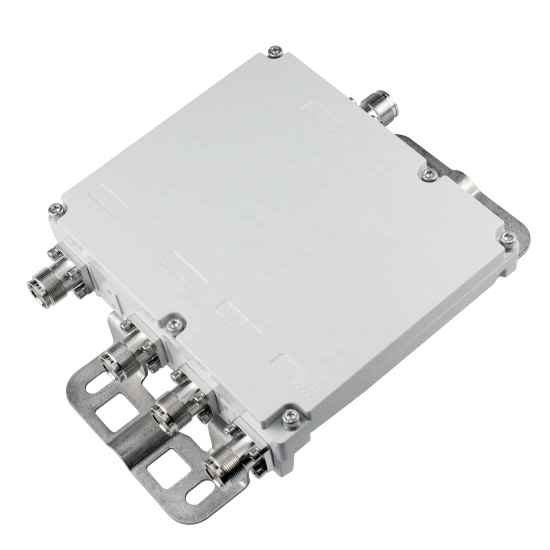

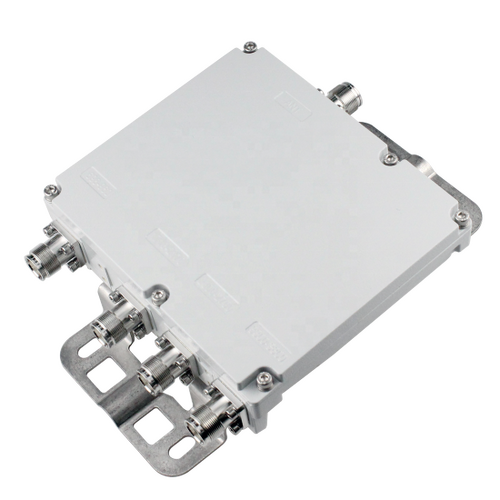

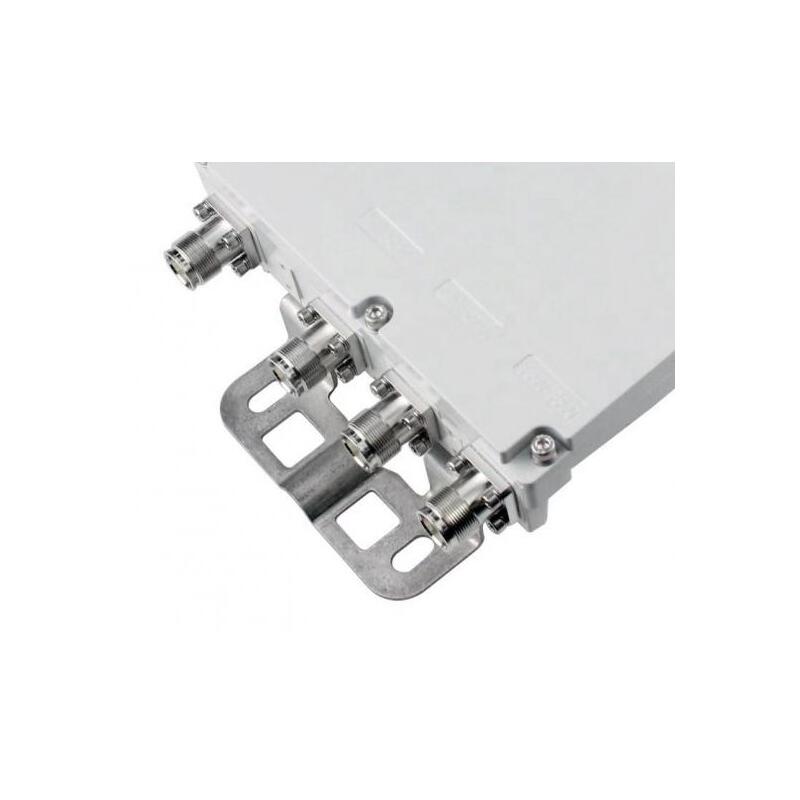

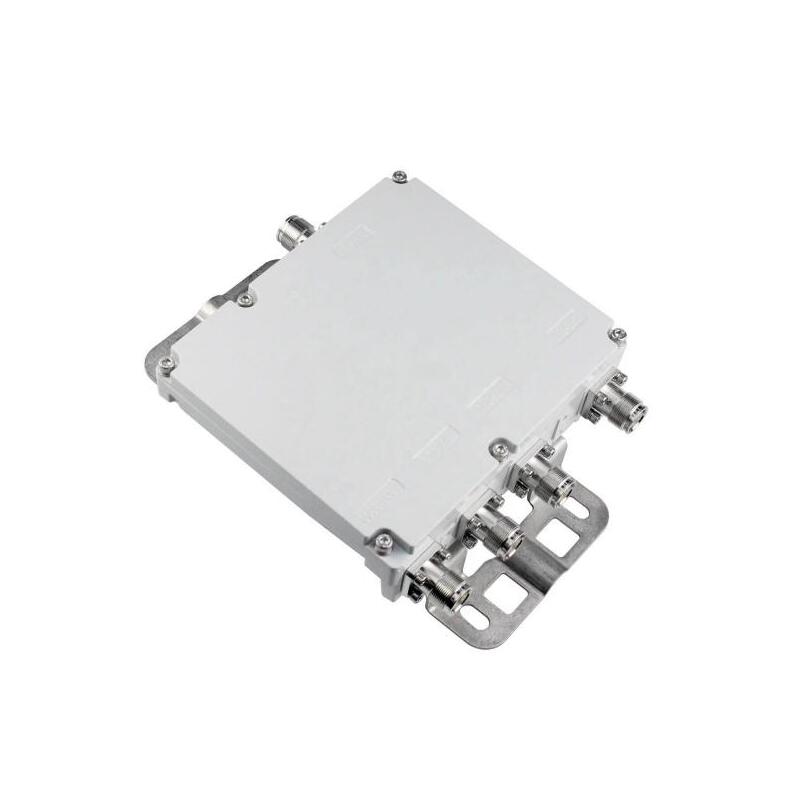

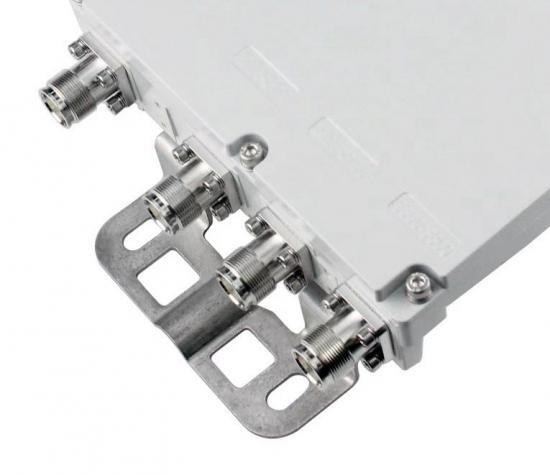

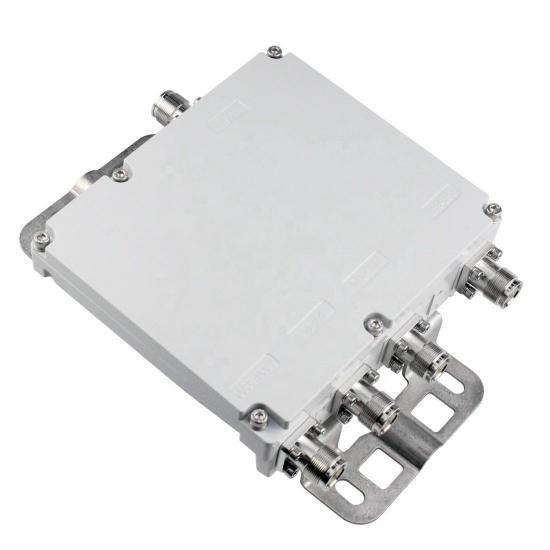

Telco Quadplexer Combiner - 4.3-10 Female - 1x4 Ports - 698-3800MHz



Key Features

  • Broadband 698-3800MHz covering 4G & 5G Cellular Bands

  • Low Insertion Loss

  • High isolation Across Full Bandwidth >50dB

  • 4.3-10 Female Connectors

  • Environmental IP65 rating

  • Manufactured to a low PIM < -150dBc.



Usage



  • The Quadplexer Combiners are designed to efficiently Combine or Split specific Frequency Bands across the designated Ports.

  • When utilising the Combiner side of Quadplexer we are able to install multiple Higher Gain Antennas with low Frequency Spreads in together for increased Signal Gain.

  • The Quadplexer has the ability to Split off the Frequencies from a DAS Repeater so specific Bands can cater for different Areas.

  • Designed to IP65, the Hybrid Coupler can be used in both indoor and outdoor applications.



Specifications / Frequency

Frequency CH1: 698 to 960MHz
CH2: 1710 to 2170MHz
CH3: 2300 to 2690MHz
CH4: 3300 to 3800MHz
VSWR  ≤1.25
Insertion loss  ≤0.5dB
Port Isolation  ≥50dB
Power (Average) 300W
Inter-modulation (3 rd order)  ≤-155dBc@2*43dBm
Impedance  50 ohm
Operating Temperature Range  -20°C to +55°C
Storage Temperature Range  -35°C to +85°C
Relative Humidity  5% - 95%
Applications  IP65 (Indoor & Outdoor)
Connectors Type 4.3-10 Female
Colour Light Gray
Net Weight  TBA
Outer Dimension(mm)  195*170*50mm (Connectors & Mounting Bracket Excluded)
Packing 1Pcs in a box
Mounting With Hose Clamp & Mounting Brackets
