Telco WildCat Cat6 Outdoor F/UTP Shielded Ethernet Cable Spool - 100m
ISO/IEC 11801 F/UTP
SKU: C6-UV-100

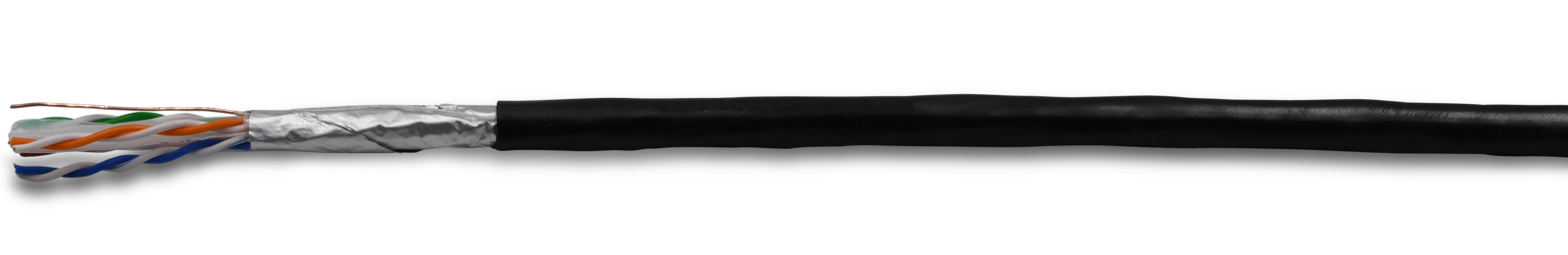

Telco WildCat Cat6 Outdoor F/UTP Shielded Ethernet Cable Spool - 100m
-
We developed the Wildcat series specifically for outdoor microwave and point to point/multipoint networking
-
It is the only compliant shielded Cat6 outdoor-rated cable available in Australia.
Key Features
-

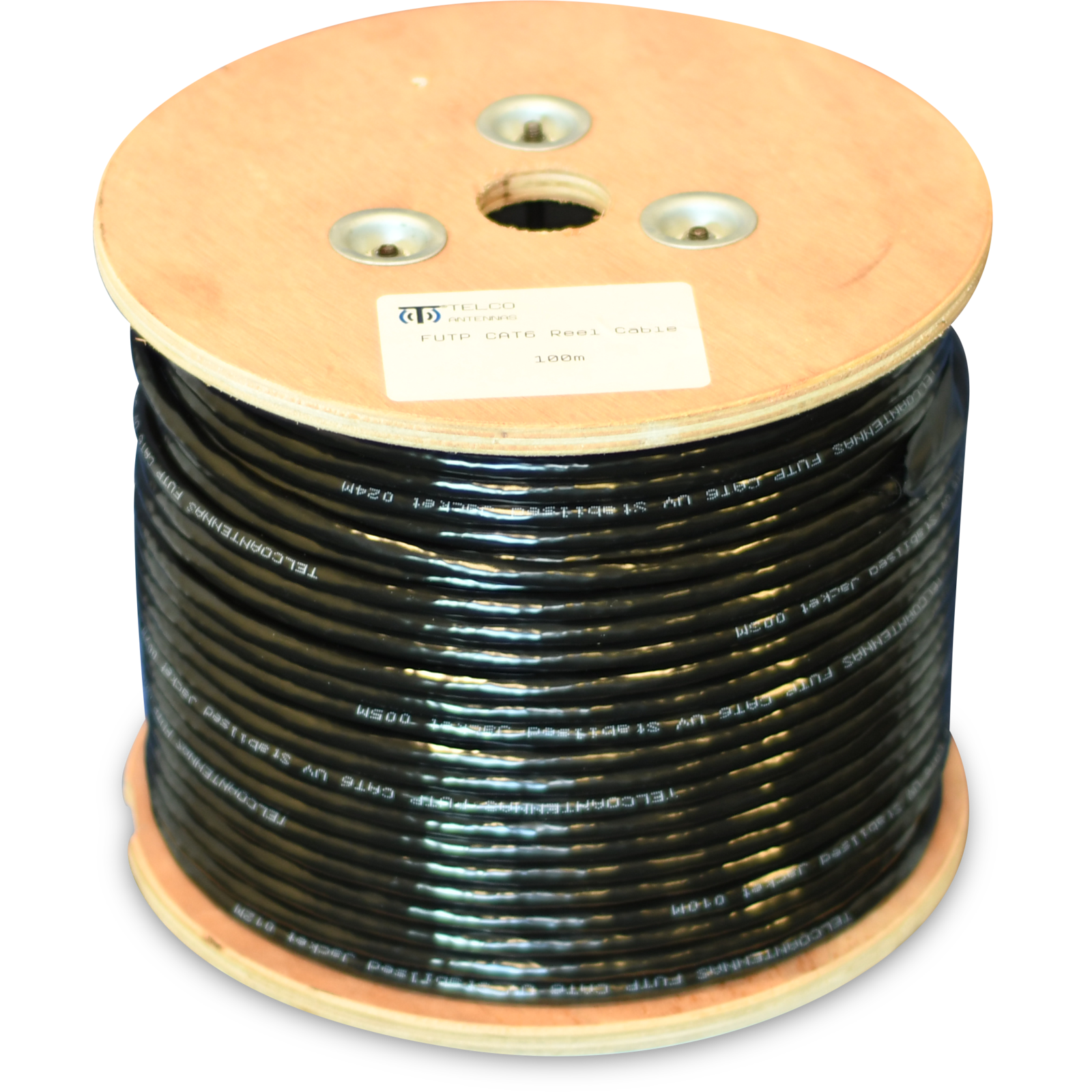

100m cable on wooden spool
-
Industrial grade WISP cable
-
Tough, thick black UV-stable outer jacket
-
1000BASE-T Certified Category 6
-

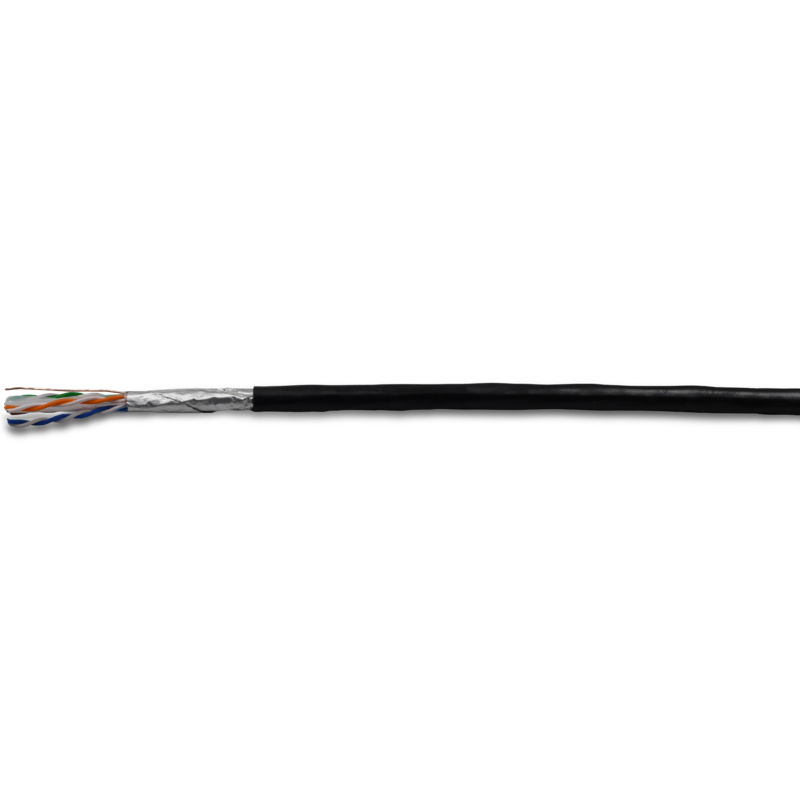

Level-1 F/UTP foil shielded twisted pair
-
Anti-Crosstalk Divider
-
ESD drain for outdoor installations
-
Reduced EMI crosstalk and improved SNR.
Usage
-
Protect your network from electronic static discharge, reduce system noise, and improve long distance performance with our WildCat Category 6 F/UTP Ethernet cables
-
Heavily shielded from EMI/ESD and sporting a thick outdoor jacket (7.4mm OD), this cable series is designed for installation in exposed and harsh environments, as well as electrically-noisy indoor environments
-
Wildcat Outdoor Cat6 cables are fully ACMA S008:2010 compliant and can be legally installed under your Open Cabling licence.
Mechanical Specifications |
|
Standards |
YD/T 1019-2013, TIA-568-C.2 |
Cable Specifications |
4x2x0.56mm |
Conductor Material |
BC |
Conductor Diameter |
0.56mm (±0.005mm) |
Insulation Material |
HDPE |
Insulation Diameter |
1.00mm (±0.03mm) |
Shielding Material |
ALP |
Drain Wire Material |
CCA |
Drain Wire Diameter |
0.5mm |
Jacket Material |
PE |
Jacket Surface |
Smooth, Clean, Shiny |
Jacket Colour |
Black |
Jacket Thickness |
0.55mm (±0.05mm) |
Jacket Diameter |
6.3mm (±0.4mm) |
Electrical Specifications |
|
Minimum Single Bending Radius |
51mm |
1.0-100.0MHz Characteristic Impedance |
100±15 |
1.0-100.0MHz Delay Difference (20°C) |
<45ns/100m |
DC Resistance (20°C) |
7.00 |
Operating Temperature Range |
-20°C to +60°C |
(C6-UV-100)
SKU | C6-UV-100 |
Brand | Telco Antennas |
Shipping Weight | 9.0000kg |
Shipping Width | 0.350m |
Shipping Height | 0.140m |
Shipping Length | 0.350m |
Shipping Cubic | 0.017150000m3 |
