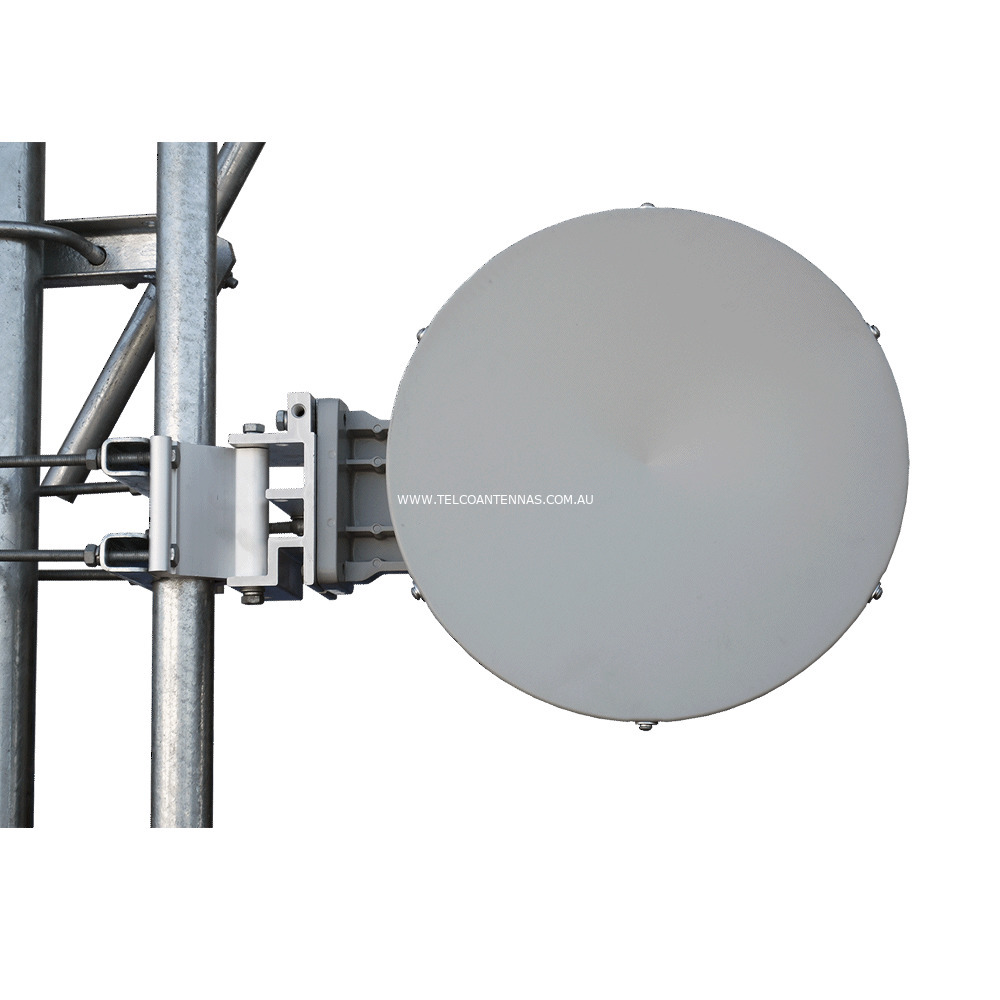

Telco XFIRE 23dBi Ultra High Performance Solid Dish - 5.25-5.85GHz

Key Features

• Dual-polarised antenna feed w/ high XPD

• ETSI Range 1 Class 2

• Carrier grade aluminium alloy construction

• Tiny 0.3m (1ft) single reflector dish

• Inbuilt ABS radome

• 15° fine az/el adjustment

• Extreme 44dB F/B ratio

• Critical backbone/backhaul

• Ideal for high noise metro and urban short-medium range links

• 5GHz PtP operation.

Usage

• This is an ultra high performance 0.3m (1ft) 5GHz microwave dish, designed for high capacity fixed radio systems requiring ETSI Class 2 (high interference potential) compliance

• Having an ultra tight V&H beamwidth and an unparalleled >44dB F/B ratio gives this antenna an incredible degree of noise immunity from nearby hostile interferers and collocated transmitters

• This deep-dish antenna is ideal for point-to-point communications in urban and metro environments where despite the short link distance data rates are poor due to the high 5GHz noisefloor

• The small 0.3m form factor makes the antenna perfect for installations requiring low wind-load or low visual impact while maintaining very high performance.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
UNII-2 5.25GHz - 5.35GHz		23.18dBi
UNII-2e 5.47GHz - 5.725GHz		23.64dBi
UNII-3 5.725GHz - 5.85GHz		24.05dBi

Electrical Specifications

• Frequency Range: 5250-5850MHz

• Input Impedance: 50Ω

• VSWR: <1.8:1

• Vertical Beamwidth: 9° (± 1°)

• Horizontal Beamwidth: 9° (± 1°)

• Front to Back Ratio: >43dB

• Cross Polar Discrimination: >30dB

• Port Isolation: >35dB

• Compliance: ETSI EN 302 217 Range 1 Class 2

Mechanical/Environmental Specifications

• Construction: One-piece aluminium reflector, ABS radome

• Cable: None

• Connector: 2x N-Type Female (white bronze low PIM)

• Wind Rating (Operational): 162km/hr

• Wind Rating (Survival): 250km/hr

• Ice Load: 25.4mm

• Temperature: -45°C +75°C

• Weight: 8.2kg

• Dimensions: 362 x 305 x 152.08mm (L x H x D)

• Mounting: 51-114mm (dia) pole

• Compliance: ETSI EN 302 217 Range 1 Class 2
