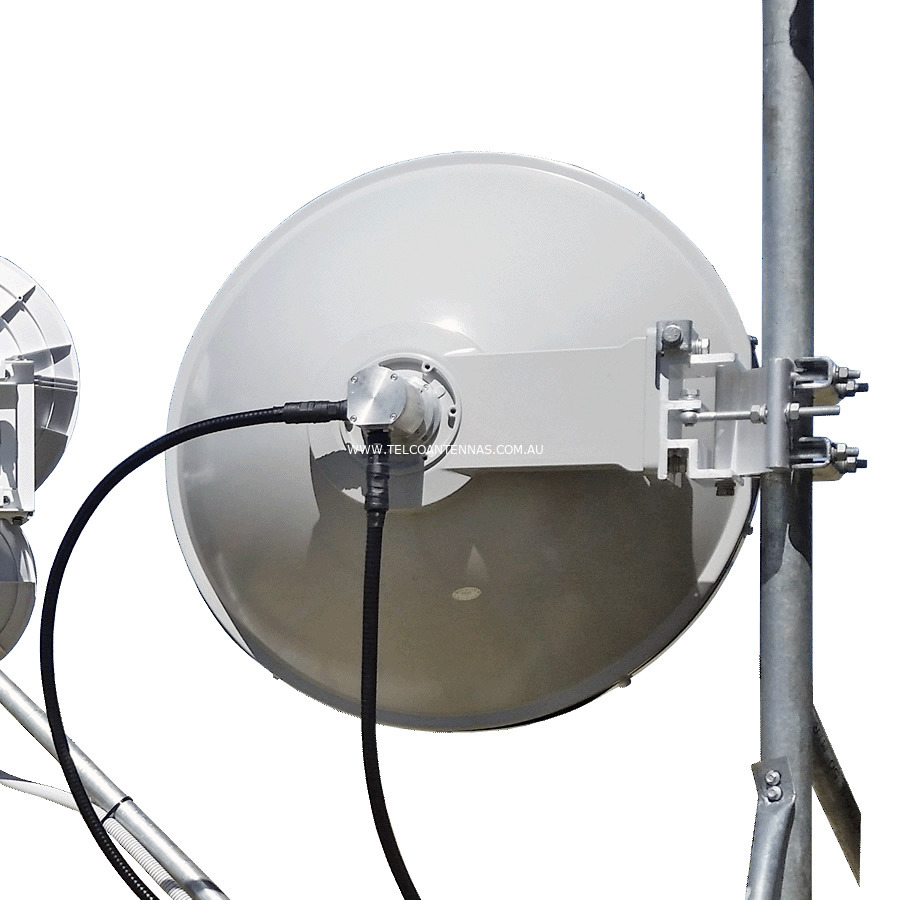

Telco XFIRE 28dBi Ultra High Performance Solid Dish - 5.25 to 5.85 GHz

Key Features

• Dual-polarised antenna feed w/ high XPD

• ETSI Range 1 Class 2

• Carrier grade aluminium alloy construction

• 0.6 m (2 ft) single reflector dish

• Inbuilt ABS radome

• 15° fine az/el adjustment

• Extreme 48 dB F/B ratio

• Critical backbone/backhaul

• Ideal for high noise environments, long range links

• 5GHz PtP operation.

Usage

• This is an ultra high performance 0.6 m (2 ft) 5 GHz microwave dish, designed for high capacity fixed radio systems requiring ETSI Class 2 (high interference potential) compliance

• Having an ultra tight V&H beamwidth and an unparalleled >48 dB F/B ratio gives this antenna an incredible degree of noise immunity from nearby hostile interferers and collocated transmitters

• While in short range communications, smaller form-factor equipment can be deployed, this can leave the link susceptible to interference and reduced throughput due to link adaptation

• Another concern is causing channel pollution (observed as a rise in noisefloor at other APs/stations), particularly when the transmitter is tower or rooftop mounted.

Specifications / Frequency

Network Compatibility	Yes/No	Gain
UNII-2 5.25GHz - 5.35GHz		27.4 dBi
UNII-2e 5.47GHz - 5.725GHz		27.9 dBi
UNII-3 5.725GHz - 5.85GHz		28.4 dBi

Electrical Specifications

• Frequency Range: 5250 to 5850 MHz

• Input Impedance: 50 Ω

• VSWR: <1.5:1

• Vertical Beamwidth: 6° (± 1°)

• Horizontal Beamwidth: 6° (± 1°)

• Front to Back Ratio: >48 dB

• Cross Polar Discrimination: >30 dB

• Inter Port Isolation: >35 dB

• Compliance: ETSI EN 302 217 Range 1 Class 2

Mechanical/Environmental Specifications

• Construction: One-piece aluminium reflector, ABS radome, galvanised U-bolts

• Cable: None

• Input Connector: 2x Integrated N-Type Female (white bronze low PIM)

• Wind Rating (Operational): 162 km/hr

• Wind Rating (Survival): 250 km/hr

• Ice Load: 25.4 mm

• Temperature: -45 °C +75 °C

• Weight: 13.9 kg

• Dimensions: 755.8 x 672.6 x 380.88 mm (L x H x D)

• Mounting: 51-114 mm (dia) pole

• Compliance: ETSI EN 302 217 Range 1 Class 2
