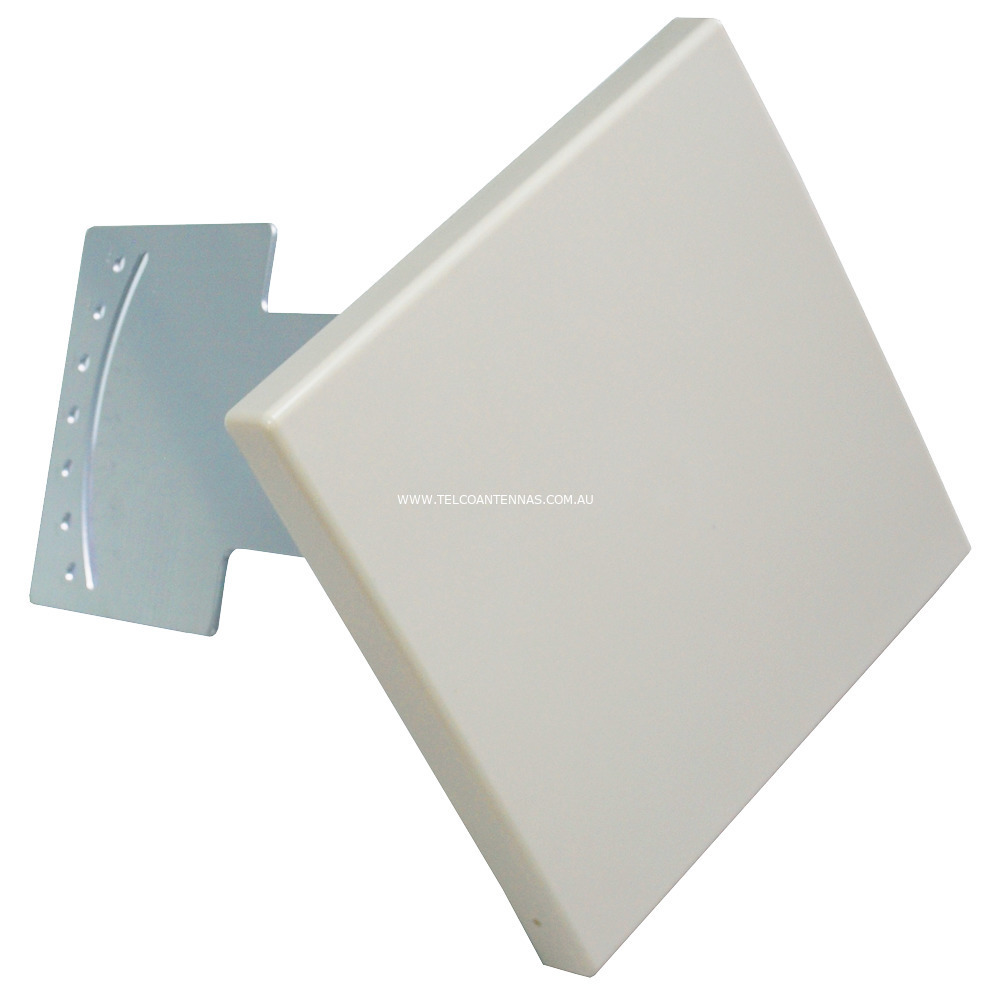

Telco XPOL MIMO 19dBi 3GHz Panel Antenna - 3300-3800 MHz



Key Features



  • Dual-polarised antenna feed with high isolation

  • High gain, high F/B ratio

  • Two integrated N Female connectors

  • Supplied with mounting bracket

  • UV Stable ABS radome

  • Designed for 3.4GHz PtMP and 3.6GHz remote licence applications.



Usage



  • This heavy duty wideband panel antenna is an industrial grade 2x2 Dual Polarity MIMO antenna designed for 3.4 GHz point to multipoint wireless networks, and 3.6 GHz remote licence wireless applications such as LTE UE antennas in bands 22 and 42

  • With a modest 400 x 400 mm form factor this high performance antenna achieves 19dBi across the entire 3.3 to 3.8 GHz bandwidth.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
3.4GHz PtMP (3425-3575MHz)
compatible
18.5dBi
3.6GHz Remote Apparatus (3575-3700MHz)
compatible
19.0dBi
LTE Bands 22, 42
compatible
19.0dBi



Electrical Specifications



  • Frequency Range: 3300 to 3800 MHz

  • Input Impedance: 50Ω

  • VSWR: <1.7:1

  • Polarisation: V & H

  • Vertical Beamwidth: 16° (± 5°)

  • Horizontal Beamwidth: 16° (± 5°)

  • Front to Back Ratio: >30 dB

  • Inter-Port Isolation: >35 dB

  • PIM IMD (3rd Order): N/A

  • Radiation: Directional

  • Maximum Power: 100 Watts



Mechanical/Environmental Specifications



  • Construction: UV Protected ABS Radome, Anodised Tilt Bracket

  • Cable: none

  • Input Connector: 2x Integrated N-Type Female

  • Wind Rating: 198 km/hr

  • Temperature: -40 °C +65 °C

  • Weight: 2.8 kg

  • Dimensions: 400 x 400 x 22 mm (L x W x D)

  • Mounting: 40 to 60 mm Ø pole



Laboratory tested



  • This antenna has been laboratory tested in a certified 3D Anechoic Chamber.

  • All listed electrical specification and performance, is produced from real-world test data, and not the product of computer simulation.



Read more





(XPOL3300-3800-19)

SKU XPOL3300-3800-19
Brand Telco Antennas
Shipping Weight 2.8000kg
Shipping Width 0.400m
Shipping Height 0.220m
Shipping Length 0.400m
Shipping Cubic 0.035200000m3
