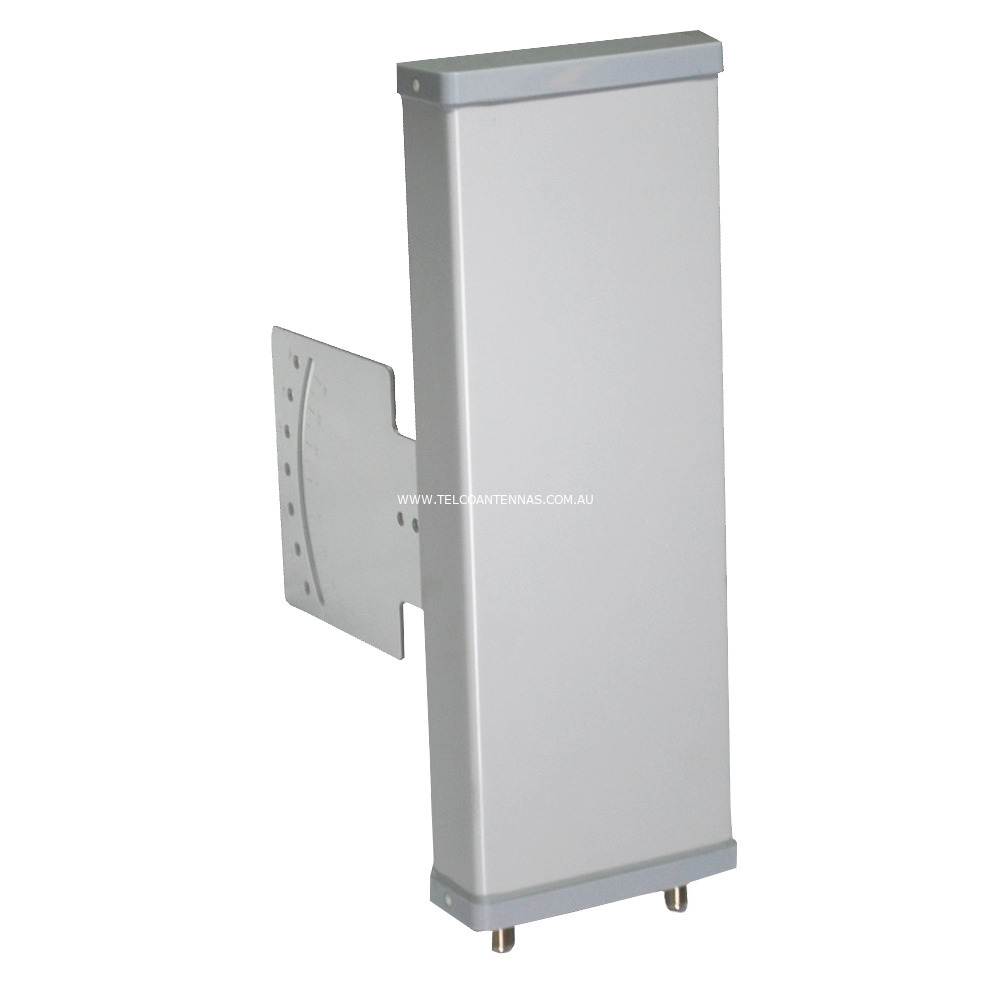

Telco XSECT 5GHz Dual Polarised Sector Antenna, 60°



Key Features



  • Industrial class base station antenna

  • 2X2 MIMO Cross Polarised

  • 60 degree sector, 16dBi gain

  • Covers entire UNII 5GHz

  • Designed for 5GHz broadcast applications.



Usage



  • Telco 5.1-5.9GHz sector antennas are an industrial grade cross polarised antenna series designed for 5GHz point to multipoint wireless networks

  • This antenna is ideally suited for 3-4 gang sectorised base station transmissions

  • The antennas carrier grade construction features a light colour PVC radome for durability and aesthetics

  • The included mounting system features a high quality aluminium mount for pole mounting applications.



Specifications / Frequency



Network Compatibility
Yes/No
Gain
UNII-1 5.15GHz - 5.25GHz
compatible
16.4dBi
UNII-2 5.25GHz - 5.35GHz
compatible
15.8dBi
UNII-2e 5.47GHz - 5.725GHz
compatible
15.7dBi
UNII-3 5.725GHz - 5.85GHz
compatible
16.0dBi



Electrical Specifications



  • Frequency Range: 5150-5850MHz

  • Impedance: 50Ω

  • Horizontal Beam Width: 60 ±8°

  • Vertical Beam Width: 8 ±2°

  • VSWR: <2.0:1

  • Polarisation: ±45

  • Front to Back Ratio: >25dB

  • Isolation Between Ports: >28dB



Mechanical/Environmental



  • Construction: PVC radome, aluminium radiators

  • Connector: 2x N Female

  • Cable: None

  • Weight: 1.5kg

  • Operating Temperature: -40°C~+80°C

  • Max Wind Speed: 55m/s

  • Dimensions: 420 × 135 × 45mm (L x W X D)



Read More





(XSECT-5800-16-60)

SKU XSECT-5800-16-60
Brand Telco Antennas
Shipping Weight 0.0450kg
Shipping Width 0.120m
Shipping Height 0.120m
Shipping Length 0.300m
Shipping Cubic 0.004320000m3
