Teltonika 4G Combo MuMiMo & GNSS Antenna - 2 in 1- PR1KCL28

(4 x Cellular & 1 GNSS)



Key Features



  • Suitable 4G & 5G Networks

  • Low profile 53mm height

  • IP65 Rated

  • M27 stud offers ease of installation in the field



Usage

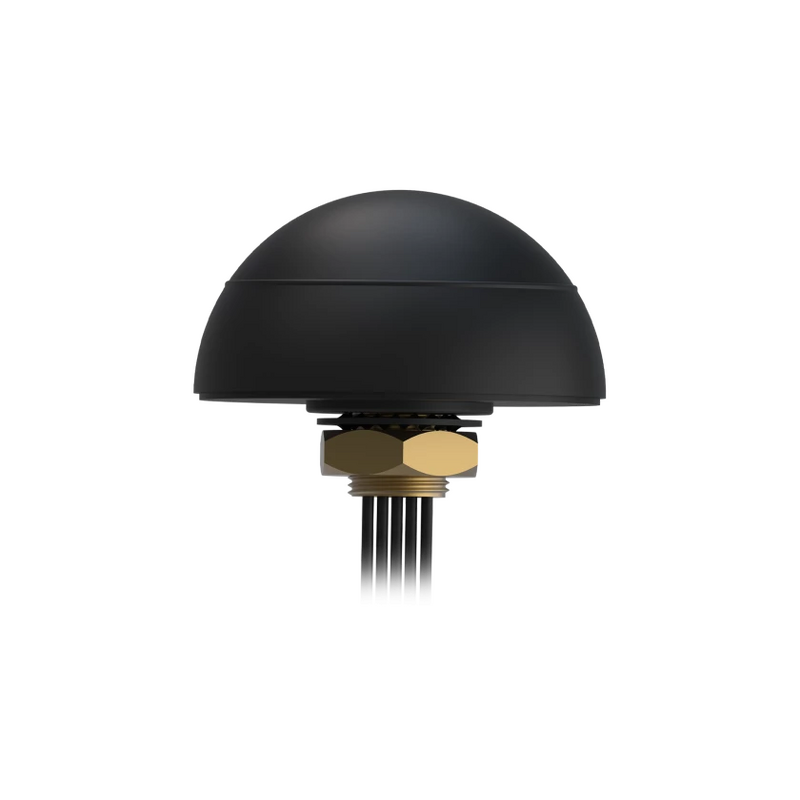

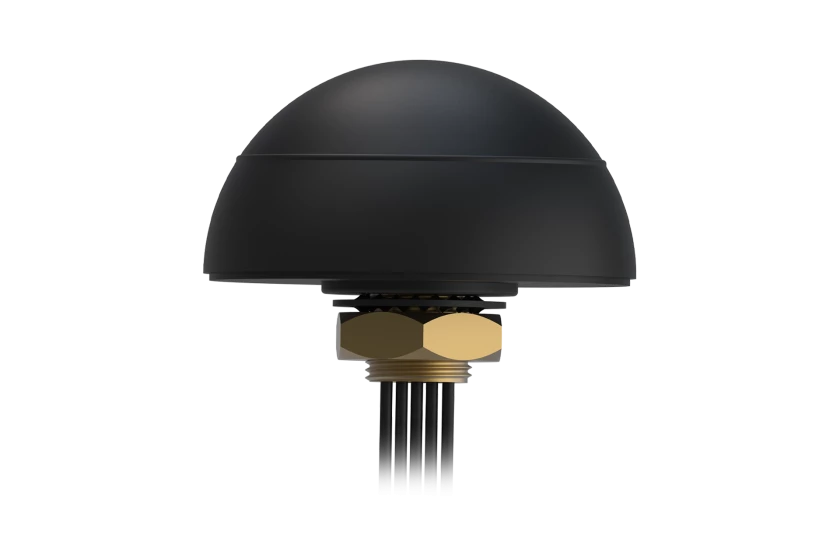

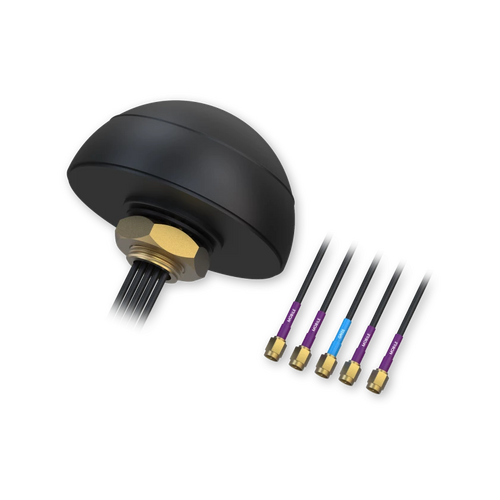

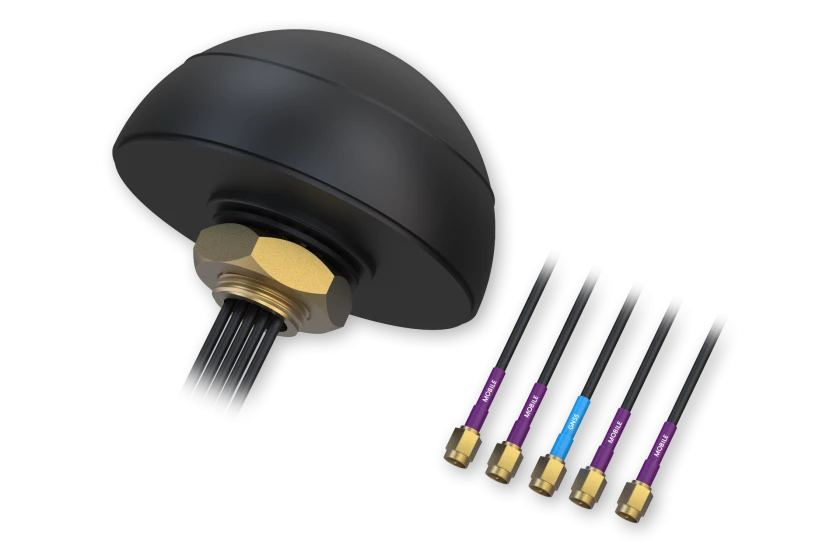

  • The PR1KCL28 incorporates 5 antennas in a single, ruggedised low profile housing.

  • With a MuMiMo 4x4 4G antenna covering all cellular bands which provides increase data speed.

  • Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

  • The PR1KCL28 also incorporates a GPS/GNSS for Monitoring Capbilities

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KC640 provides a robust, antenna that is durable



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
3dBi
Optus 4G+ (700MHz)
compatible
3dBi
Telstra Next-G™ (850MHz)
compatible
3dBi
Vodafone 4G+ (850MHz)
compatible
3dBi
Optus Regional 3G (900MHz)
compatible
3dBi
Vodafone Regional 3G (900MHz)
compatible
3dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
3dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
3dBi
Telstra Metro 4GX (2600MHz)
compatible
3dBi
 Metro 4GX (2600MHz) compatible 3dBi


Electrical Specifications



  • Cellular Frequency Range: 617-960MHz /1710-2690MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • Cellular VSWR: <3:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications

  • Construction: Black UV stable ABS

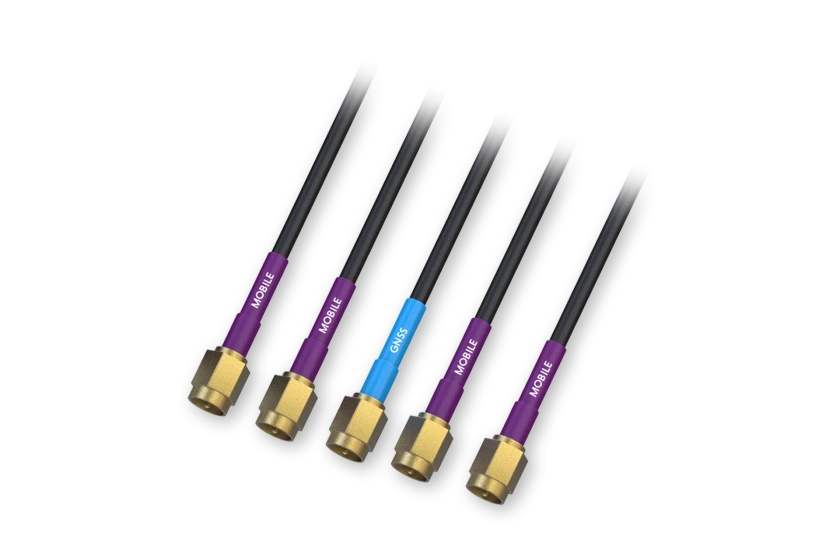

  • Cellular Cable: 3m RG174

  • Connector: SMA Male

  • GPS Cable: 3m RG174

  • Connector: SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 0.525kg

  • Dimensions:Ø 110.0 x 53.0 mm

  • Mounting: Panel Mount - Hole ø28 mm, panel thickness MAX 8 mm
