Teltonika 5G Combo MuMiMo Mobile/GNSS/WiFi Roof SMA Antenna - 7 in 1 - PR1KC640

(4 x Cellular & 2 x WiFi & 1 GNSS)



Key Features



  • Suitable for 3G and 4G & 5G Networks

  • Supports 2.4GHz & 5GHz WiFi Networks

  • Low profile 55mm height

  • IP65 Rated

  • M27 stud offers ease of installation in the field



Usage

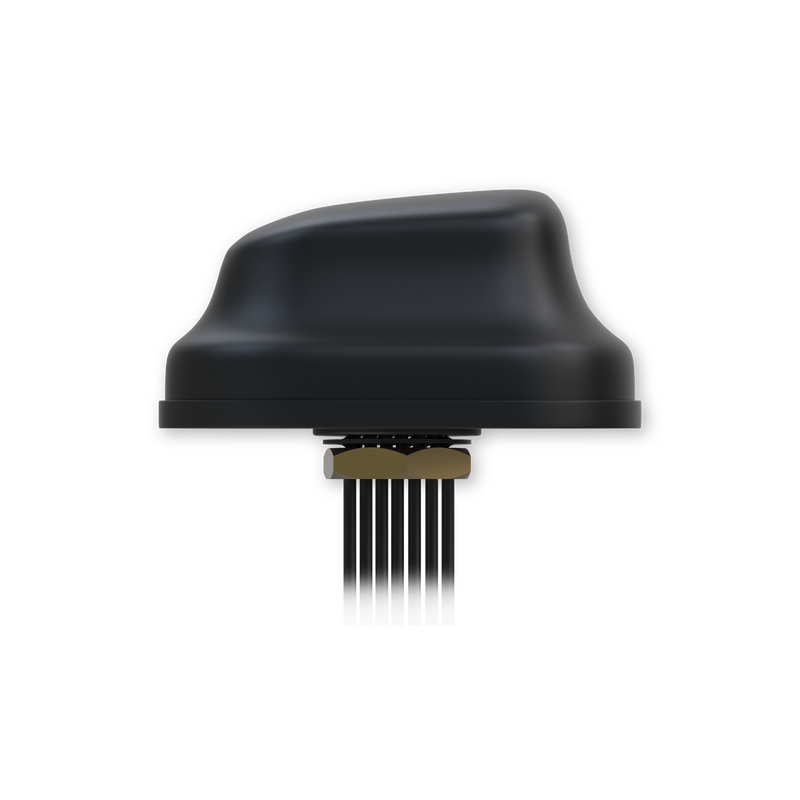

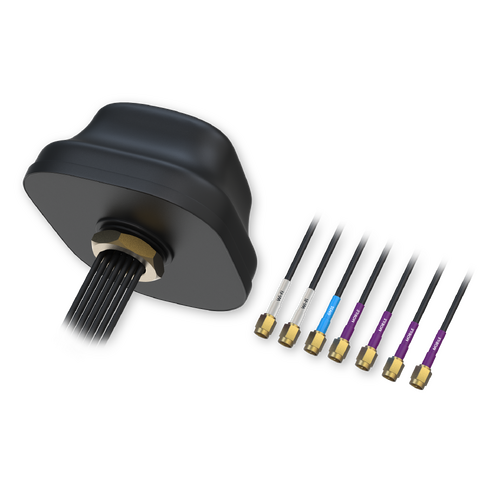

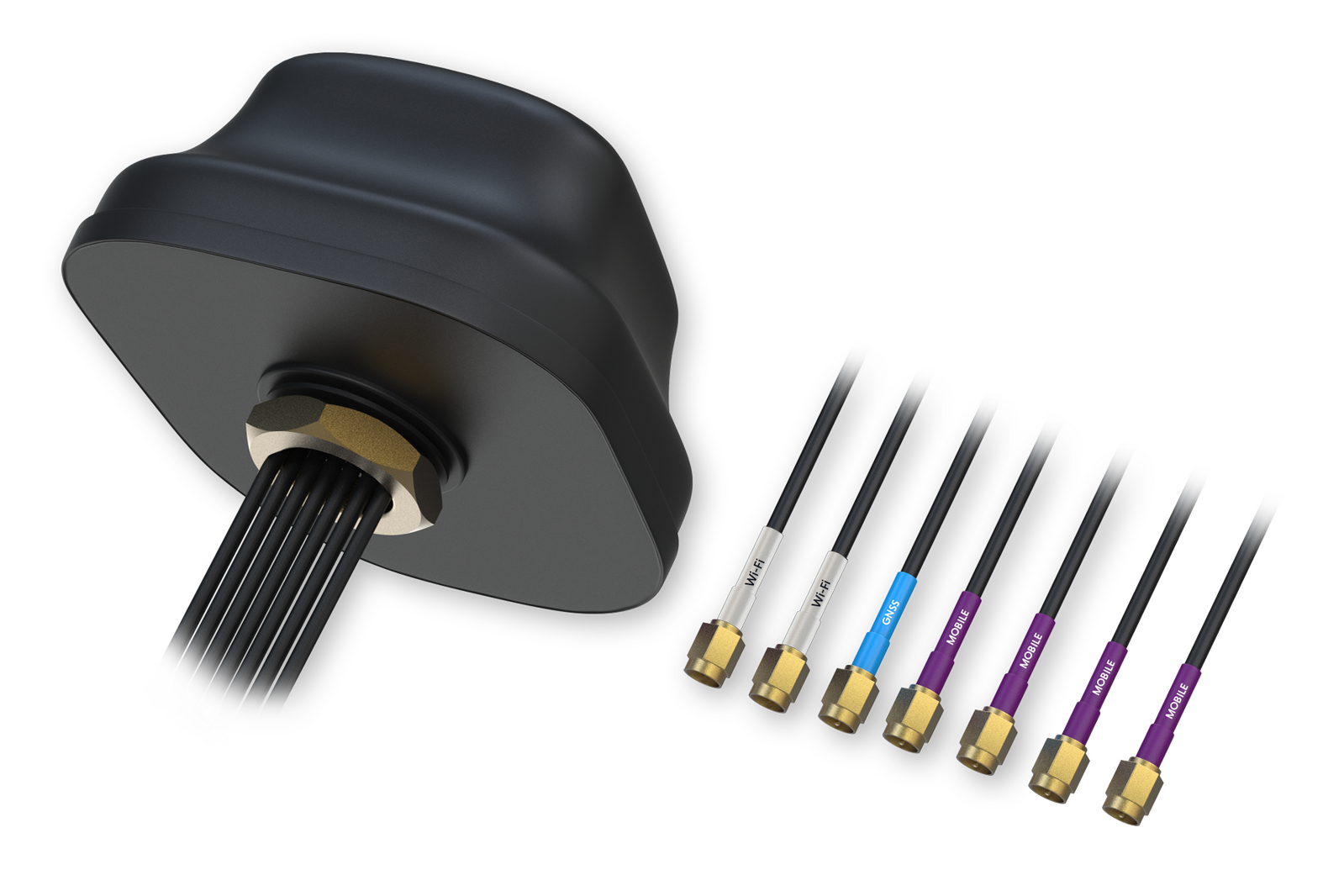

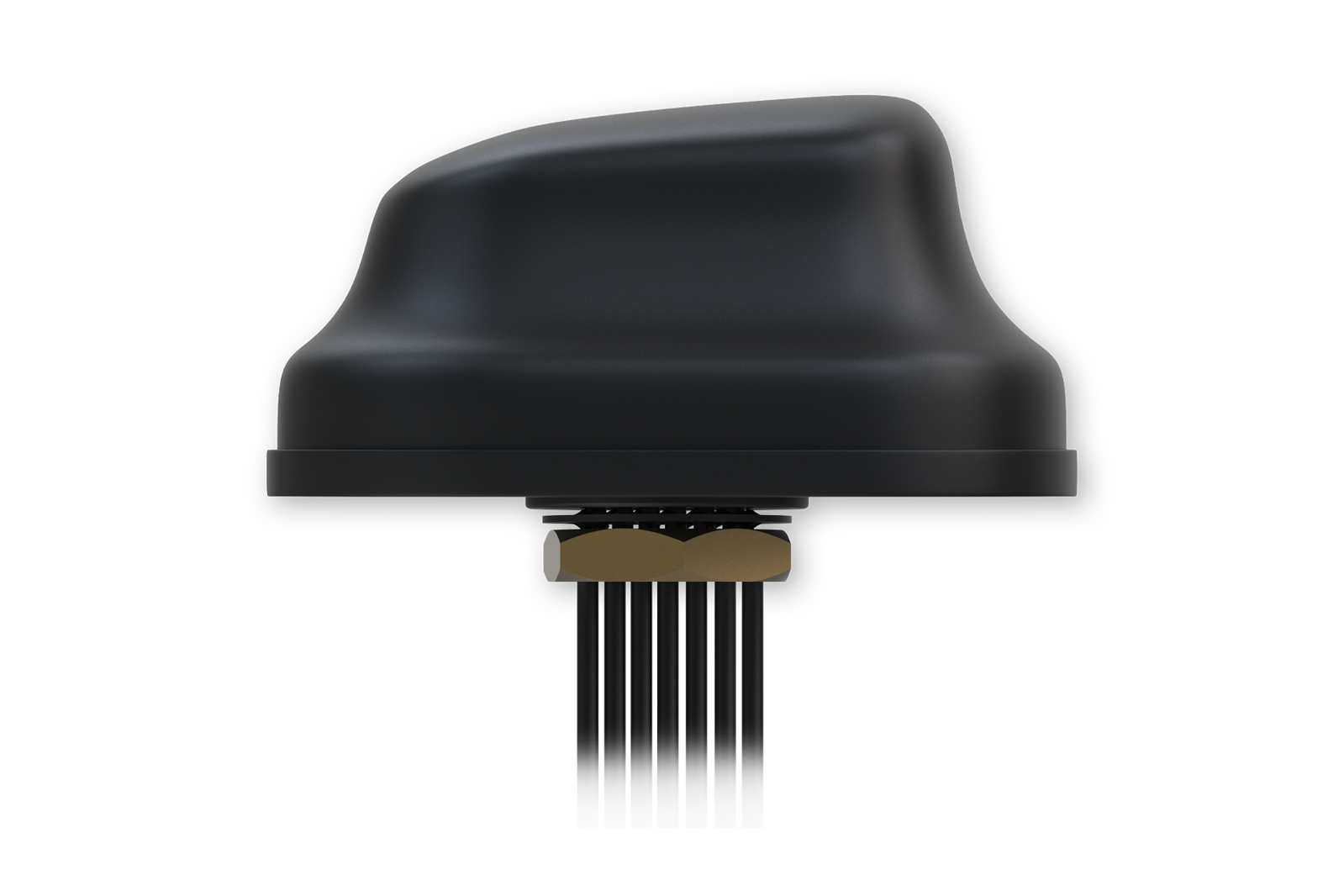

  • The PR1KC640 incorporates 7 antennas in a single, ruggedised low profile housing.

  • With a MuMiMo 4x4 5G/4G/3G antenna covering all cellular bands which provides increase data speed.

  • Similarly a MiMo WiFi antenna give blistering speeds at 2.4GHz & 5GHz.

  • Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

  • The PR1KC640 also incorporates a GPS/GNSS for Monitoring Capbilities

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KC640 provides a robust, antenna that is durable



Specifications / Frequency



Network Compatibility
Yes/No
Gain
Telstra 4GX (700MHz)
compatible
4dBi
Optus 4G+ (700MHz)
compatible
4dBi
Telstra Next-G™ (850MHz)
compatible
4dBi
Vodafone 4G+ (850MHz)
compatible
4dBi
Optus Regional 3G (900MHz)
compatible
4dBi
Vodafone Regional 3G (900MHz)
compatible
4dBi
Telstra/Optus/Vodafone 4G (1800MHz)
compatible
4dBi
All carriers - Urban/Metro 3G/4G (2100MHz)
compatible
4dBi
802.11 b/g/n WiFi (2400MHz)
compatible
4dBi
Telstra Metro 4GX (2600MHz)
compatible
4dBi
 Metro 4GX (2600MHz) compatible 4dBi
5G N78 (3500/3600MHz) compatible 4dBi


Electrical Specifications



  • Cellular Frequency Range: 617-960MHz /1710-2690MHz / 2900-4200MHz

  • WiFi Frequency Range: 2.5-2.483GHz & 4.9-5.925MHz

  • Input Impedance: 50Ω

  • Power Rating: 10W

  • Cellular VSWR: <3:1

  • WiFi VSWR: <2.5:1

  • Polarisation: Vertical

  • Radiation: Omnidirectional



Mechanical/Environmental Specifications

  • Construction: Black UV stable ABS

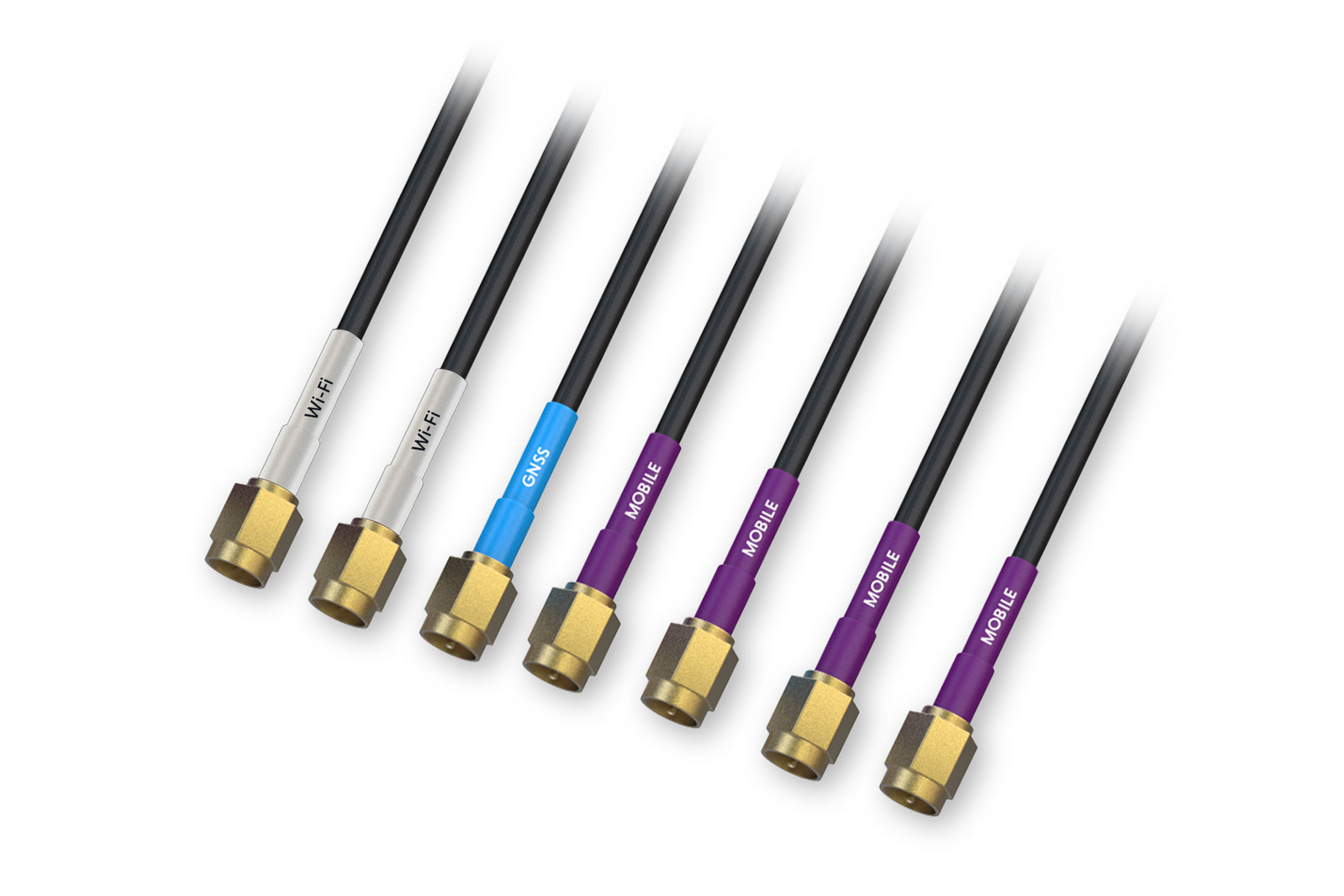

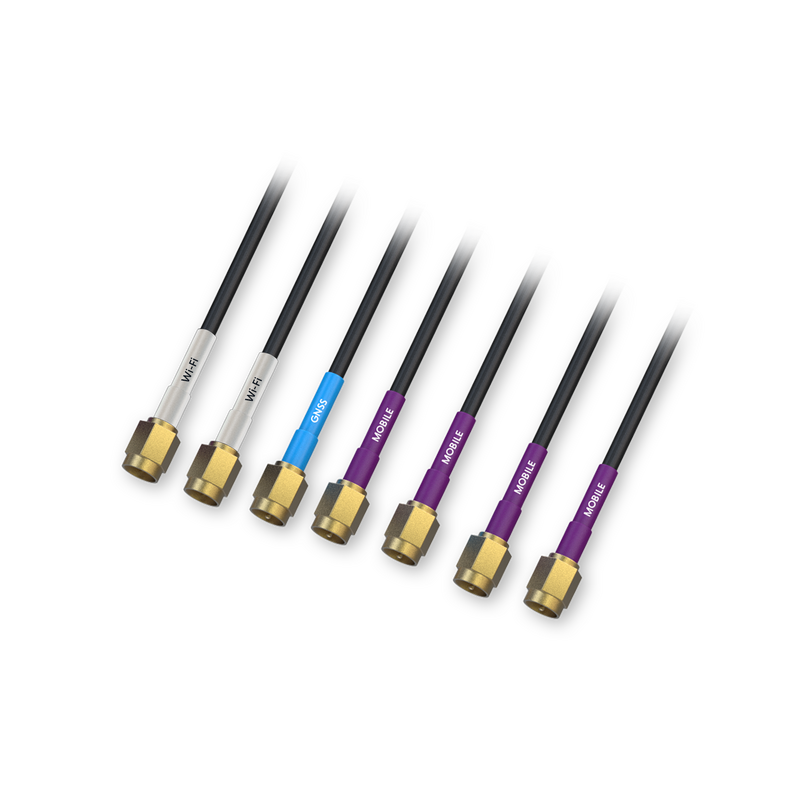

  • Cellular Cable: 3m LMR100

  • Connector: SMA Male

  • WiFi Cable: 3m LMR100

  • Connector: RP-SMA Male

  • GPS Cable: 3m LMR100

  • Connector: SMA Male

  • Thermal Shock: -40°C to +85°C

  • Weight: 0.96kg

  • Dimensions: 189 x 182 x 85 mm

  • Mounting: Panel Mount - Hole ø28 mm, panel thickness MAX 8 mm



Read More

(PR1KC640)

SKU PR1KC640
Brand Teltonika
Shipping Weight 1.2000kg
Shipping Width 0.210m
Shipping Height 0.160m
Shipping Length 0.210m
Shipping Cubic 0.007056000m3
