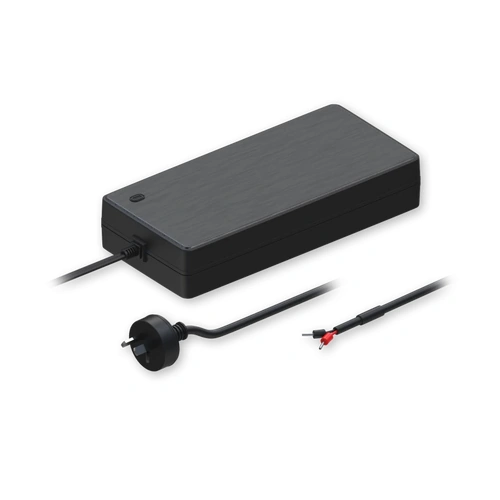

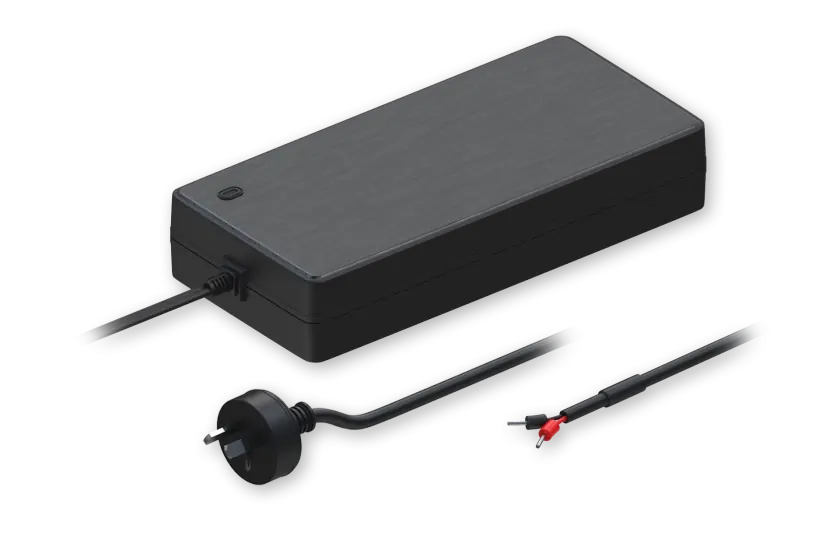

Teltonika AU 2-PIN POWER SUPPLY, 250 W

Key Features

• 2 Pin Power Supply variant

Technical Data

• GENERAL

• Input voltage: 100 – 240 VAC

• Input frequency: 50 / 60 Hz

• Input current: 3.9 A

• Input connector: AU (Type I)

• Output voltage: 54 VDC

• Output current: 4.62 A

• Output connector: 2-pin, with cord end terminals

• Weight: 910 g

• ADDITIONAL

• Input voltage range: 90 – 264 VAC

• Input frequency range: 47 – 63 Hz

• Maximum input inrush current: 60 A

• Output voltage maximum deviation: 51.3 – 56.7 VDC

• Short circuit protection: ✓

• HIPOT (dielectric withstand test): Primary to Secondary: 1500 VAC

• Certification

  Safety: IEC62368-1 (CB Scheme)

  EMC: AS/NZS CISPR 32:2015, EN 55032:2015, EN IEC 61000-3-2:2019, EN 61000-3-3:2013, EN 61000-4-2:2009, EN 61000-4-3:2006+A1:2008+A2:2010, EN 61000-4-4:2012, EN 61000-4-5:2014, EN 61000-4-6:2014, EN 61000-4-8:2010, EN 61000-4-11:2004
