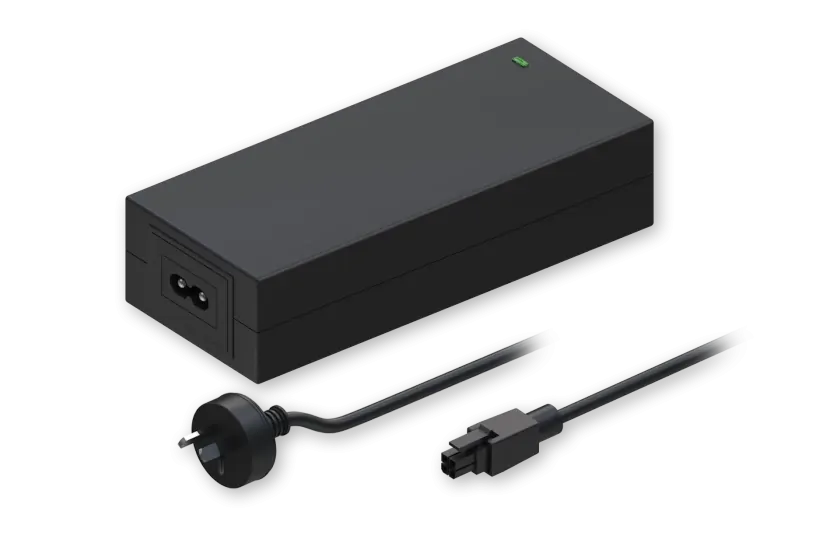

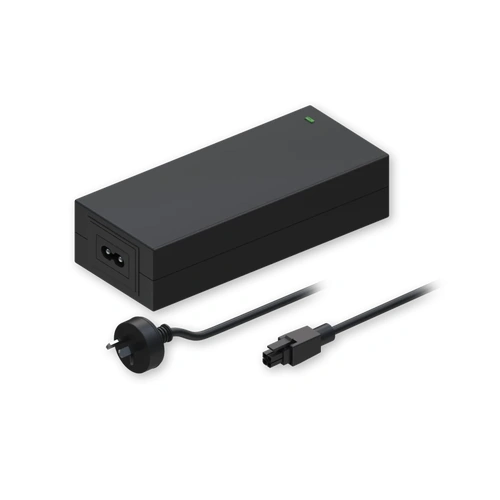

Teltonika AU 4- Pin POWER SUPPLY, 62.4 W



Key Features



  • 4 Pin Power Supply variant



Technical Data

  • GENERAL

  • Input voltage: 100 – 240 VAC

  • Input frequency: 50 / 60 Hz

  • Input current: 1.5 A

  • Input connector: AU (Type I)

  • Output voltage: 48 VDC

  • Output current: 1.3 A

  • Output connector: 4-pin, 3 mm pitch

  • Weight: 360 g

  • ADDITIONAL

  • Input voltage range: 90 – 264 VAC

  • Input frequency range: 47 – 63 Hz

  • Maximum input inrush current: 50 A

  • Output voltage maximum deviation: 45.6 – 50.4 VDC

  • Short circuit protection:

  • HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC

  • MTBF: 50000 h

  • Certification

    Safety: AS/NZS 61558.2.16:2010

    EMC: AS/NZS CISPR 14.1:2013, EN 55032:2012+AC:2013, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 55024:2010+A1:2015

(PR3PWAU3)

SKU PR3PWAU3
Brand Teltonika
Shipping Width 0.050m
Shipping Height 0.050m
