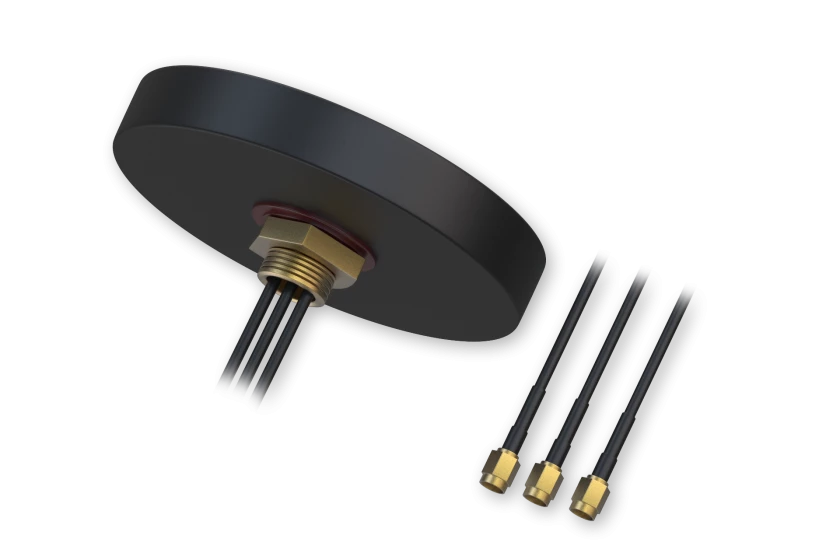

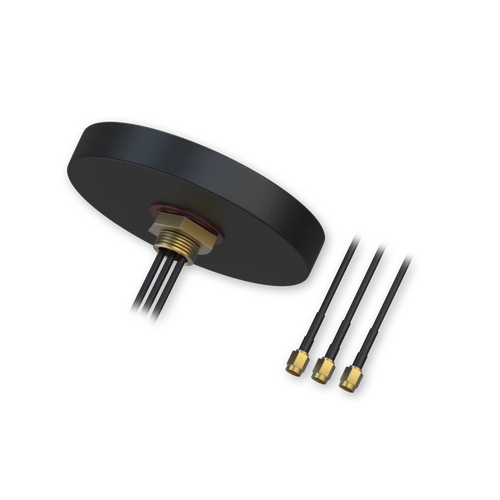

Teltonika COMBO SISO MOBILE/GNSS/WIFI ROOF SMA ANTENNA

(1 x Cellular & 1 x WiFi & 1 GNSS)

Key Features

• Suitable for 3G and 4G Networks

• Supports 2.4GHz WiFi Networks

• Extremely low profile 15.2mm height

• IP67 Rated

• M12 stud offers ease of installation in the field

Usage

• The PR1KCS28 incorporates 3 antennas in a single, ruggedised low profile housing.

• With a LTE/4G/3G antenna covering all cellular bands which provides increase data speed.

• Similarly a single WiFi antenna give blistering speeds at 2.4GHz. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.

• The PR1KCS28 also incorporates a GPS/GNSS for Monitoring Capbilities

• For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KCS28 provides a robust, antenna that is durable, even in extreme environments

Specifications / Frequency

Network Compatibility	Yes/No	Gain
Telstra 4GX (700MHz)		3.5dBi
Optus 4G+ (700MHz)		3.5dBi
Telstra Next-G™ (850MHz)		3.5dBi
Vodafone 4G+ (850MHz)		3.5dBi
Optus Regional 3G (900MHz)		3.5dBi
Vodafone Regional 3G (900MHz)		3.5dBi
Telstra/Optus/Vodafone 4G (1800MHz)		3.5dBi
All carriers - Urban/Metro 3G/4G (2100MHz)		3.5dBi
802.11 b/g/n WiFi (2400MHz)		3.5dBi
Telstra Metro 4GX (2600MHz)		3.5dBi
Metro 4GX (2600MHz)		3.5dBi

Electrical Specifications

• Cellular Frequency Range: 617-960/1710-2690MHz

• WiFi Frequency Range: 2.35-2.5GHz

• Input Impedance: 50Ω

• Power Rating: 10W

• Cellular VSWR: <1.5:1

• WiFi VSWR: <1.5:1

• Polarisation: Vertical

• Radiation: Omnidirectional

Mechanical/Environmental Specifications

• Construction: Black UV stable ABS

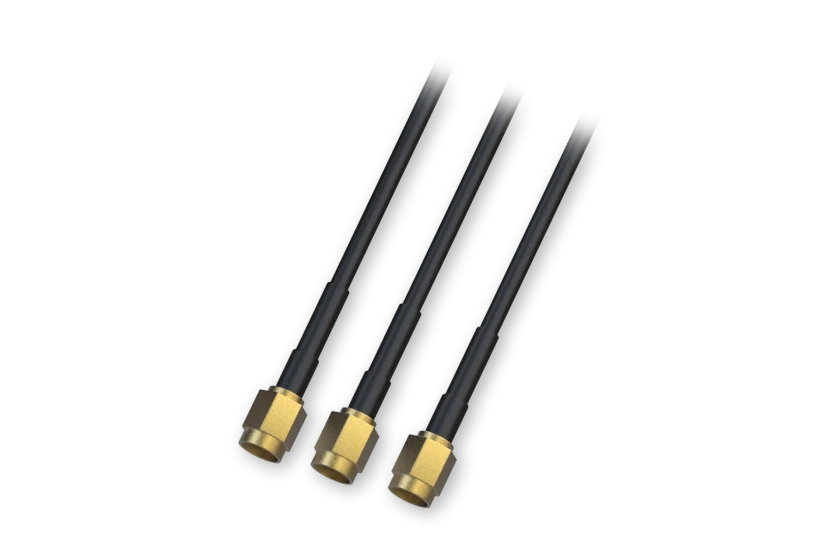

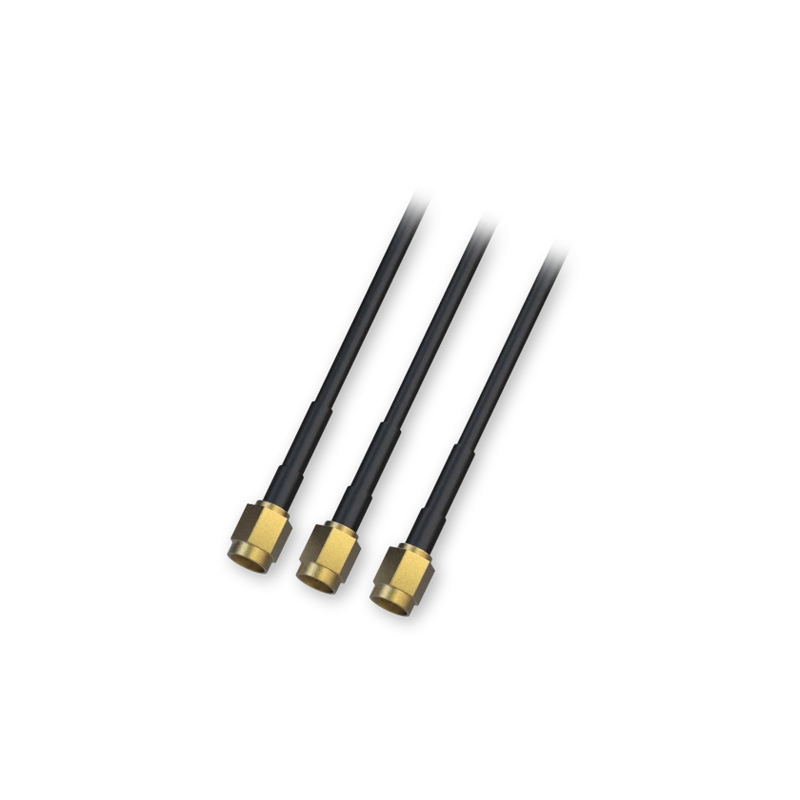

• Cellular Cable: 3m RG174

• Connector: SMA Male

• WiFi Cable: 3m RG174

• Connector: RP-SMA Male

• GPS Cable: 3m RG174

• Connector: SMA Male

• Thermal Shock: -40°C to +85°C

• Weight: 0.215kg

• Dimensions: Ø 80.5 x 15.2 mm

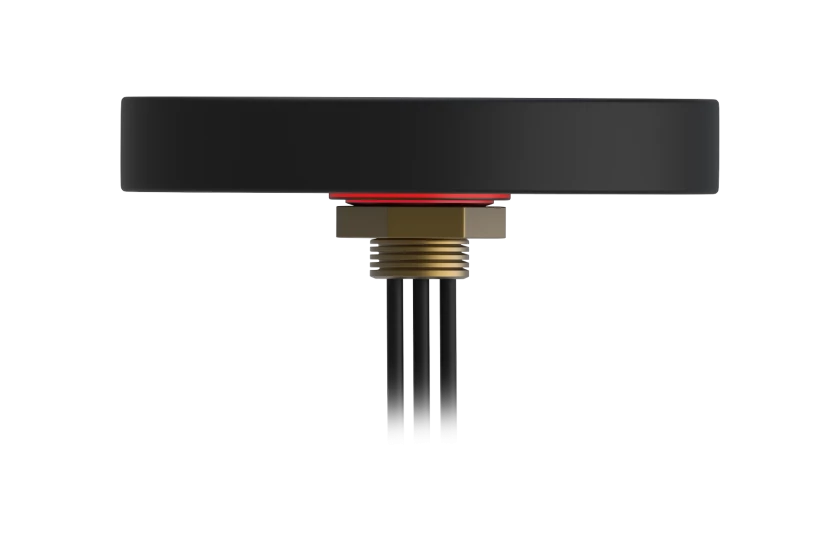

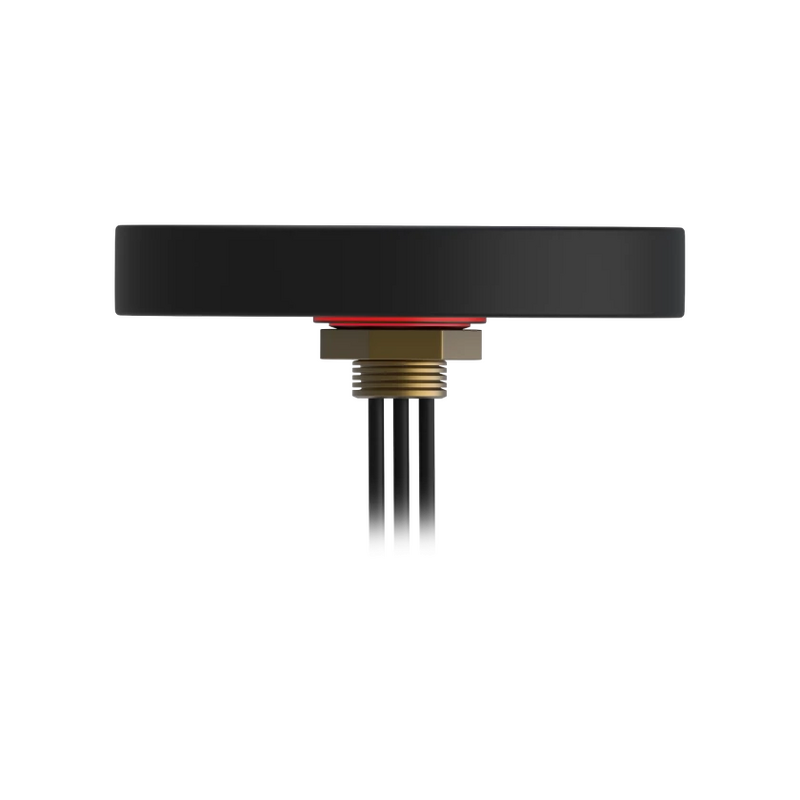

• Mounting: Panel Mount - M12 thread stud & nut (13.5 long)
