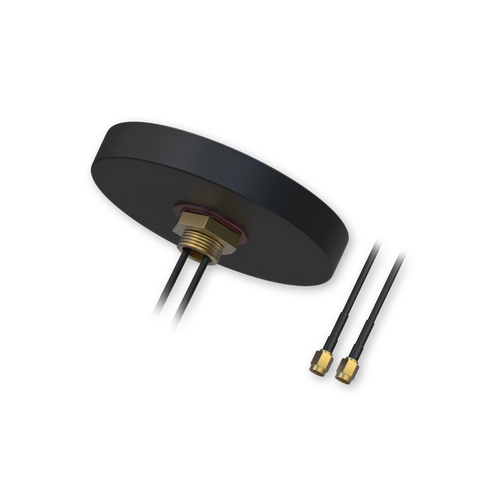

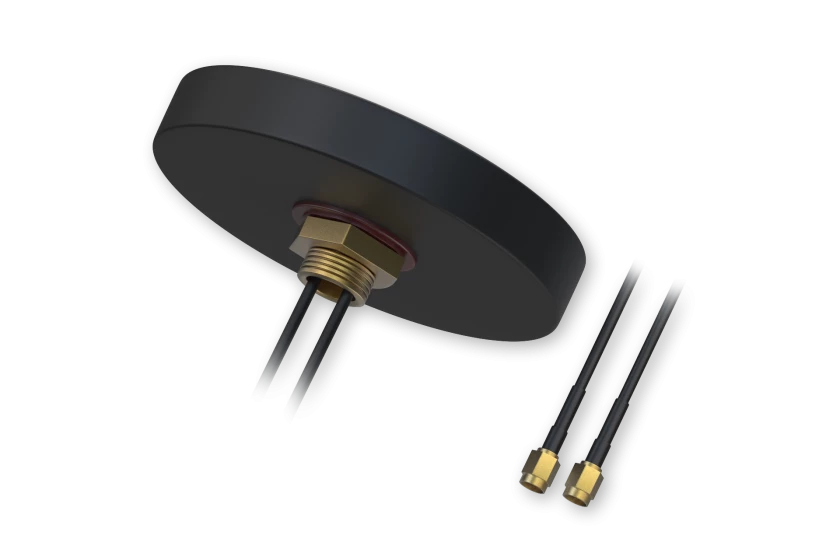

Teltonika PR1KCL25 4G MiMo Mobile Low Profile Antenna



Key Features



  • Suitable for 4G Networks

  • Extremely low profile 15.2mm height

  • IP65 Rated

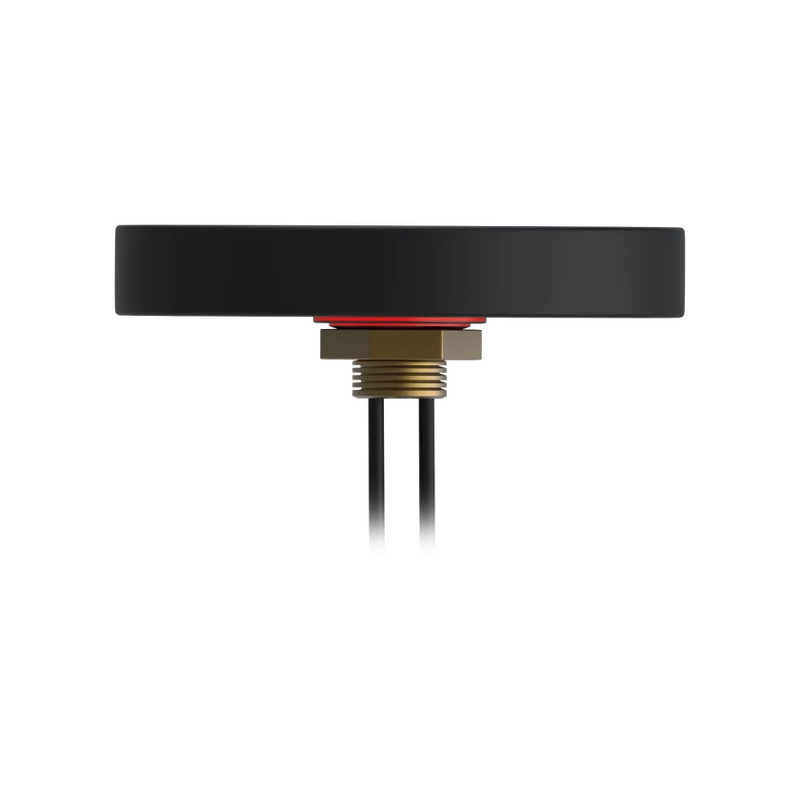

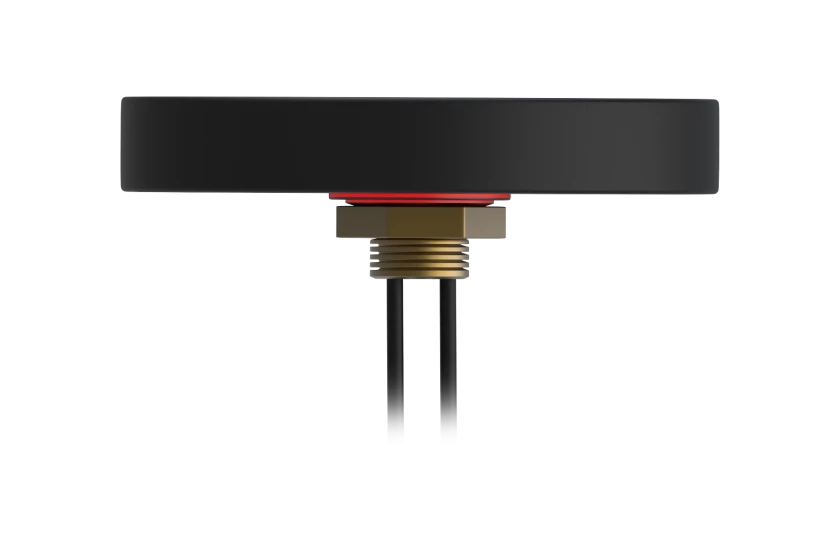

  • Stud Mount Installation



Usage



  • The PR1KCL25 incorporates 2 antennas in a single, ruggedised low profile housing.

  • With a  MiMoLTE/4G antenna covering all cellular bands which provides increase data speed.

  • For industries such as commercial vehicle telematics, remote monitoring, smart meter systems and construction equipment, the PR1KCL25 provides a robust, antenna that is durable, even in extreme environments



Specifications

Electrical Specifications

  • Frequency range: 698 – 960, 1710 – 2690 MHz

  • Polarization: Linear

  • Main antenna gain: 2.5 dBi

  • Aux antenna gain: 2.0 dBi

  • V.S.W.R: < 3.0

  • Impedance: 50 Ω

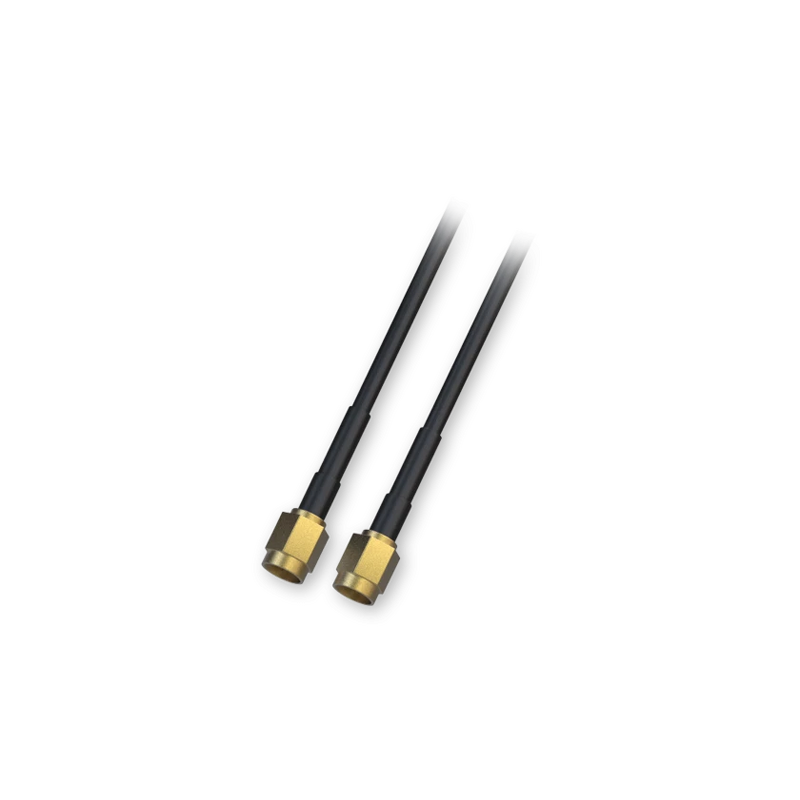

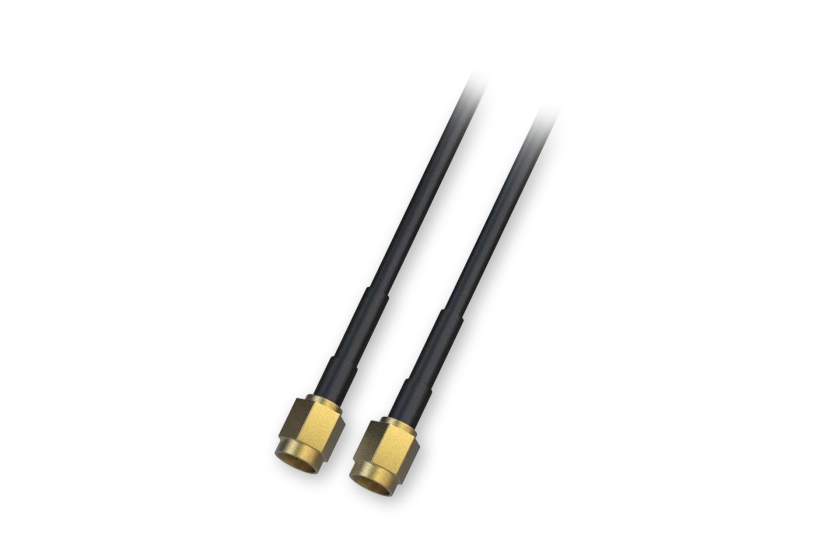

  • Connector type and count: 2x SMA Male



Mechanical/Environmental Specifications

  • Mounting method: Screw

  • Radome ingress protection rating: IP65 (exclude cable outlet)

  • Radome material: UV resistant plastic and cable

  • Housing dimensions: Ø 81.3 x 15.2 mm

  • Cable: 2x RG174, 3000 mm

  • Operating temperature: - 40 - +85 °C

  • Weight: 157 ± 10 g

  • UV resistance:

  • RoHS Compliant:



(PR1KCL25)

SKU PR1KCL25
Brand Teltonika
Shipping Weight 0.5000kg
Shipping Width 0.150m
Shipping Height 0.130m
Shipping Length 0.145m
Shipping Cubic 0.002827500m3
