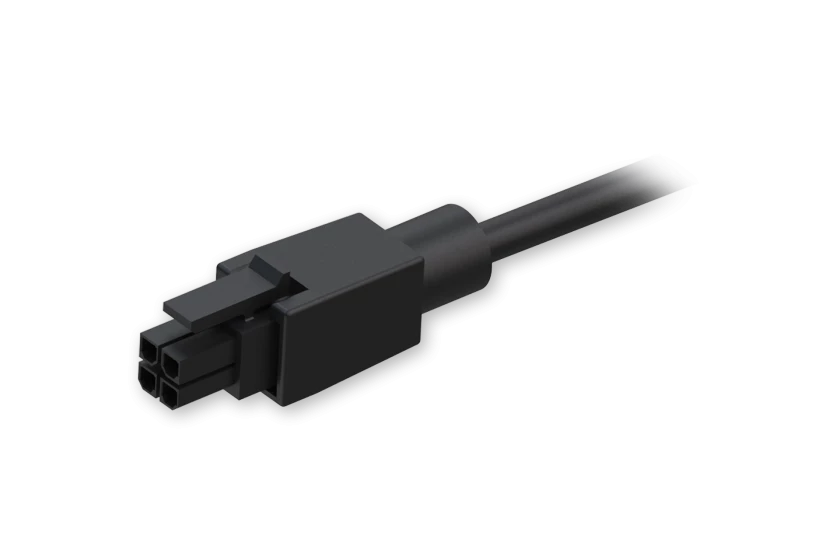

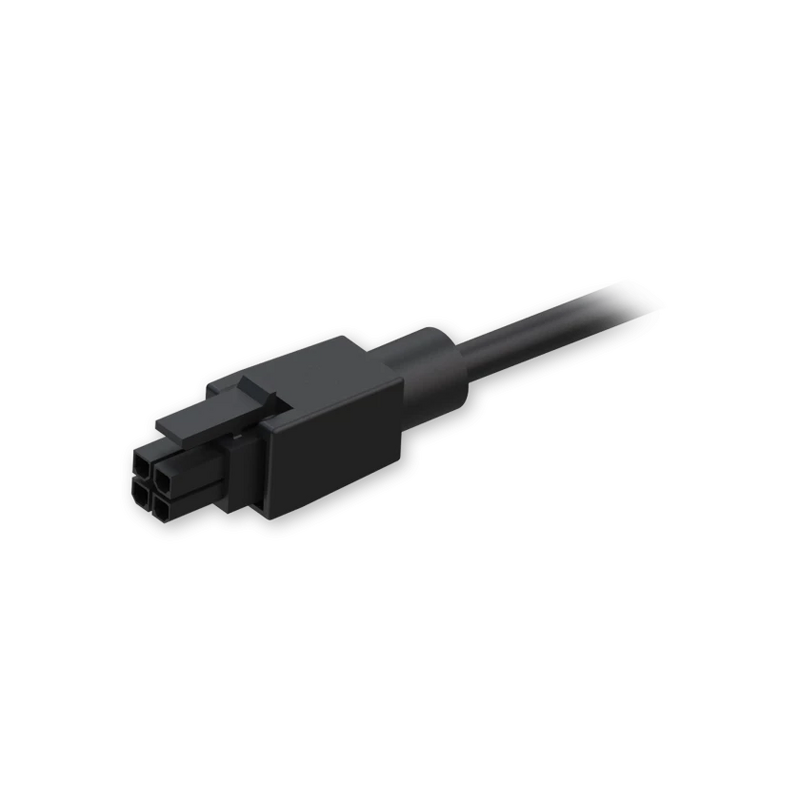

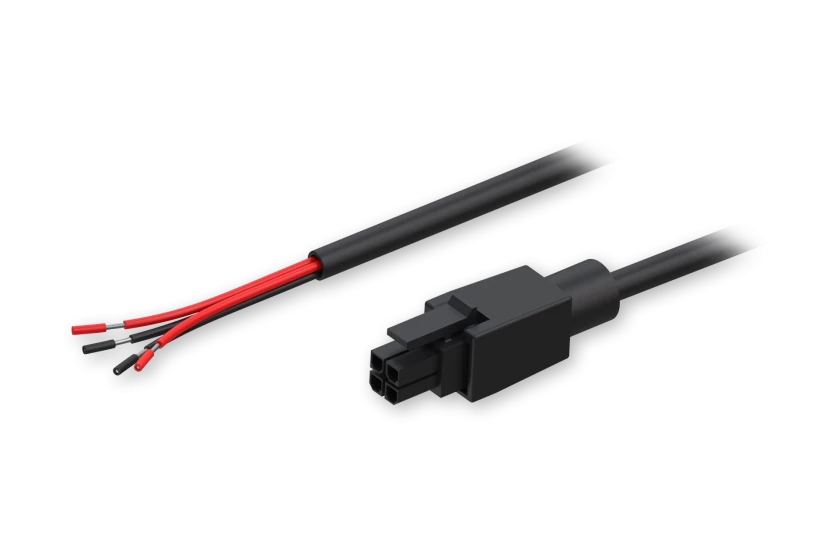

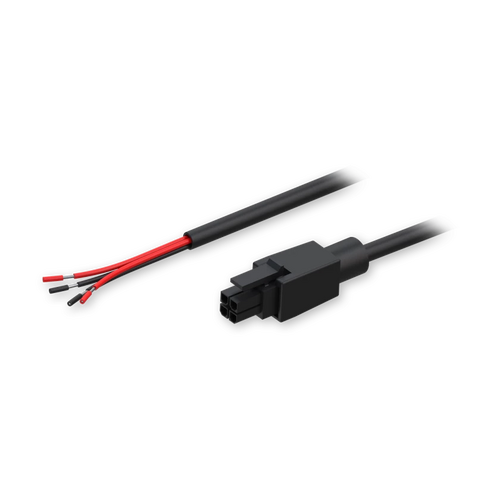

Teltonika PR2PL15B 4 Pin Power Cord with Open Wire



Key Features



  • Input connector: 4-way screw terminal, 8mm pitch

  • Output connector: 4-pin, 3mm pitch

  • RoHS Compliant: ✔



TECHNICAL DATA

GENERAL

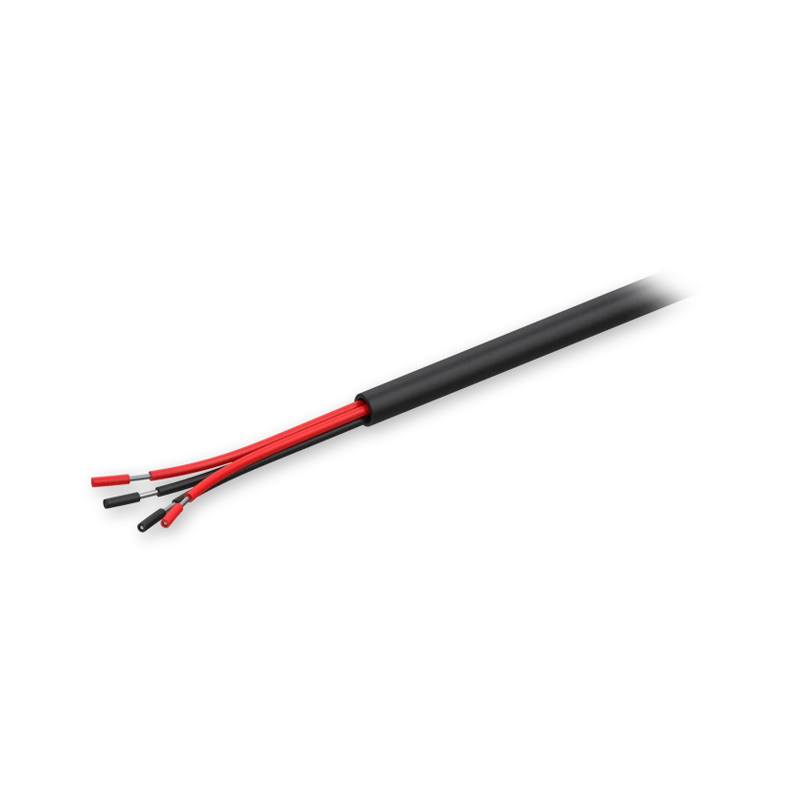

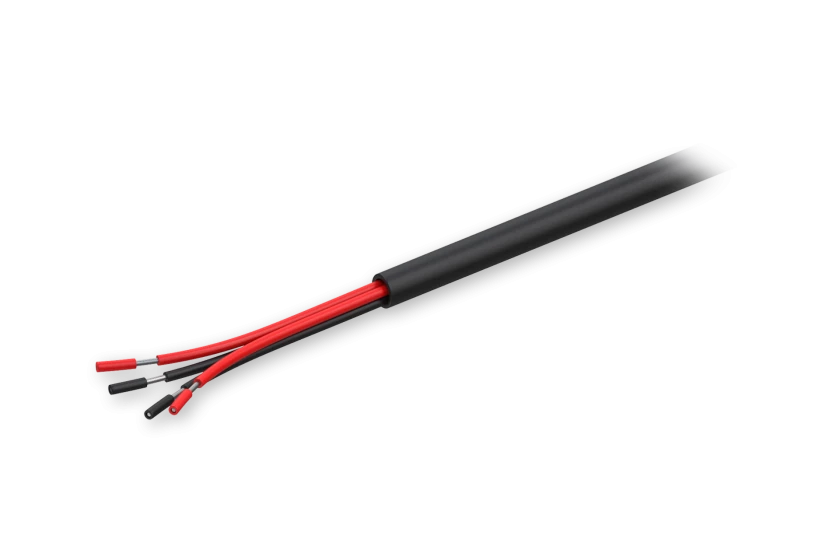

  • Input connector: 4-way open wire

  • Output connector: 4-pin, 3 mm pitch

  • Cable: 4 x 0.5 mm² (20 AWG)

  • Total Length: 1500 mm

  • RoHS:

  • Maximum Voltage: 300 V

  • Max UL-listed Voltage: 300 V

  • Max DC Current Per Contact: 4.5 A

  • Temperature Range: -20 °C to 80 °C

  • Cable Material Isolation Voltage kV: 1.5 kV







(PR2PL15B)

SKU PR2PL15B
Shipping Weight 0.0500kg
Shipping Width 0.007m
Shipping Height 0.005m
Shipping Length 0.011m
