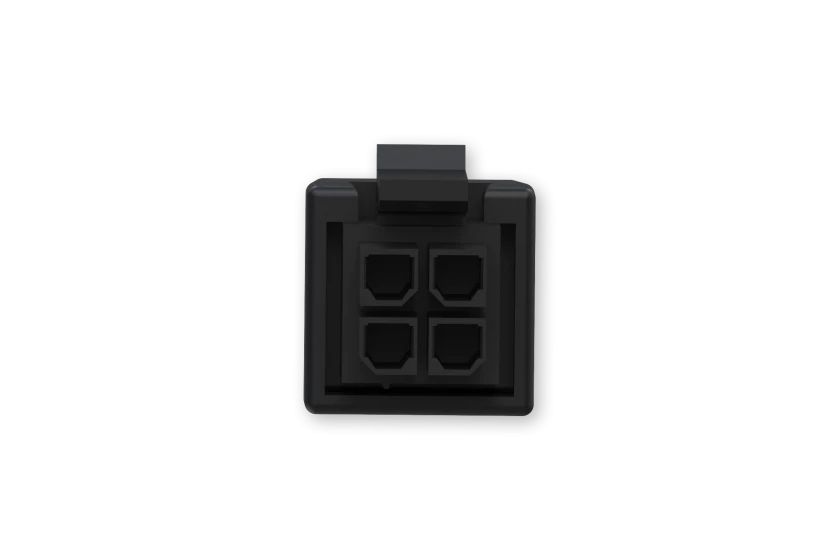

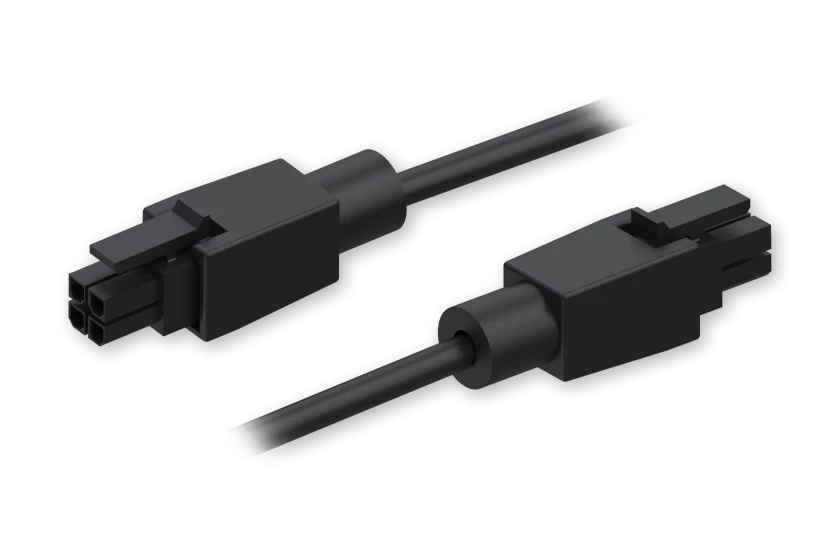

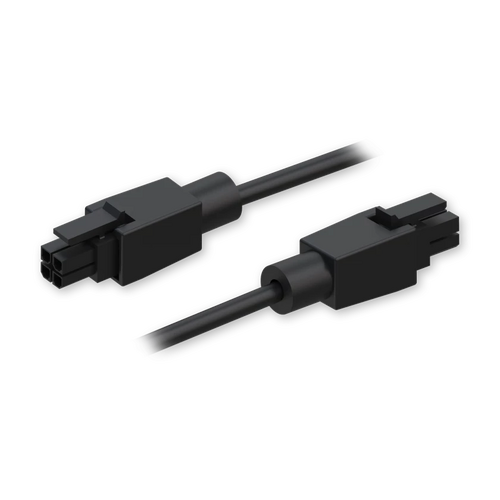

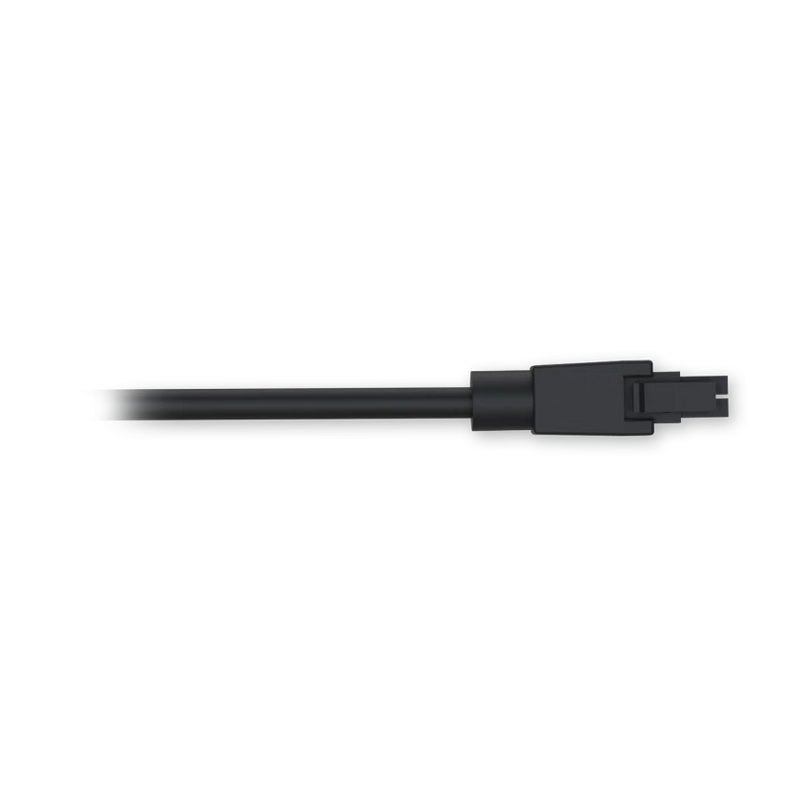

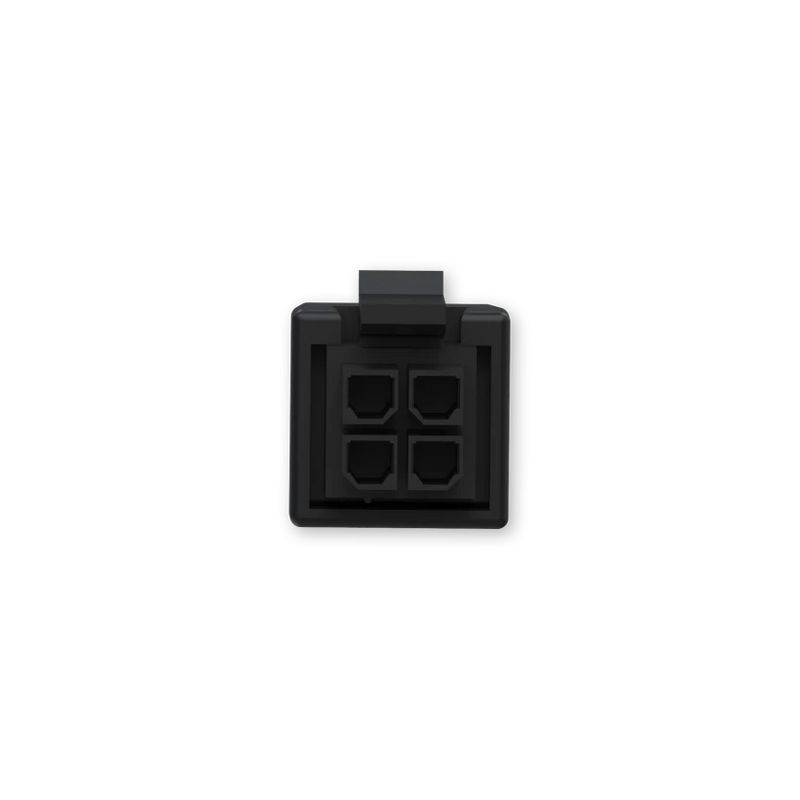

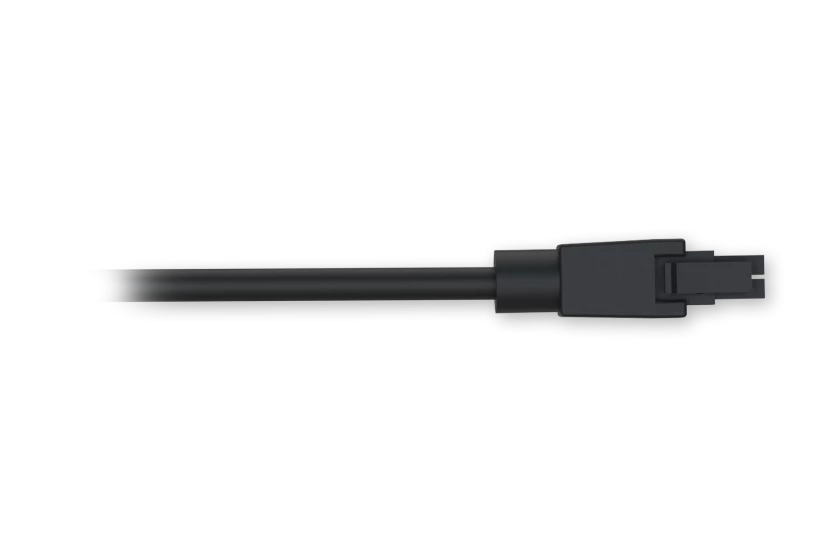

Teltonika PR2PP10B 4 Pin to 4 Pin Power Cable



Key Features



  • Input connector: 4-pin, 3mm pitch

  • Output connector: 4-pin, 3mm pitch

  • RoHS Compliant: ✔



TECHNICAL DATA

GENERAL

  • Input connector: 4-pin, 3 mm pitch

  • Input voltage max: 30 VDC

  • Output connector: 4-pin, 3 mm pitch

  • Conductor cross section: Stranded, cross section 4 x 0.20 mm² (24 AWG)

  • Cable outer diameter: 4.5 mm

  • Maximum current: 2 A

  • Weight: 47 g

  • Total Length: 1000 mm

  • Protection material: PVC 60P BLACK

  • Flammability rating: UL 94 V-2

  • RoHS:

  • REACH:







(PR2PP10B)

SKU PR2PP10B
Shipping Weight 0.0500kg
Shipping Width 0.007m
Shipping Height 0.005m
Shipping Length 0.011m
