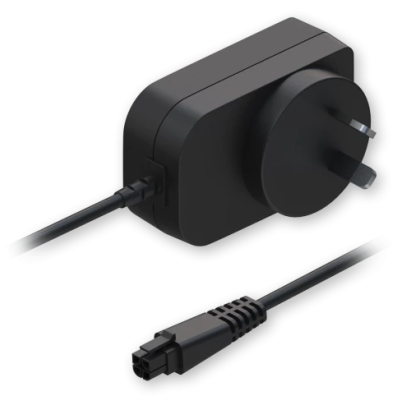

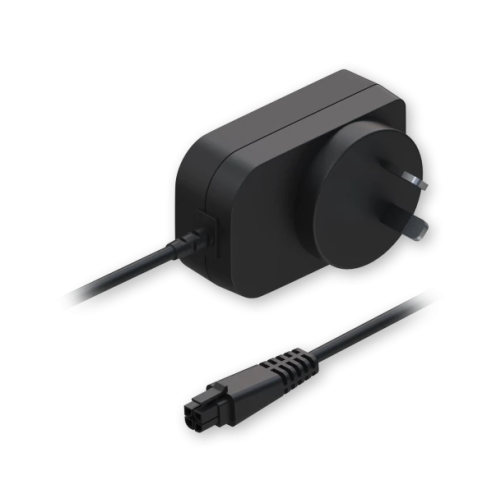

Teltonika PR3P2AU3 Replacement Power Supply 24W

SPECIFICATIONS

  • Input voltage: 100 - 240 VAC
  • Input frequency: 50/60 Hz
  • Input current: 0.8 A
  • Input connector: AU (Type I)
  • Output voltage: 12 VDC
  • Output current: 2.0 A
  • Output connector: 4-pin, 3 mm pitch
  • Weight: 115 g
  • Input voltage range: 90 – 264 VAC
  • Input frequency range: 47 – 63 Hz
  • Maximum input inrush current: 60 A
  • Output voltage maximum deviation: 11.4 – 12.6 VDC
  • Short circuit protection: ✓
  • HIPOT (dielectric withstand test): Primary to Secondary: 4000 VDC
  • MTBF: 30000 h
  • PSU efficiency standard: DoE Level VI
  • WARRANTY

    2-years limited warranty

    Certification

    Safety: AS/NZS 60950.1:2015, AS/NZS 60065:2012 Inc A1

    EMC: AS/NZS CISPR 22:2009+A1:2010, AS/NZS CISPR 13:2012, EN 55032:2012, EN 55024:2010, EN 55020:2007+A11, EN 61000-3-2:2014, EN 61000-3-3:2013

(PR3P2AU3)

SKU PR3P2AU3
Brand Teltonika
Shipping Weight 0.0200kg
Shipping Width 0.040m
Shipping Height 0.050m
Shipping Length 0.090m
Shipping Cubic 0.000180000m3
