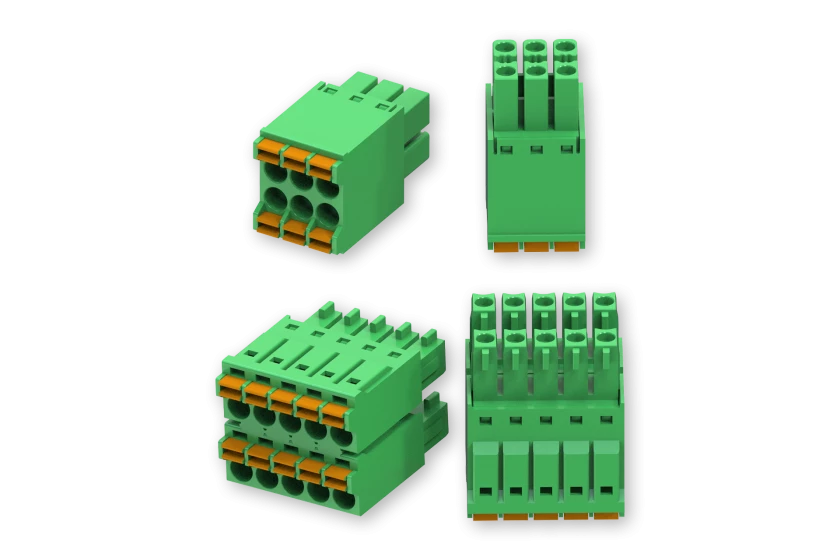

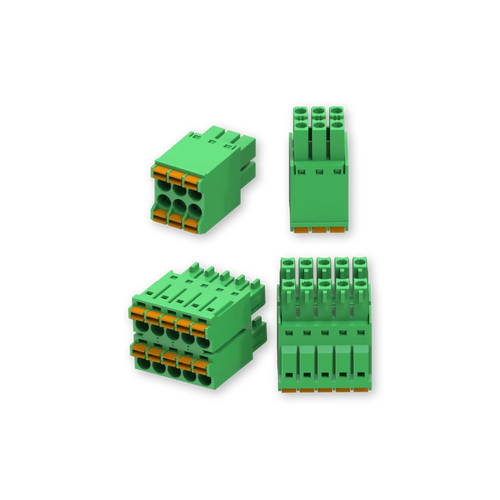

Teltonika PR5MEC15 Connector Set - 2x5 Pin Connector



Specifications

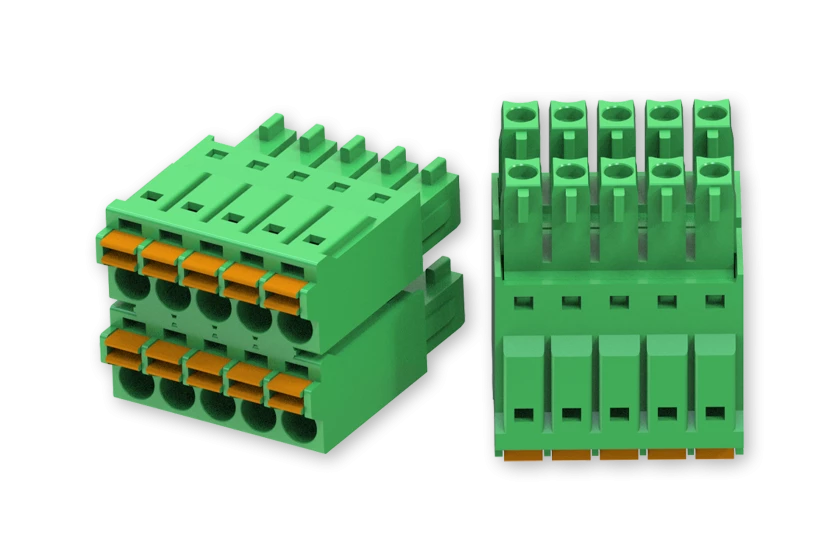

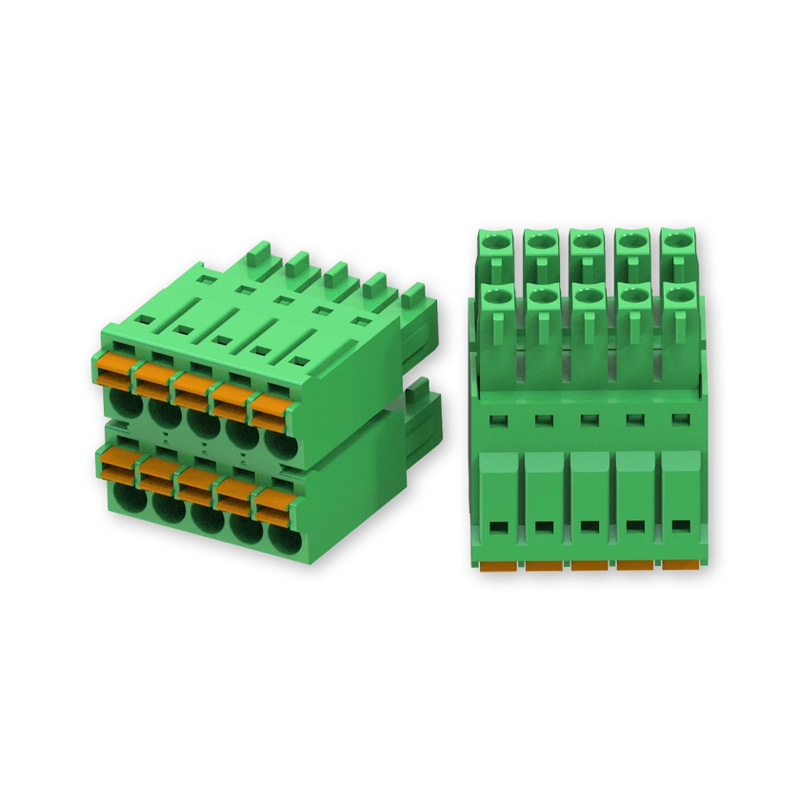

2X5 PIN CONNECTOR

GENERAL

  • Voltage rating: 300 V
  • Current rating: 8 A
  • Withstand voltage: 1600 V/1min
  • Wire range AWG: 16 – 24 AWG
  • Operating temperature: –40 °C ~ +105 °C
  • Insulation material: PA66
  • Internal contacts material: Copper alloy
  • Internal contacts finishing: Sn plated

ADDITIONAL

  • Strip Length: 9 – 10 mm
  • Pitch: 3.5 mm
  • Shrapnel material: Stainless steel
  • Conductor cross section: 0.2 – 1.5 mm²
  • Poles: 2 x 5
  • Flammability rating: UL 94 V-0
  • RoHS:
  • REACH:

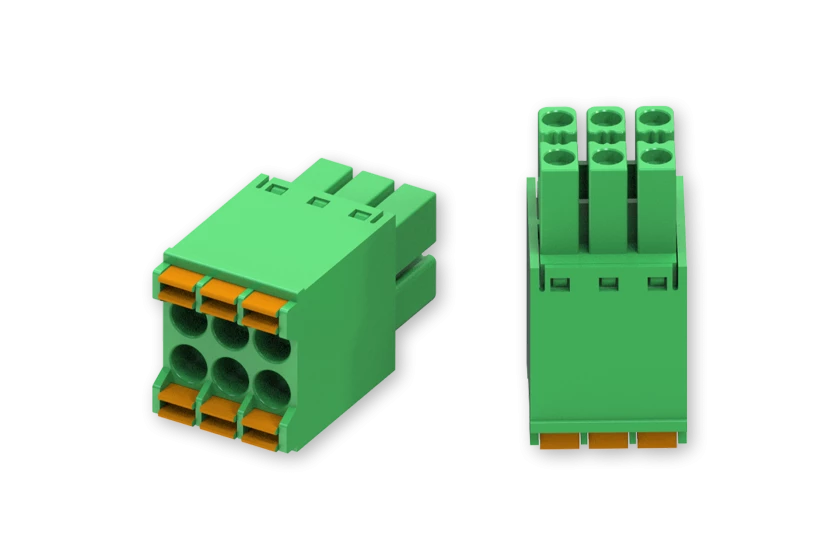

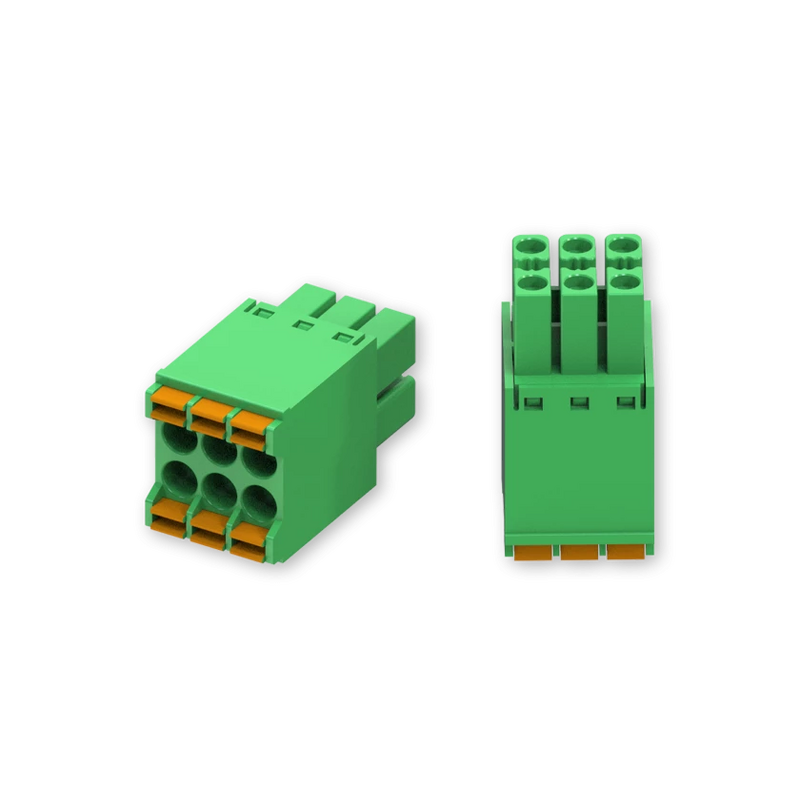

2X3 PIN CONNECTOR

GENERAL

  • Voltage rating: 300 V
  • Current rating: 8 A
  • Withstand voltage: 1600 V/1min
  • Wire range AWG: 16 – 24 AWG
  • Operating temperature: –40 °C ~ +105 °C
  • Insulator material: PA66
  • Internal contacts material: Copper alloy
  • Internal contacts finishing: Sn plated

ADDITIONAL

  • Strip Length: 9 – 10 mm
  • Pitch: 3.5 mm
  • Shrapnel material: Copper alloy
  • Conductor cross section: 0.2 – 1.5 mm²
  • Poles: 2 x 3
  • Flammability rating: UL 94 V-0
  • RoHS:
  • REACH:





(PR5MEC15)

SKU PR5MEC15
Brand Teltonika
Shipping Weight 0.4500kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
