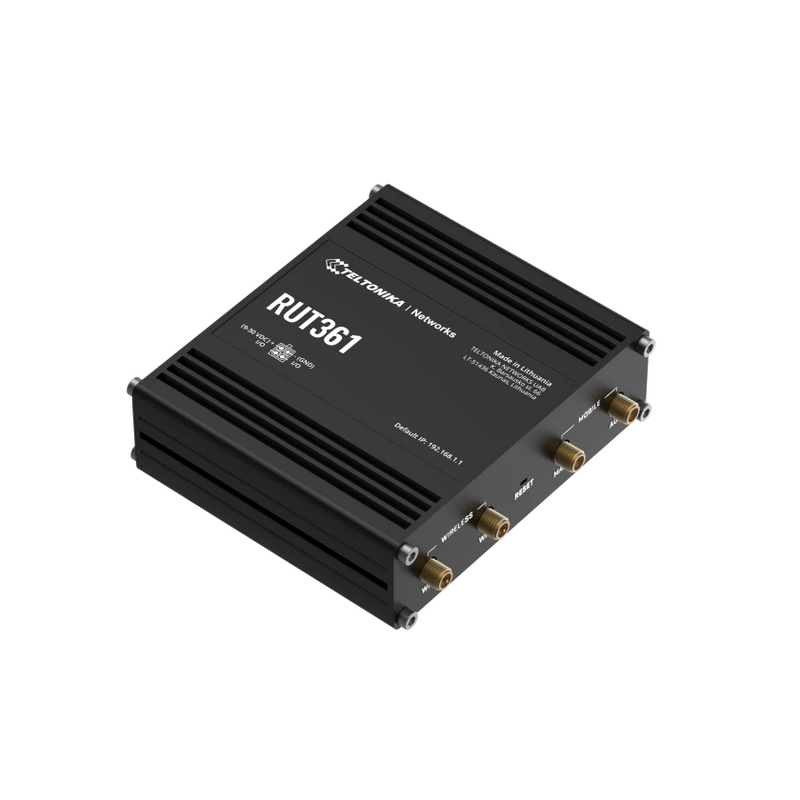

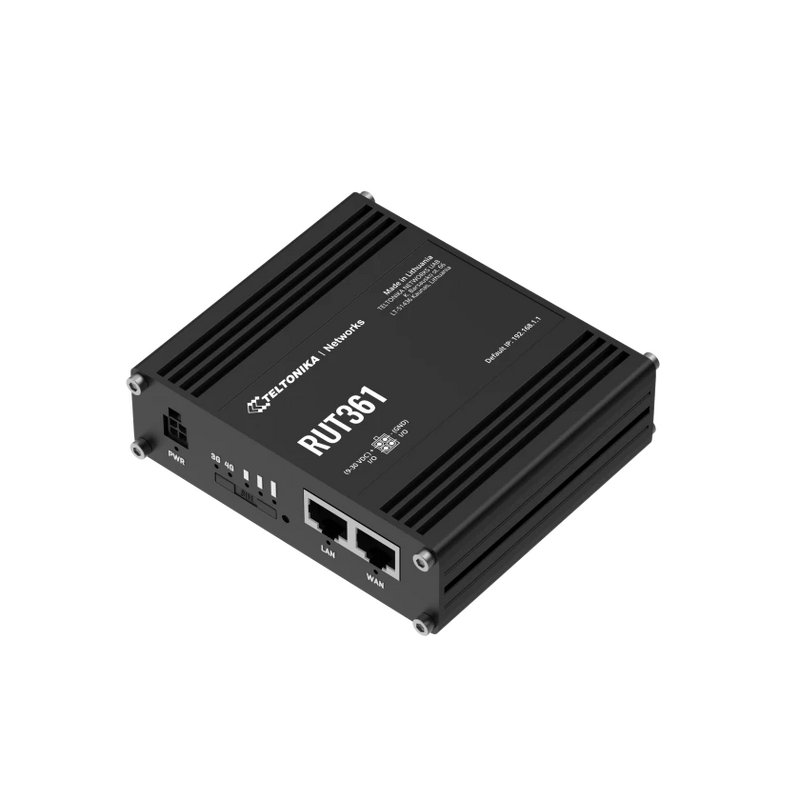

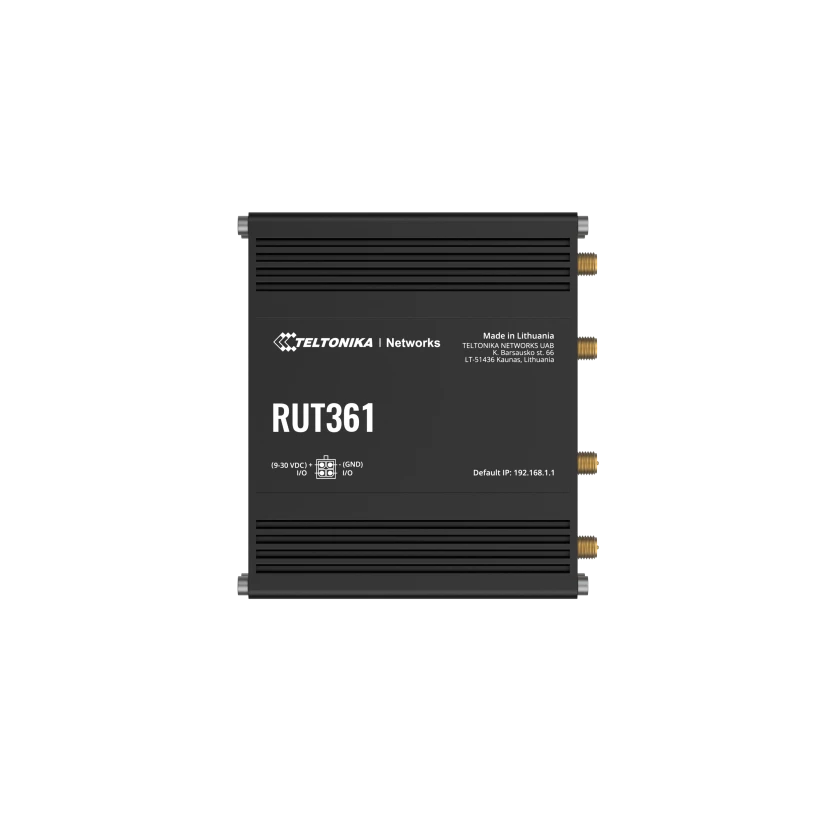

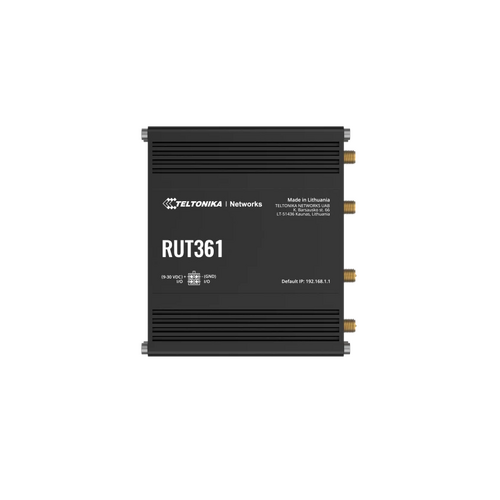

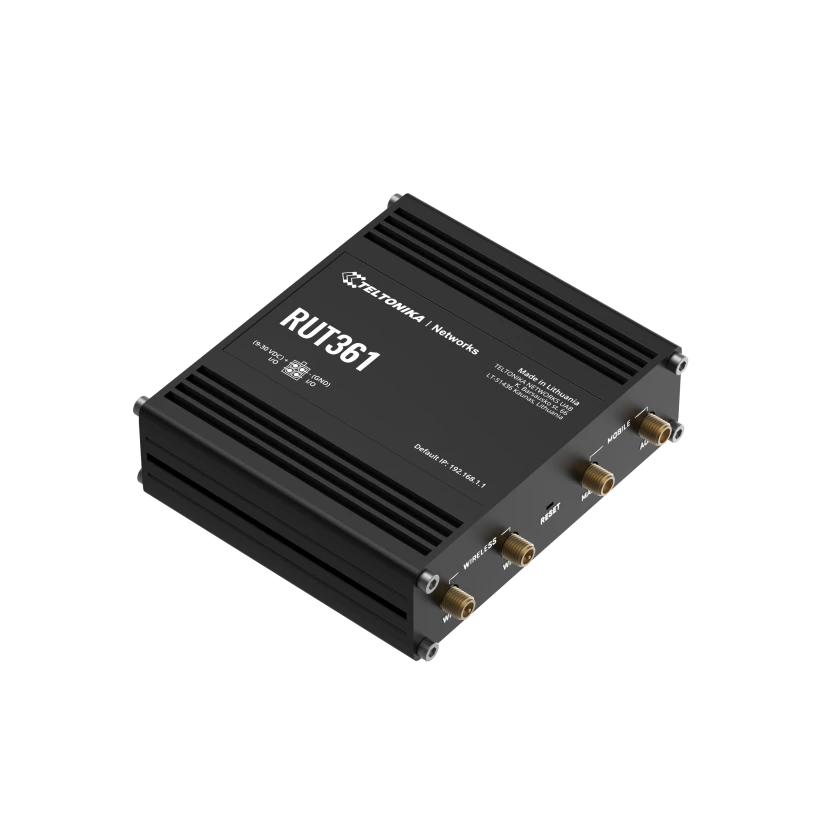

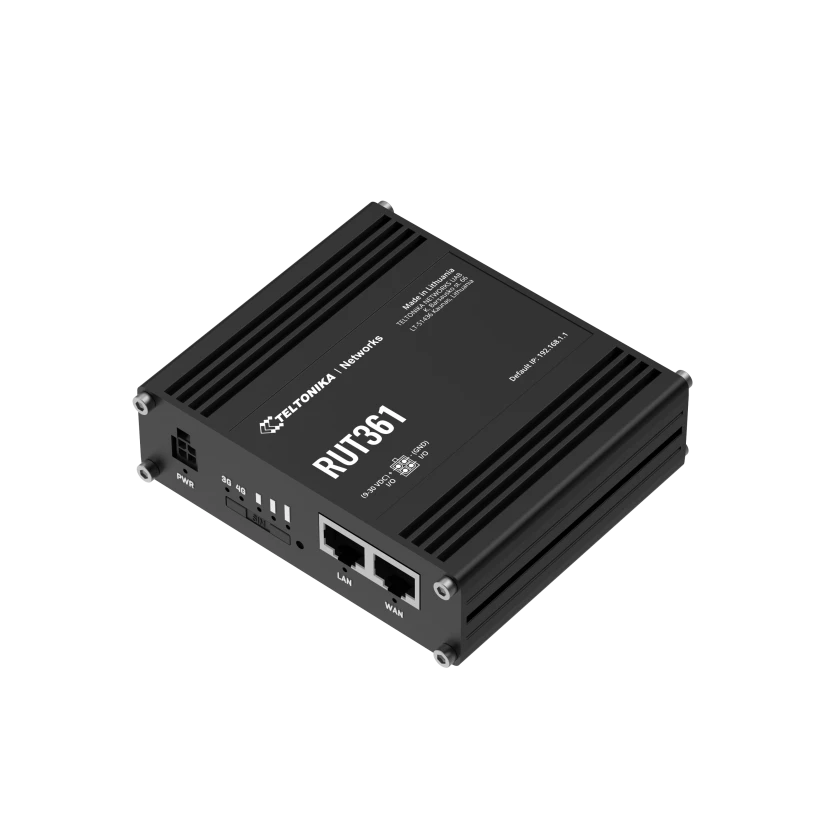

Teltonika RUT361 CAT6 LTE Industrial Router

Key Features

• The RUT361 is an updated version of the RUT360 featuring an updated Chipset

• The RUT361 offers a possibility to connect to the internet using cellular, Wi-Fi, and wired networks.

• The RUT361 is a 4G LTE Cat 6 cellular module, offering data speeds up to 300 Mbps.

• The RUT361 is equipped with two Ethernet interfaces

• The RUT361 offers WAN Failover for automatic switching to an available back up connection

• The RUT361 is equipped with 802.11 b/g/n WiFi with hotspot functionality

• Equipped with external SIM holder and signal strength status LEDs, it ensures easy network management

• External antenna connectors make it possible to attach desired antennas and to easily find the best signal location.

The RUT361 is a robust cellular router with speeds of up to 300 Mbps with carrier aggregation, vital for IoT solutions demanding uninterrupted networks in challenging environments. Remote monitoring, advanced security features, and WAN failover make this LTE Cat 6 router feature-rich, and two Wi-Fi antennas ensure greater device applicability in diverse M2M applications.

LTE support

Enjoy worry free LTE internet connection anywhere, whether it's your favourite camping spot, your home or office – RUT361 has you covered.

This sleek router supports high speed LTE CAT6, which provides speeds of up to 300 Mbps for your leisure or business demands.

Wireless network - built-in WiFi connectivity

Free yourself from cumbersome Ethernet-based on-site maintenance or simply save some smartphone SIM data for online check-ups and work e-mail attachment downloads.

Input and Output

With configurable inputs you can monitor external events, be it the water level threshold at a road crossing, or a simple door sensor. You can receive alerts remotely either via SMS or e-mail.

External SIM slot

External SIM slot lets you insert or change SIM card with relative ease - the device will connect to the network right away without any need to reboot.

2x Ethernet ports

Small and compact device for tight spaces with limited amount of external devices. If one of the ports remains free, it can be used as the main internet connection or a backup connection.

RMS support

Remotely manage your routers fleet. With full support of centralised Teltonika Remote Management System you will be able to access, control and monitor all of your routers within a single platform. This will help you make better decisions for future installments and best-use practices. Try RMS for free by clicking this link and registering your free demo account!

Specifications / Frequency

Mobile

• Mobile Module: 4G LTE Cat 6 up to 300 DL/ 50 UL Mbps; 3G up to 42 DL/ 5.76 UL Mbps

• Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD: Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list: Operator black/white list (by country or separate operators)

• Multiple PDN: Possibility to use different PDNs for multiple network access and services

• Band Management: Band lock, Used band status display

• SIM PIN Code Management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN: Auto APN

• Bridge: Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode: 802.11b/g/n (Wi-Fi 4), 2x2 MIMO, Access Point (AP), Station (STA)

• Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID: ESSID stealth mode

• Wi-Fi users: Up to 50 simultaneous connections

• Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter: Whitelist, blacklist

• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information.

Ethernet

• WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX

• LAN: 1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall: Port forward, traffic rules, custom rules, TTL target customisation

• Firewall status page: View all your Firewall statistics, rules, and rule counters

• Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology: Visual representation of your network, showing which devices are connected to which other devices

• DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS: Supported >25 service providers, others can be configured manually

• DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network Backup: VRRP, Wired options, each of which can be used as an automatic Failover, Wi-Fi WAN, Mobile

• Load balancing: Balance Internet traffic over multiple WAN connections

• Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• SSHFS: Possibility to mount remote file system via SSH protocol

• Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN: Port and tag-based VLAN separation

• Mobile Quota Control: Mobile data limit, customizable period, start time, warning limit, phone number

• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control: Flexible access control of SSH, Web interface, CLI and Telnet

• SSL certificate generation: Let's encrypt support

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods

• OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256

• IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)

• GRE: GRE tunnel, GRE tunnel over IPsec support

• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support

• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code

• DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support

• SSTP: SSTP client instance support

• ZeroTier: ZeroTier VPN client support

• WireGuard: WireGuard VPN client and server support

• Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

• Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol

OPC UA

• Supported Modes: Client, Server

• Supported Connection Types: TCP

MODBUS

• Supported Modes: Server, Client

• Supported Connection Types: TCP

• Custom Registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality

• Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

• Protocol: HTTP(S), MQTT, Azure MQTT

• Data to Server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

• Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

• Supported modes: Station, Outstation

• Supported connection: TCP

DLMS

• DLMS Support: DLMS - standard protocol for utility meter data exchange

• Supported modes: Client

• Supported connection types: TCP

API

• Teltonika Networks Web API (beta) Support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status

• FOTA: Firmware update from server, automatic notification

• SSH: SSH (v1, v2)

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET

• Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off

• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem

• MQTT: MQTT Broker, MQTT publisher

• SNMP

  SNMP (v1, v2, v3), SNMP Trap, Brute force protection

• JSON-RPC: Management API over HTTP/HTTPS

• MODBUS: MODBUS TCP status/control

• RMS: Teltonika Remote Management System (RMS)

IoT Platforms

• ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type

• Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions

• Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc

• RAM: 128 MB, DDR2

• FLASH storage: 16 MB serial NOR flash

Firmware / Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup

• FOTA: Update FW

• RMS: Update FW/configuration for multiple devices at once

• Keep Settings: Update FW without losing current configuration

• Factory Settings Reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating System: RutOS (OpenWrt based Linux OS)

• Supported Languages: Busybox shell, Lua, C, C++

• Development Tools: SDK package with build environment provided

• GPL Customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs

• Package Manager: The Package Manager is a service used to install additional software on the device

Input / Output

• Input: Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high

• Output: Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA

• Events: Email, RMS, SMS

• I/O juggler: Allows to set certain I/O conditions to initiate event

Power

• Connector: 4-pin industrial DC power socket

• Input Voltage Range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection

• PoE (Passive): Passive PoE (Optional - different hardware required; contact your sales manager)

• Power Consumption: Idle: < 2.4 W, Max: < 4.7 W

Physical Interfaces

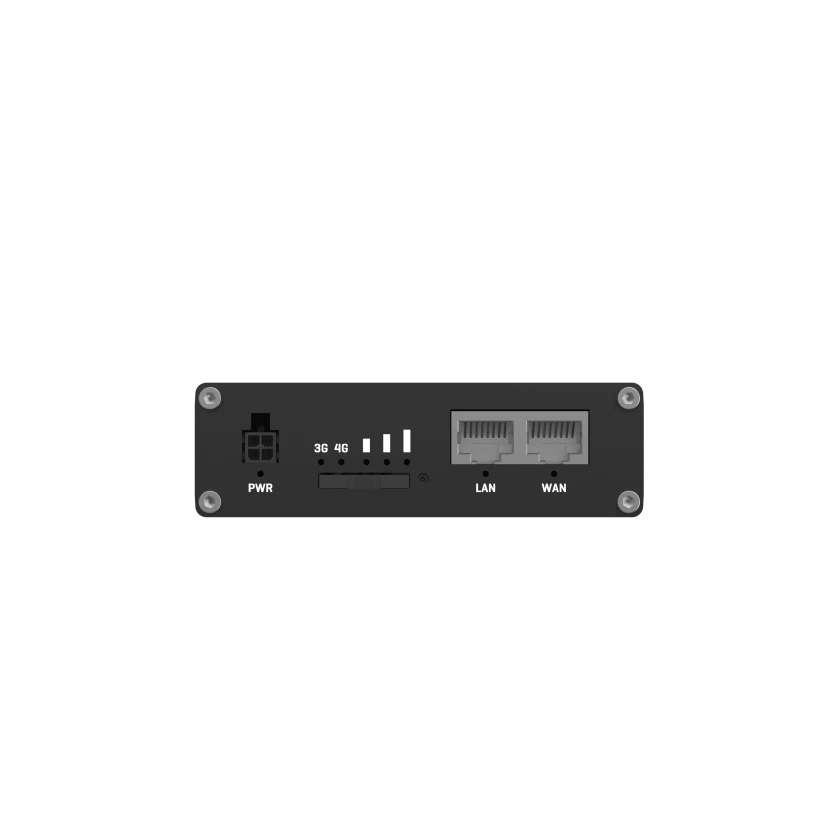

• Ethernet: 2 x RJ45 ports, 10/100 Mbps

• I/O’s: 2 x Configurable I/O pins on 4-pin power connector

• Status LEDs: 2 x Mobile connection type, 3 x Mobile connection strength, 2 x Eth status, 1 x Power

• SIM: 1 x SIM slot (Mini SIM - 2FF), 1.8 V/3 V, external SIM holder

• Power: 1 x 4-pin power connector

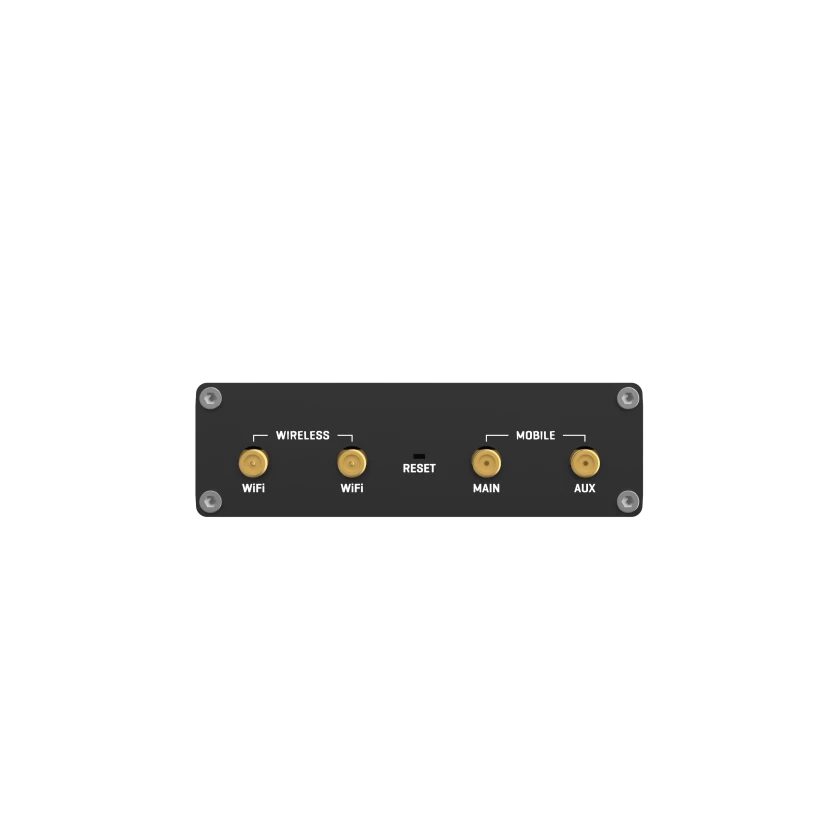

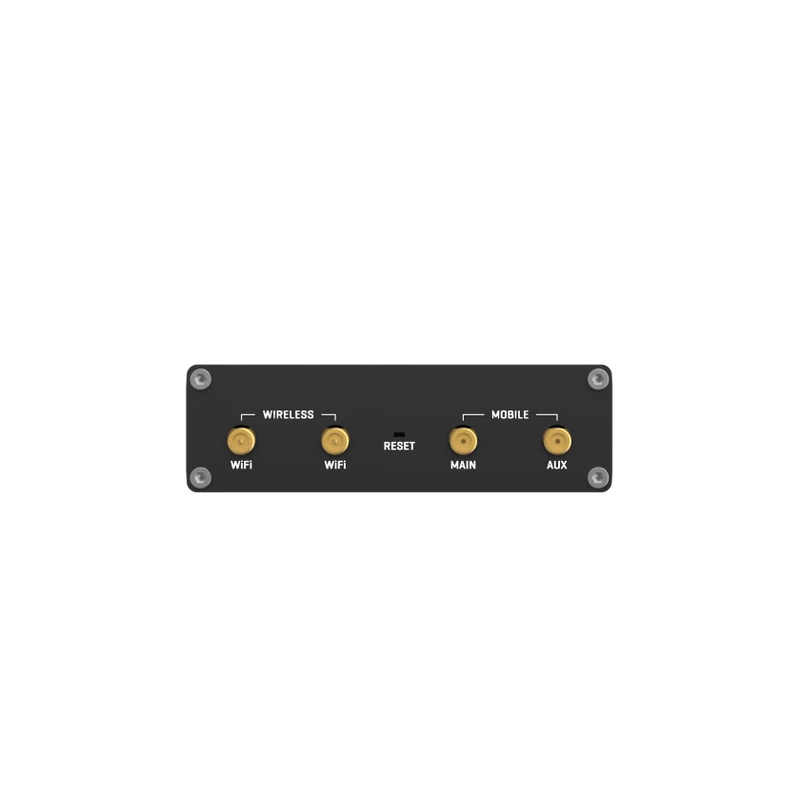

• Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi

• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing

• Dimensions (W x H x D): 100 x 30 x 85 mm

• Weight: 243 g

• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating Temperature: -40 °C to 75 °C

• Operating Humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UKCA,FCC, IC, RCM, CB, WEEE, RoHS, REACH

EMC Emissions & Immunity

• Standards: EN 55032:2015 + A11:2020 + A1:2020 / EN 55035:2017 + A11:2020 / EN IEC 61000-3-2:2019 + A1:2021 / EN 61000-3-3:2013 + A1:2019 + A2:2021 / EN 301 489-1 V2.2.3 / EN 301 489-17 V3.2.4 / EN 301 489-52 V1.2.1

• ESD: EN 61000-4-2:2009

• Radiated Immunity: EN IEC 61000-4-3: 2020

• EFT: EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017

• CS: EN 61000-4-6:2014

• DIP: EN IEC 61000-4-11:2020

RF

• Standards: EN 300 328 V2.2.2 /  EN 301 908-1 V15.2.1 / EN 301 908-2 V13.1.1 / EN 301 908-13 V13.2.1

Safety

• Standards: CE: EN 62368-1:2014 + A11:2017, EN IEC 62232:2017, EN 50385:2017 / RCM: AS/NZS 62368.1:2018 / CB: IEC 62368-1:2018

Safety (Ordinary Locations)

• Standards: CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017 / RCM: AS/NZS 62368.1:2022 / CB: IEC 62368-1:2018
