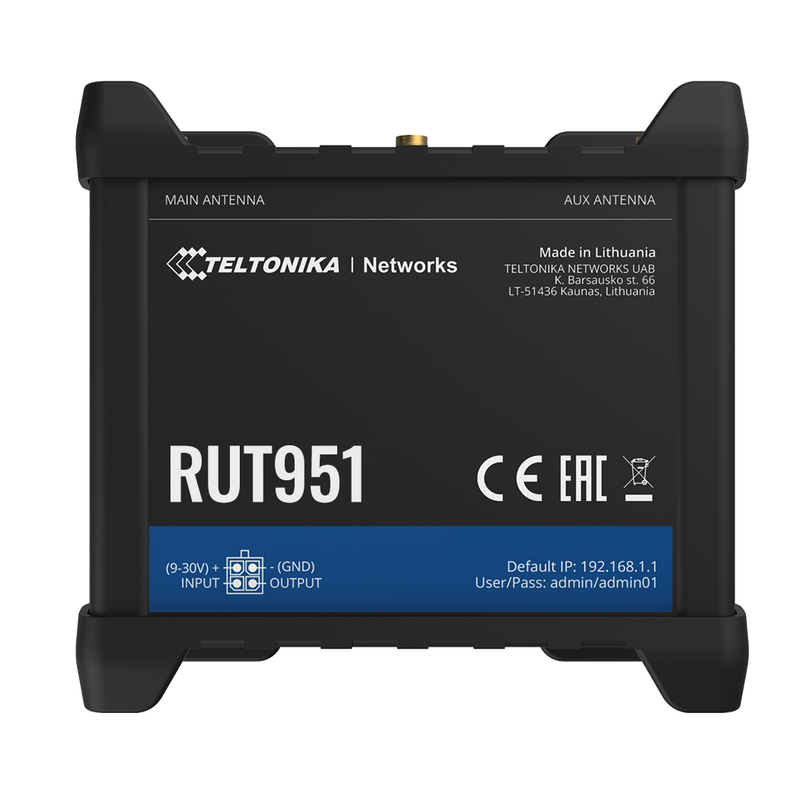

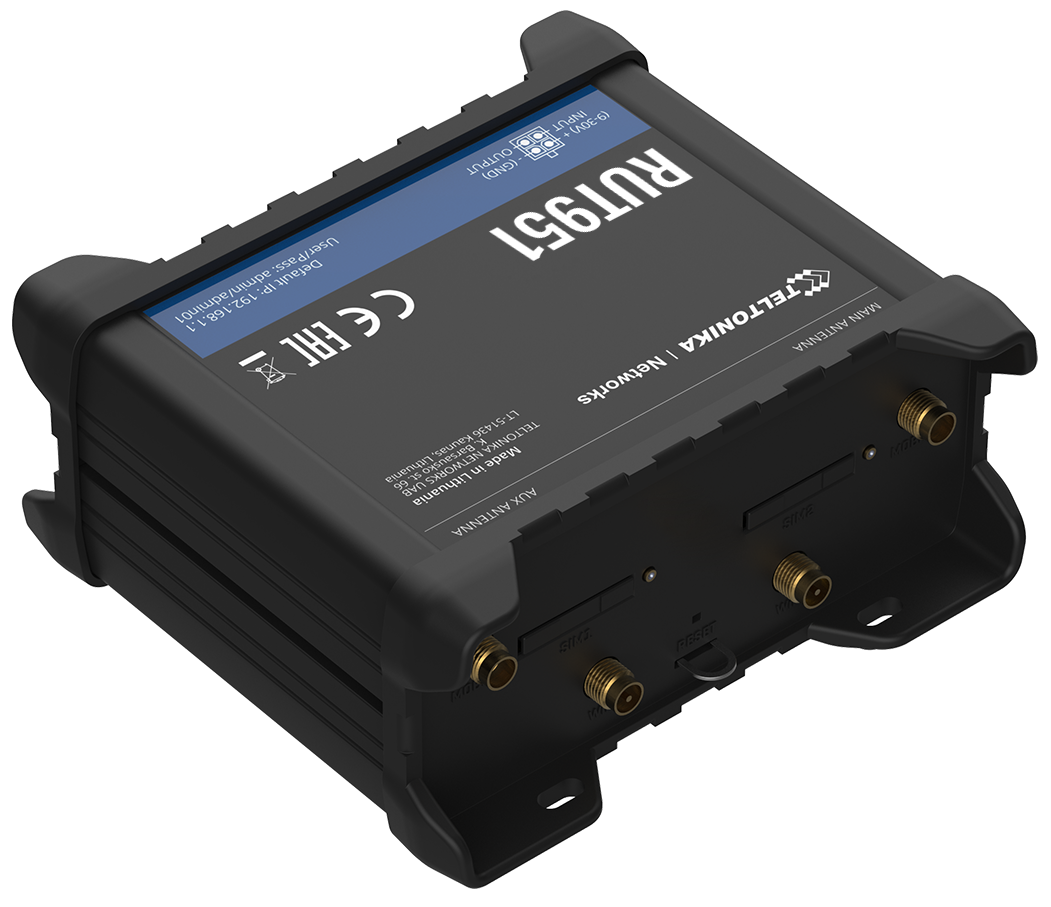

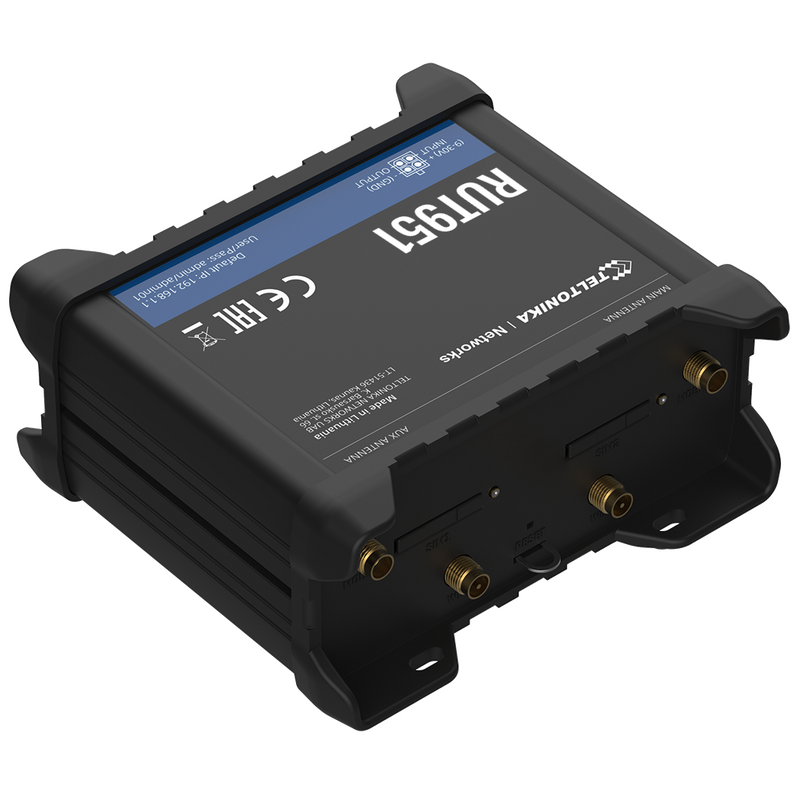

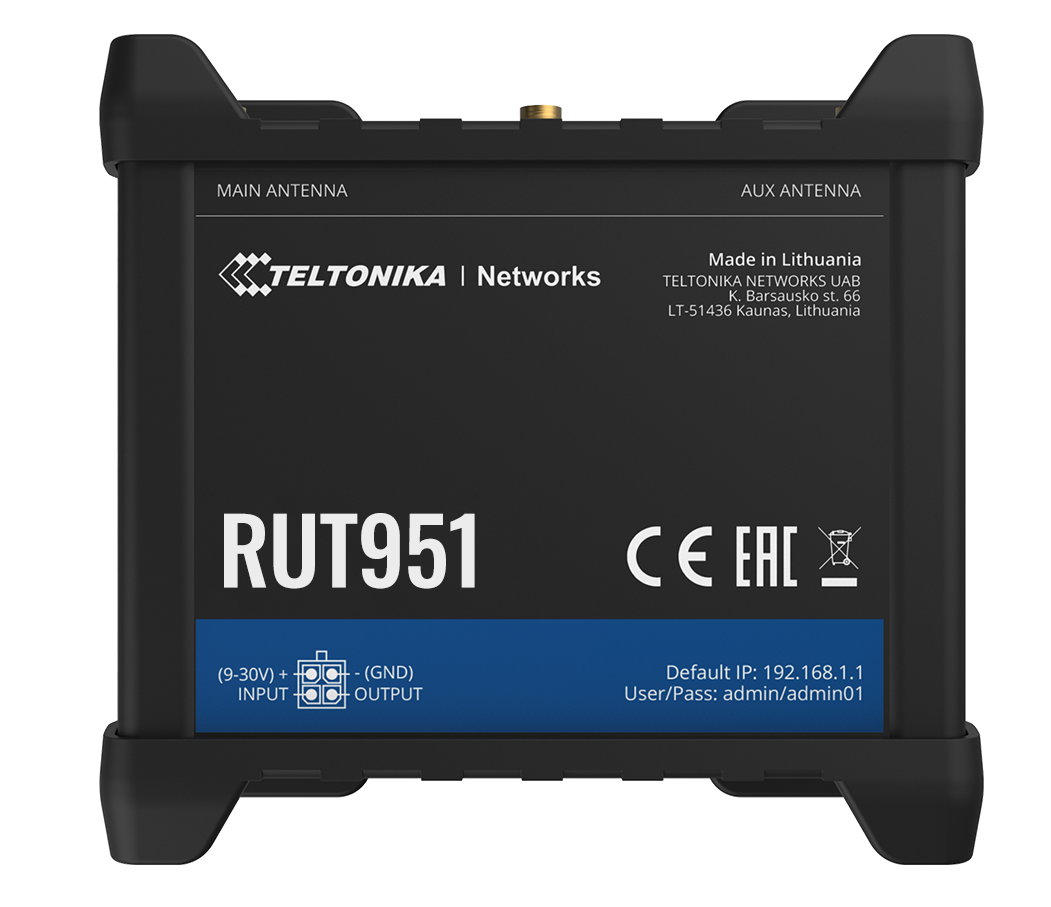

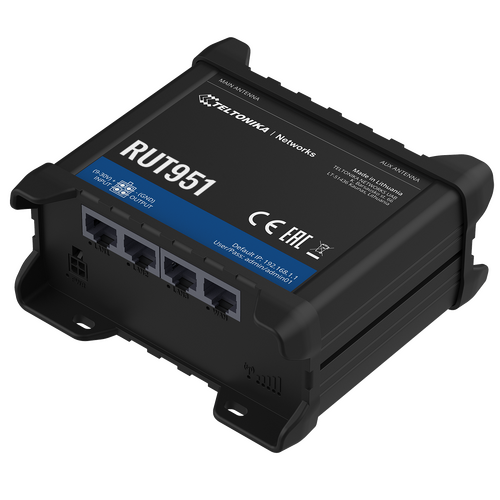

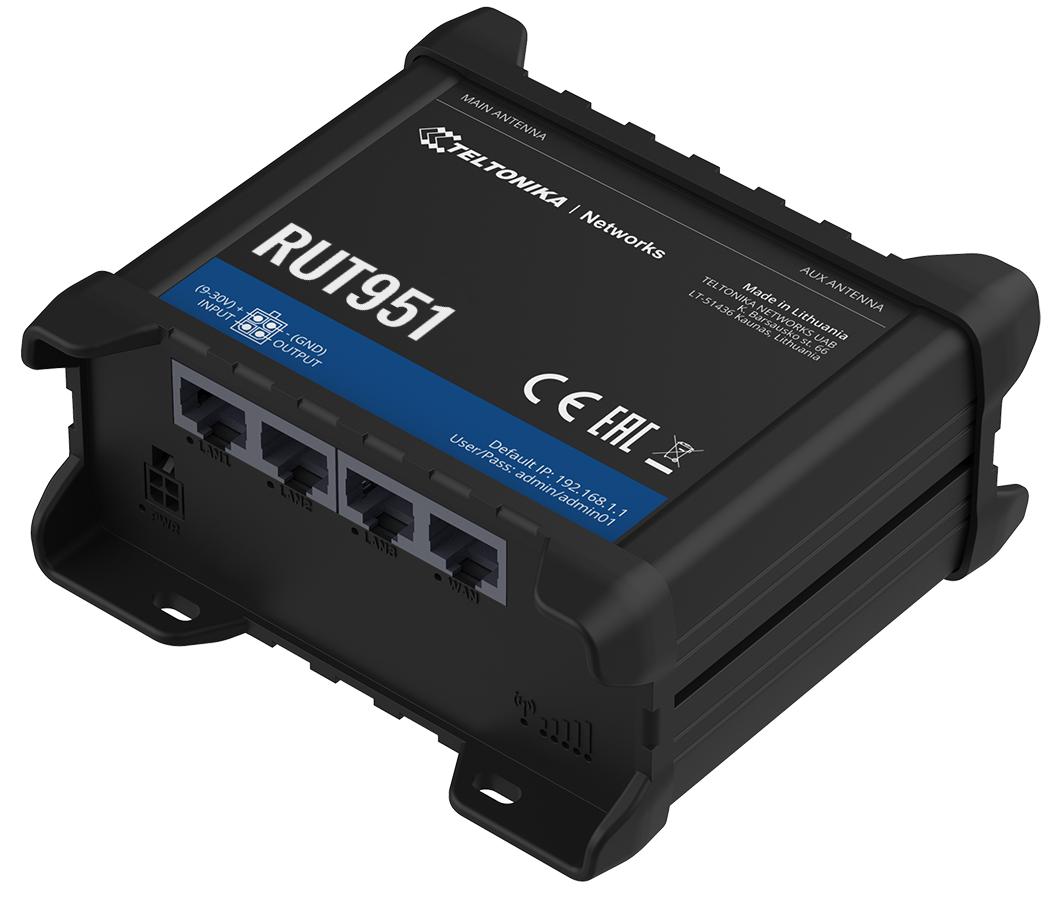

Teltonika RUT951 3G+ 4G Modem Router

Key Features

• Teltonika RUT951 took the best features from one of the most popular Teltonika Networks cellular routers - RUT950.

• This device features dual SIM 4G cellular connectivity combined with Wi-Fi and 4 Ethernet interfaces to meet the needs of the most varied IoT solutions.

• Automatic WAN failover to an available backup connection ensures network continuity and eliminates downtime.

• Powered by RutOS that offers customization options for professional use, automation features, and top-level security for your solution.

• Compatible with the Teltonika Networks Remote Management System (RMS) enables secure remote management to save time and expenses.

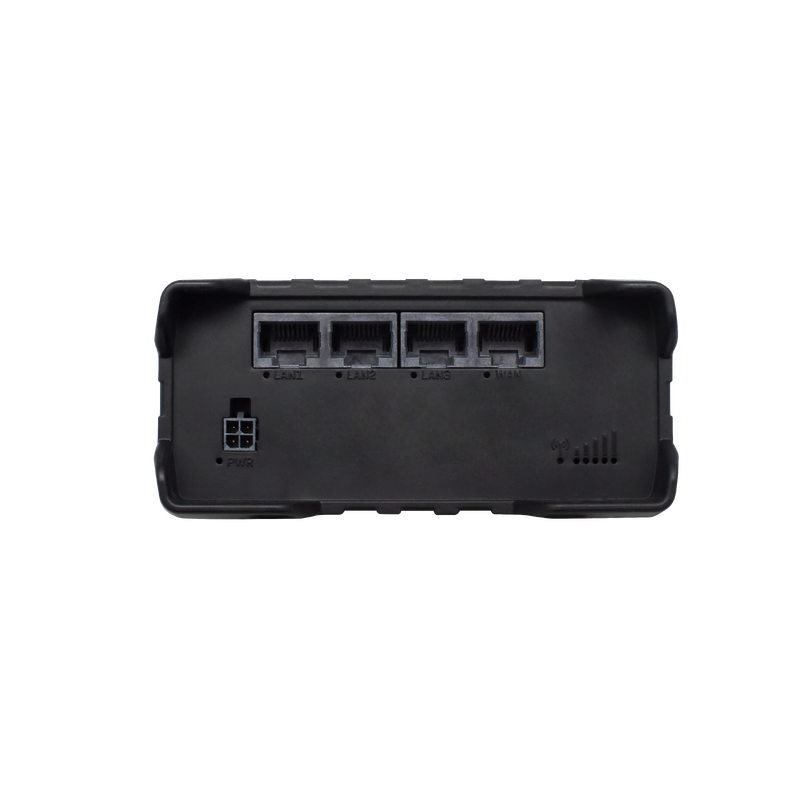

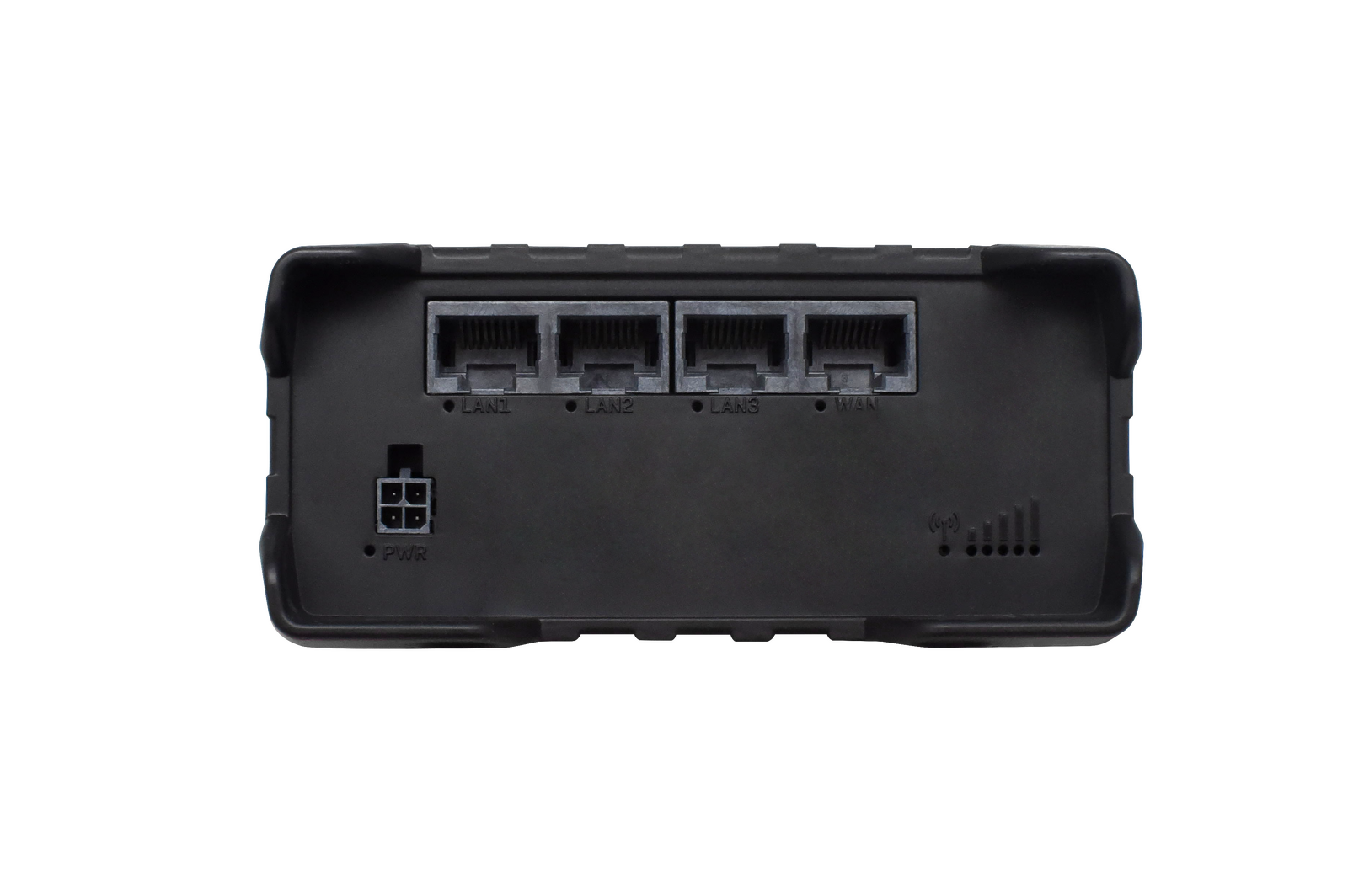

• 3x LAN, 1x WAN 10/100 Ethernet Ports

• 2.4 GHz 802.11n WiFi 2X2 MIMO

• 9 to 36 Vdc Molex connector with 240 Vac power supply

• Can be powered by Passive PoE injector on LAN1 port

• Dynamic DNS, DHCP Relay, Web filters

• 2x Removable Cellular Antennas, 2x WiFi antennas

• SMS Config & Ping reboot

• Dual SIM (standard size) with carrier failover.

• Telstra.Corp and Private APNs fully functional

• 4G (LTE) - Cat 4 Up to 150 Mbps (but limited to 100Mbps by ethernet port)

• 3G – Up to 42 Mbps

• 2G – Up to 236.8 kbps

Usage

• RUT951 is a wireless 3G/4G mobile broadband solution suitable for:

  • Wind Energy

  • Utilities

  • Transportation

  • Small Business

  • Construction

  • ATM

  • Field Service

  • And so much more.

Important

• This product is for IT professionals.

Specifications

Connection Specifications

• WiFi: IEEE 802.11/b/g/n Wi-Fi standards

• SIM Size - standard size SIM

• Ethernet: IEEE 802.3, IEEE 802.3u / 3x LAN 1x WAN 10/100 Mbps port

• 2G: 850/900/1800/1900 MHz

• 3G DC-HSPA+: 850/900/1900/2100 MHz

• 4G LTE Cat-4: FDD 700/800/850/900/1800/1900/2100/2600 MHz

Hardware Specifications

•  Weight: 285g

• Dimensions: 50 x 110 x 100mm (H x W x D)

• Power Input: 100-240 Vac > 9 Vdc wall adapter

• Input Voltage: 9-30 Vdc

• Operating Temperature: -20 to 55 °C

  • * If you reuquire extended temperature support, consider X1 Pro rated to + 75 °C
