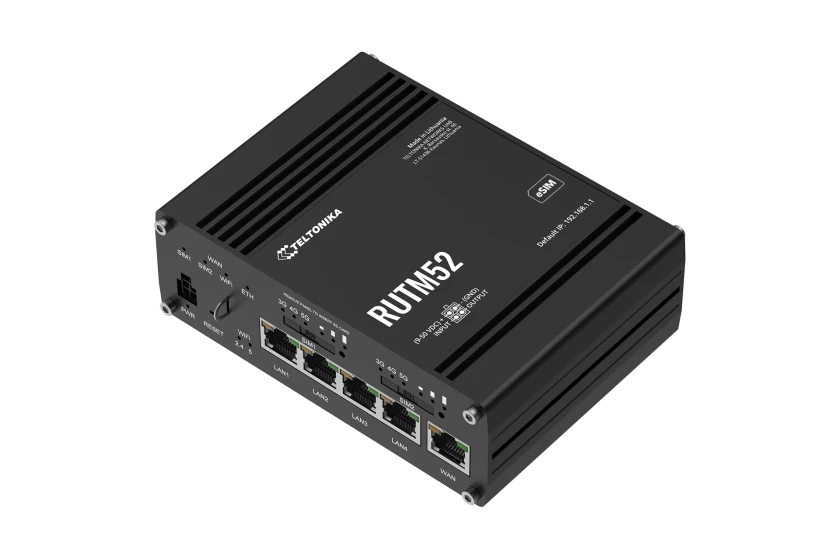

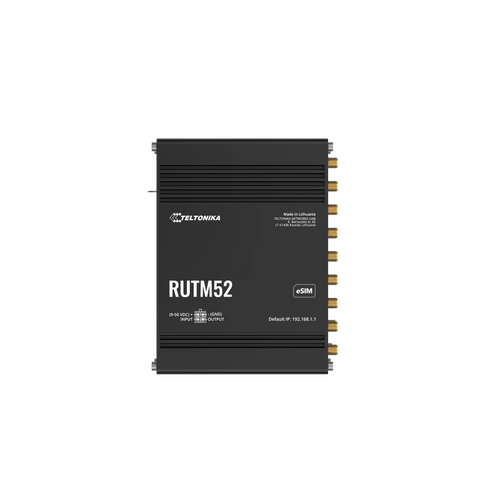

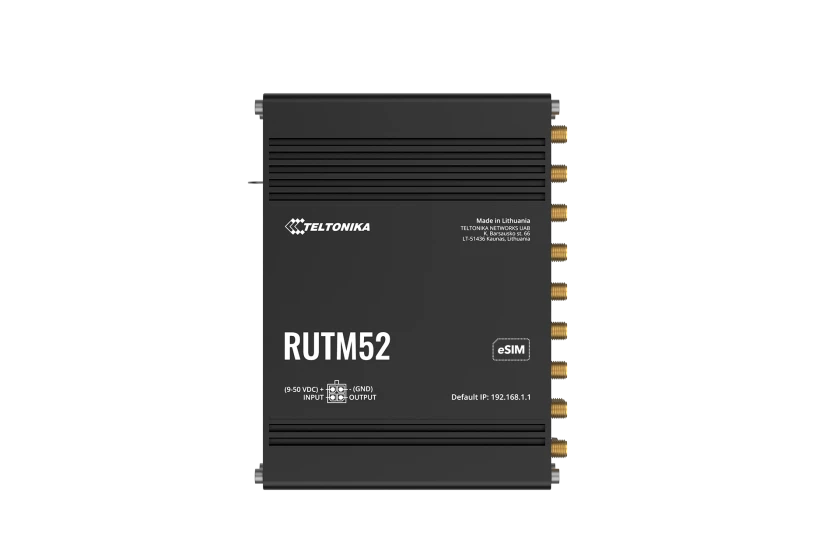

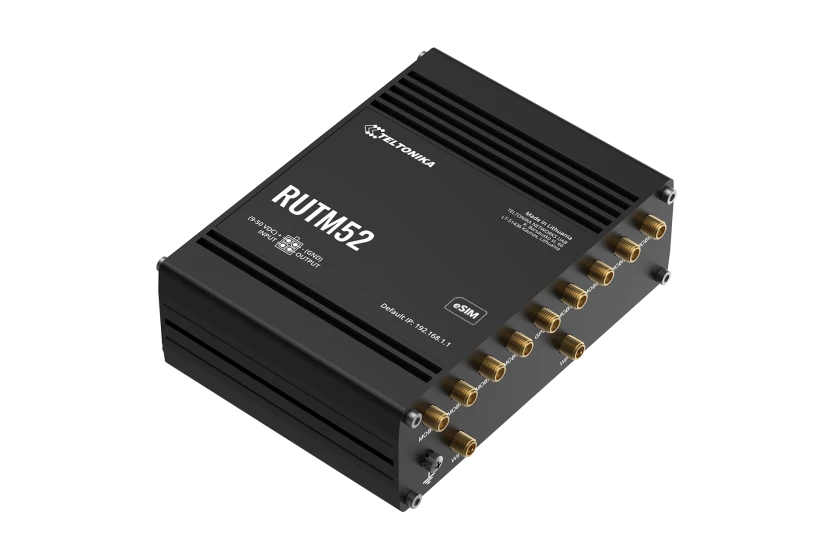

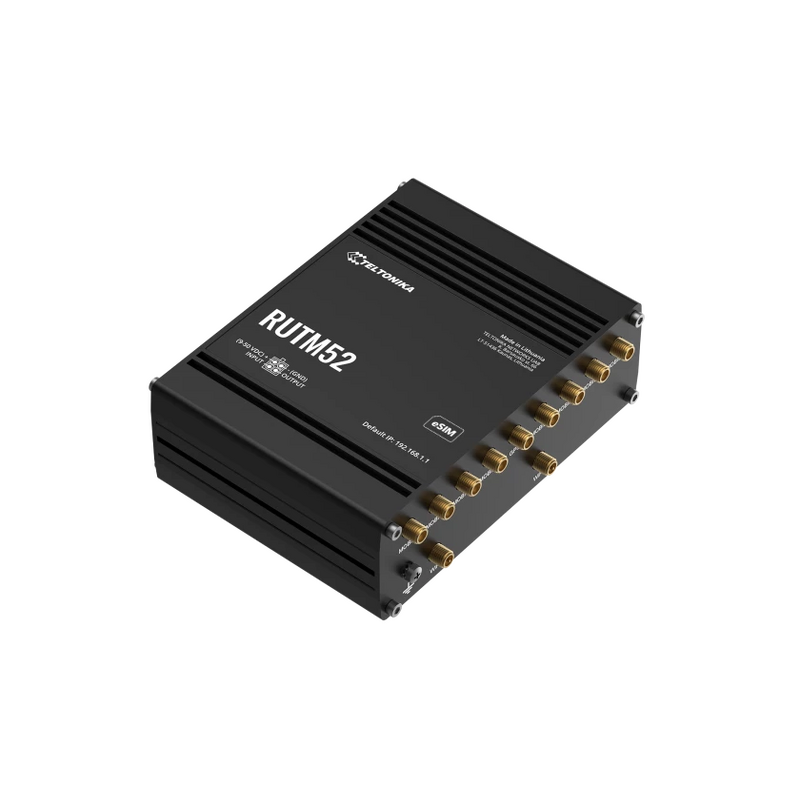

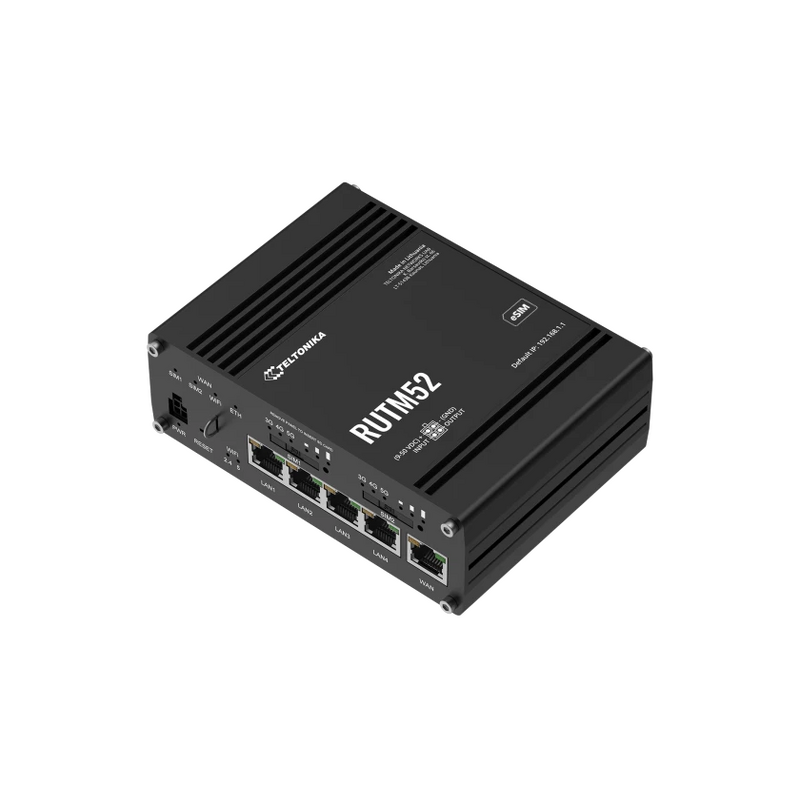

Teltonika RUTM52 Dual 5G Router

Key Features:

• DUAL 5G MODEM - Up to double cellular speeds and always-on connection

• DUAL SIM & eSIM™ - With auto failover, backup WAN and other switching scenarios

• SA & NSA Supports both architectures to leverage the 5G infrastructure

• FUTURE-PROOFING Backward compatible with 4G (LTE Cat 20)

The RUTM52 is an advanced 5G router engineered for mission-critical applications, equipped with dual 5G modems, multi-WAN functionality, and 4G LTE Cat 20 fallback.

The RUTM52 includes dual SIM slots, eSIM support, and is compatible with both SA and NSA 5G architectures, ensuring high-speed and reliable connectivity both now and in the future.

The RUTM52 offers features such as load balancing, Wi-Fi 5, and five Gigabit Ethernet ports further enhance its performance.

Additionally, RutOS supports industrial protocols and various VPNs, making the device adaptable for complex configurations.

With compatibility for RMS, the RUTM52 is an excellent choice for secure and efficient remote management.

Datasheet

Flyer

First Start Guide:

https://wiki.teltonika-networks.com/view/QSG_RUTM52

Manual:

https://wiki.teltonika-networks.com/view/RUTM52

Specifications:

Mobile

• Mobile module: 2 x 5G Sub-6 GHz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO) 900/600Mbps UL (2x2 MIMO); 4G (LTE): DL Cat 20 2.0Gbps (4x4 MIMO)/UL Cat 20 200Mbps; 3G: 42 Mbps DL, 5.76Mbps UL

• 3GPP Release: Release 16

• eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans

• SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection

• Status: IMSI, ICCID, operator, operator state, data connection state, network type, CA indicator, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC

• SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP

• USSD: Supports sending and reading Unstructured Supplementary Service Data messages

• Black/White list: Operator black/white list (by country or separate operators)

• Multiple PDN: Possibility to use different PDNs for multiple network access and services

• Band management: Band lock, Used band status display

• SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN

• APN: Auto APN

• Bridge: Direct connection (bridge) between mobile ISP and device on LAN

• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

• Framed routing: Framed routing: support an IP network behind 5G UE

Wireless

• Wireless mode: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)

• WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID: ESSID stealth mode

• Wi-Fi users: Up to 150 simultaneous connections

• Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter: Allowlist, blocklist

• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information

• TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

• WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Input / Output

• Input

  1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high

• Output

  1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA

• Events

  Email, RMS, SMS

• I/O juggler

  Allows to set certain I/O conditions to initiate event

Power

• Connector: 4-pin industrial DC power socket

• Input voltage range: 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

• PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

• Power consumption: Idle: < 5 W, Max: < 13 W

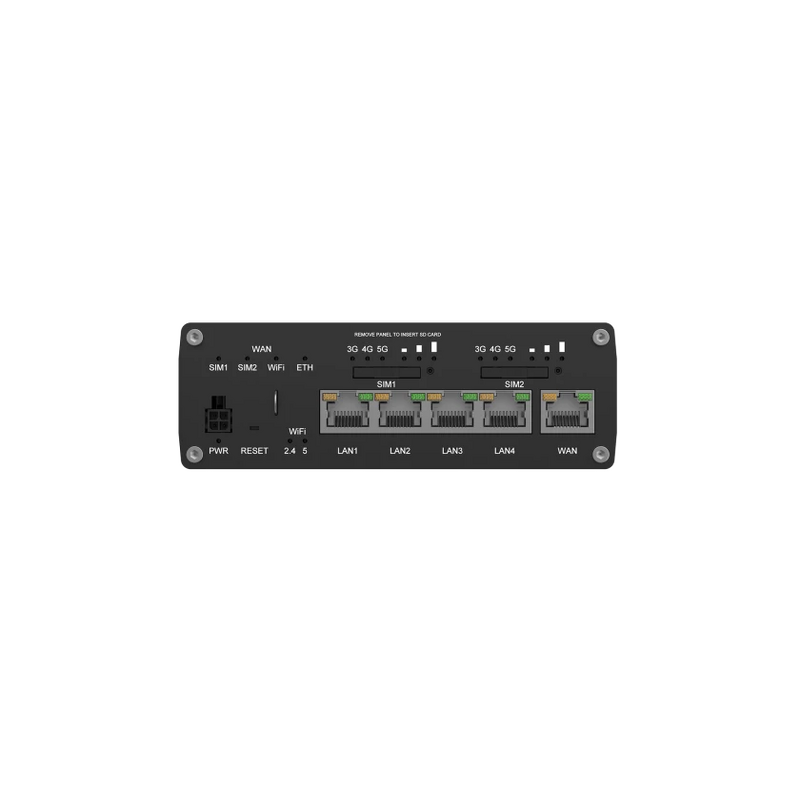

Physical Interfaces

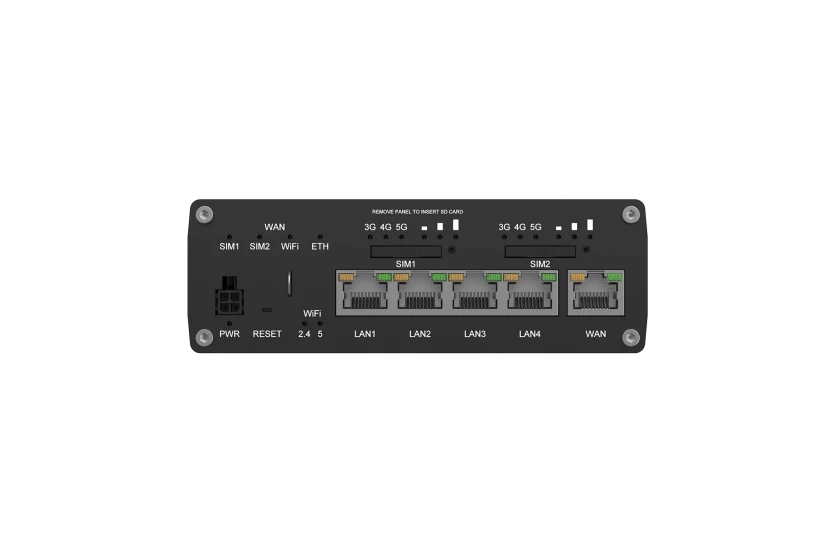

• Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps

• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs: 6 x connection status LEDs, 6 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

• SIM: 2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V

• Power: 1 x 4-pin power connector

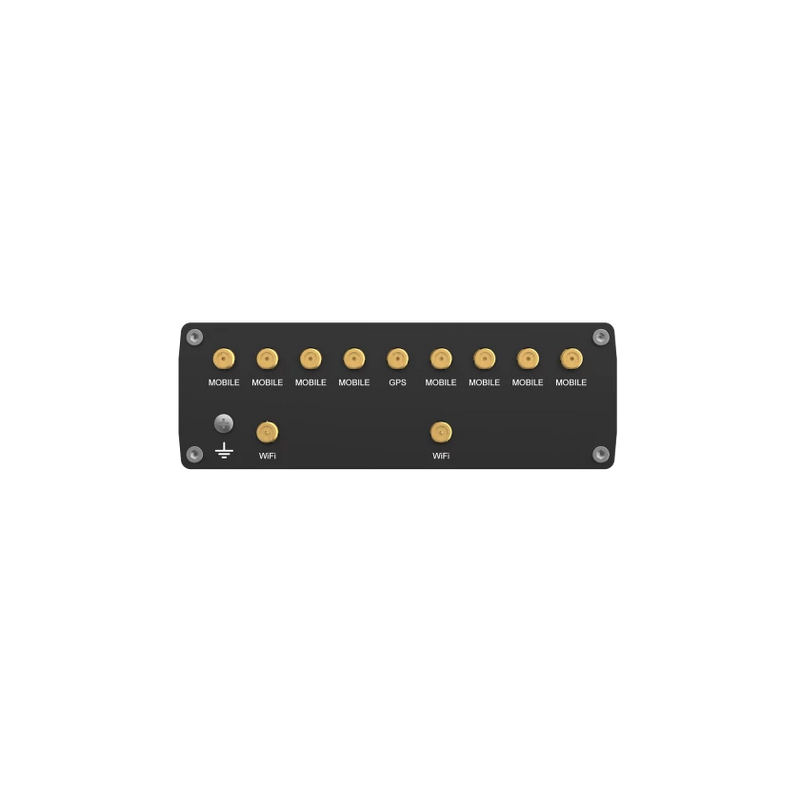

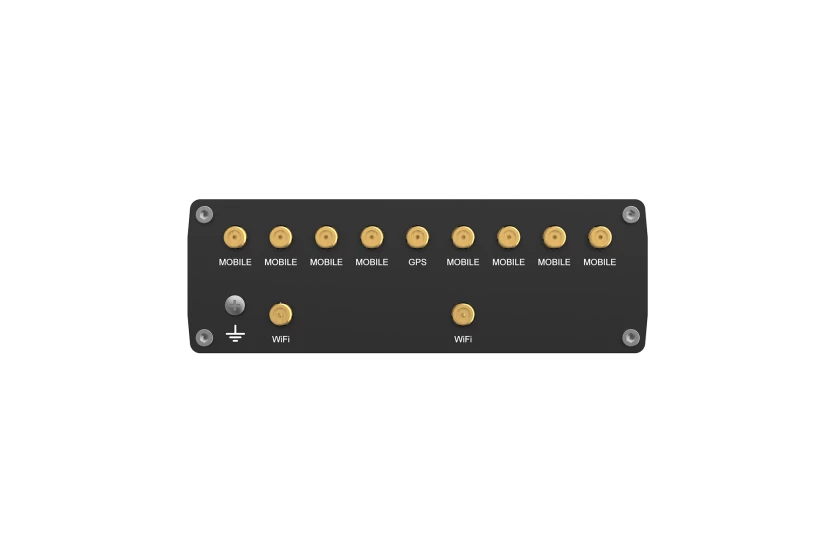

• Antennas: 8 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS

• Reset: Reboot/User default reset/Factory reset button

• Other: 1 x Grounding screw

Physical Specification

• Casing material: Anodized aluminum housing and panels

• Dimensions (W x H x D): 132 x 44.2 x 95.1 mm

• Weight: 560 g

• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 60 °C

• Operating humidity: 10% to 90% non-condensing

• Ingress Protection Rating: IP30
