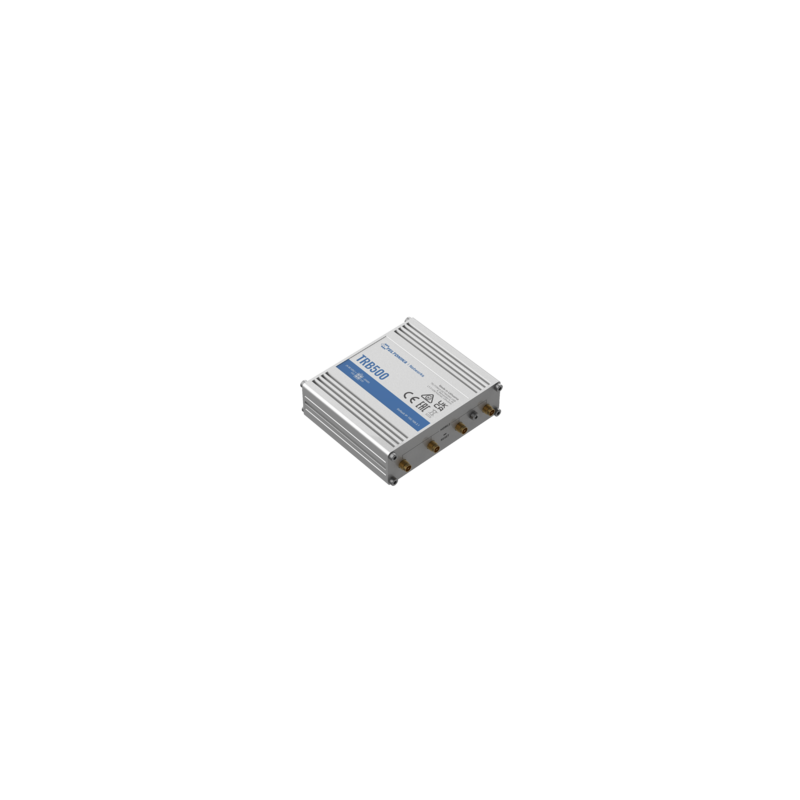

Teltonika TRB500 Industrial 5G Gateway

The TRB500 gateway is a compact-sized and energy-efficient industrial gateway with a Gigabit Ethernet interface and two configurable I/Os, allowing high-level customization and implementation of a multitude of scenarios.

  • 5G Ultra-high cellular speeds of up to 1 Gbps
  • SA & NSA Supports both architectures to leverage the 5G infrastructure
  • Single-digit latency for mission-critical applications
  • Configurable Inputs/Outputs for remote monitoring and control
  • One of the smallest 5G gateways available in the market
  • Backward compatible with 4G (LTE CAT 20) and 3G network technologies

Quick Start Manual:

https://wiki.teltonika-networks.com/view/QSG_TRB500

Manual:

https://wiki.teltonika-networks.com/view/TRB500_Manual

Specifications:


Mobile 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2);
4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU Single core ARM Cortex A7, 1,5 GHz
Flash Storage 512 MB
RAM 256 MB
Powering option 4-pin power socket, 9-30 VDC
SIM 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V

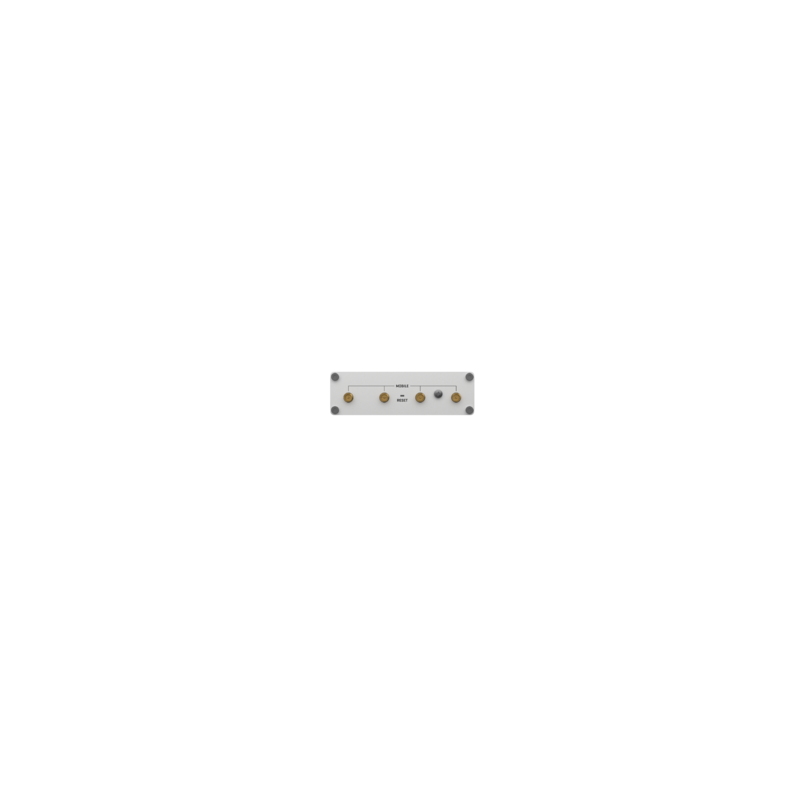

Antenna connectors 4 x SMA for Mobile

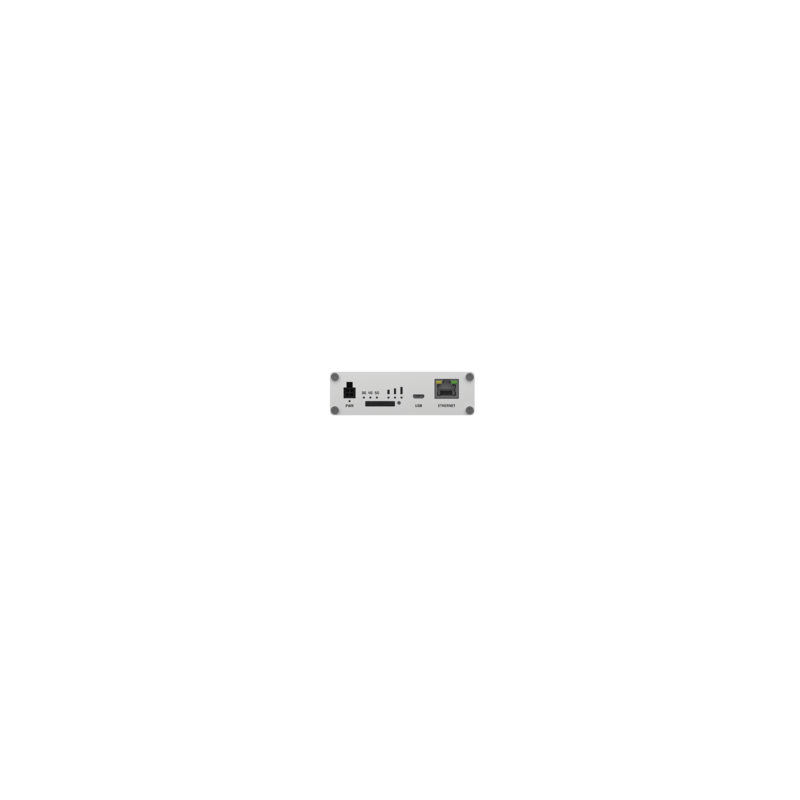

Ethernet 1 x 10/100/1000 Mbps Ethernet port
Inputs/Outputs On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
Other 1 x Micro USB slave, 1 x Grounding screw
Status LEDs 3 x connection type status LEDs, 3 x connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
Operating temperature -40° C to 75° C
Housing Aluminium housing, DIN rail (can be mounted on two sides), flat surface placement
Dimensions (W x H x D) 100 x 30 x 93.4 mm
Weight 241g



(TRB500)

SKU TRB500
