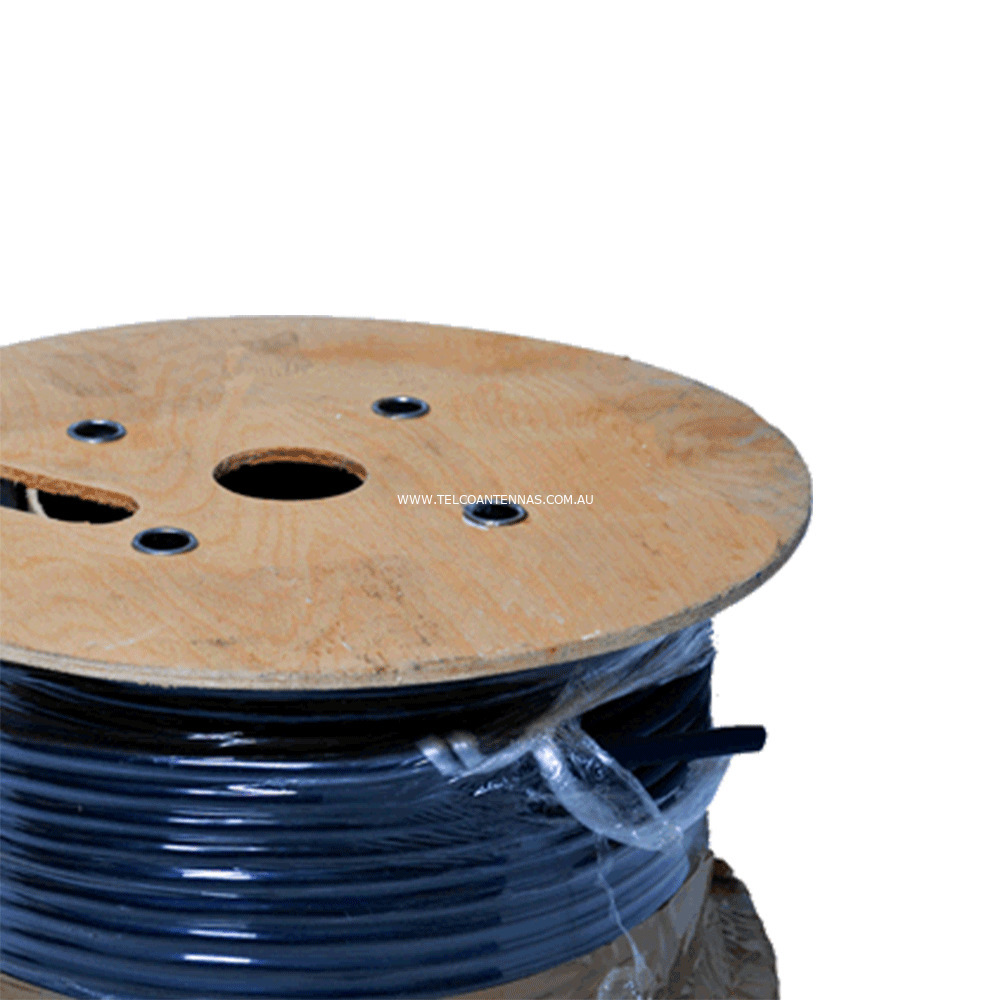

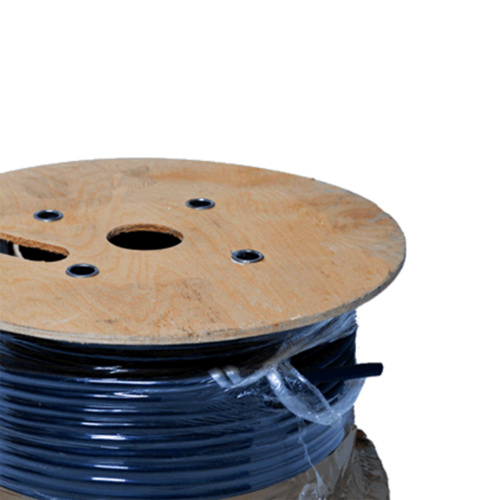

Times Microwave LMR195-UF UltraFlex Cable 100m Cable Reel



Key Features



  • Direct burial rated

  • High grade low loss antenna cable

  • Buy in bulk and save.



Usage



  • Times Microwave LMR - UltraFlex has a stranded center conductor and rubber outer jacket designed for multiple bending/ flexing cycles

  • Used for both indoor and outdoor applications

  • Flexibility and bendability are hallmarks of the LMR-195-UF cable design

  • The flexible outer conductor enables the tightest bend radius available for any cable of similar size and performance.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 83.3pF/m

  • Signal Loss: 0.36dB/m @ 850MHz, 0.53dB/m @ 1800MHz

  • Frequency Range: DC-6GHz

  • Velocity of Propagation: 76%

  • Nominal Delay: 4.17ns/m

  • Voltage Withstand: 1000Volts DC

  • Peak Power: 2.5kW



Mechanical Specifications



  • Weight: 0.03kg/m

  • Operating Temperature: -40° ~ +85°C

  • Minimum Bend Radius: 12.7mm

  • Inner Conductor: Stranded BC (0.97mm)

  • Insulating Material: Foam Polyethylene (2.79mm)

  • Outer Shield Material:

    • (1) Aluminum Tape 100% Coverage (2.95mm)

    • (2) Tinned Copper Wire 88% Coverage (3.53mm)

  • Outer Jacket Material: Black Thermoplastic Elastomer (4.95mm ±0.15mm)



times microwave logo png

(LMR195-UF)

SKU LMR195-UF
Brand Times Microwave
Shipping Width 0.260m
Shipping Height 0.135m
Shipping Length 0.260m
Shipping Cubic 0.009126000m3
