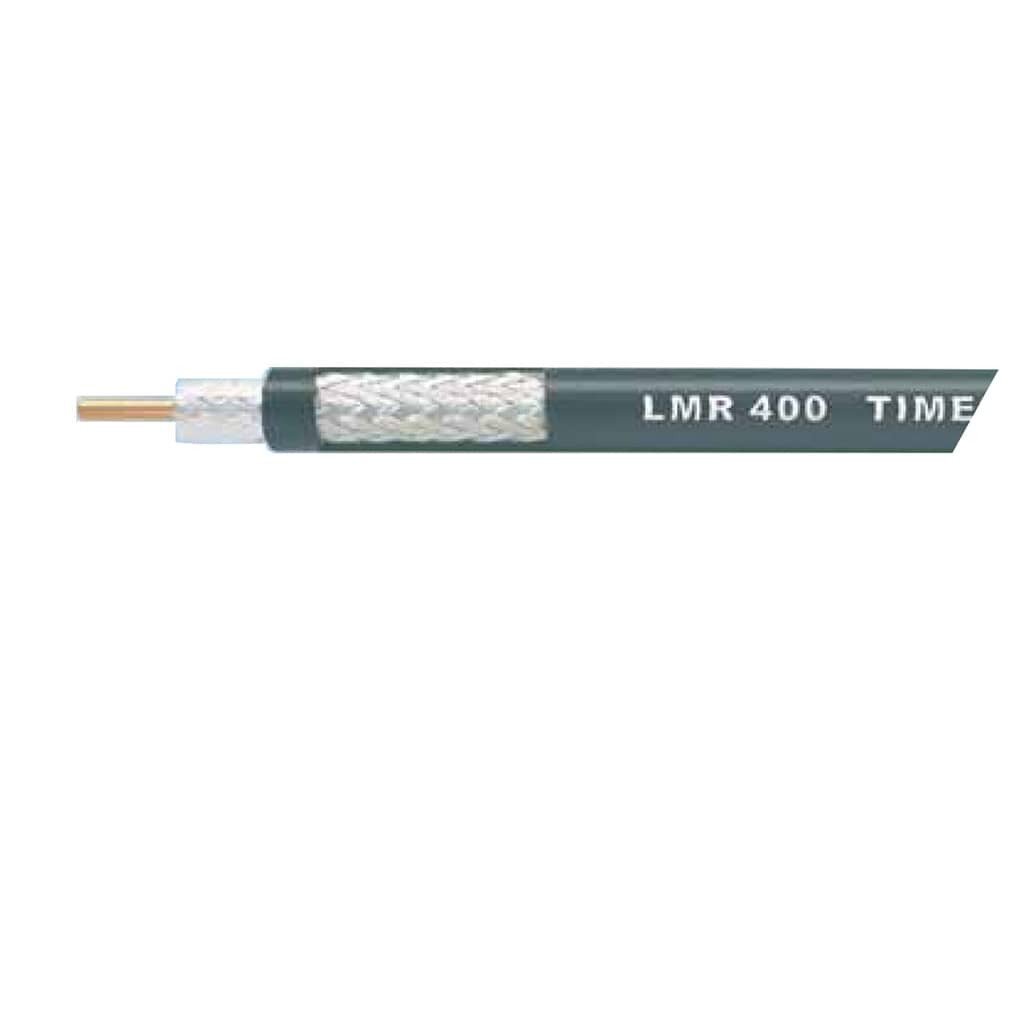

Times Microwave Super Low Loss 50Ω Cable - Per Metre



Key Features



  • LMR400 50Ω cabling

  • Times Microwave LMR-400 communications cable

  • UV Resistant Polyethylene jacketed cable



Usage



  • The highest grade antenna cable, recommended for any performance critical, industrial, and harsh environmental applications

  • Its exceptional performance is achieved with a much thicker diameter (10mm) and greatly reduced flexibility (25.4mm minimum bend diameter)

  • LMR-400 cables are designed for outdoor exposure, as they incorporate the best UV resistance materials and have an expected life expectancy of over 20 years.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss: 0.12dB/m @ 850MHz, 0.20dB/m @ 2100MHz

  • Frequency Range: DC-16.2GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts DC

  • Peak Power: 16kW



Mechanical Specifications



  • Weight/100m: 10kg

  • Minimum Bend Radius: 25.4mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

  • Conductor Material: Aluminum; Copper, Tinned

  • Conductor Diameter: 2.74mm

  • Insulating Material: Foamed Polyethylene

  • Shield Material: Aluminum; Copper, Tinned

  • Outer Jacket Material: PE Outer Diameter: 10.3mm



times microwave logo png



(LMR400-PM)

SKU LMR400-PM
Brand Times Microwave
Shipping Weight 0.9000kg
Shipping Width 0.110m
Shipping Height 0.170m
Shipping Length 0.110m
Shipping Cubic 0.002057000m3
