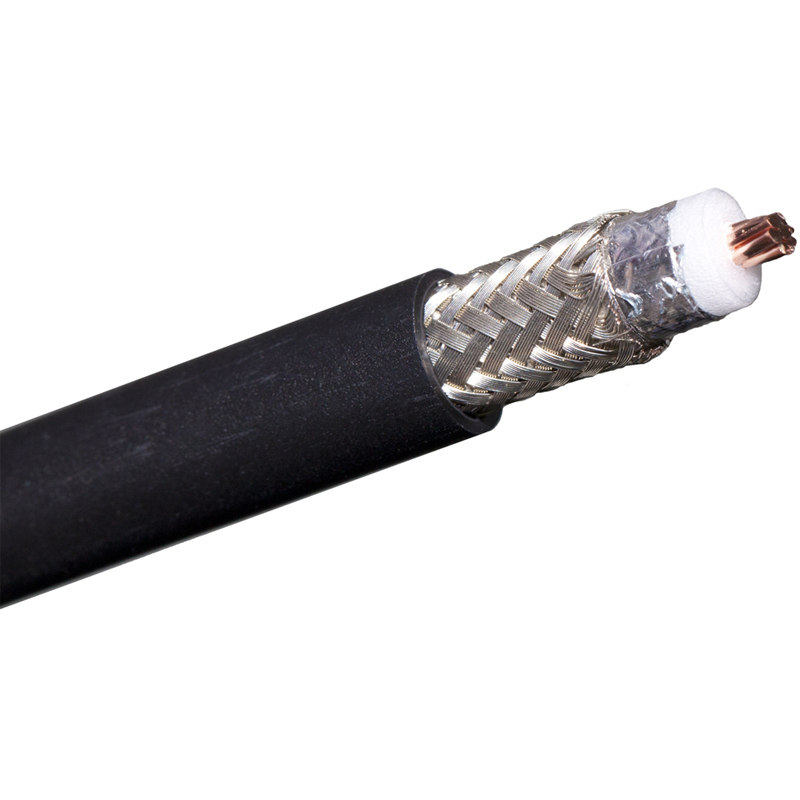

Times Microwave Ultra Flex Super Low Loss LMR400 50Ω Cable - Per Metre



Key Features



  • LMR-400-UF ultraflex 50Ω cabling

  • Ultra-flexible 7-strand bare copper core

  • Times Microwave LMR-400-UF communications cable.



Usage



  • The highest grade antenna cable, recommended for any performance critical, industrial, and harsh environmental applications

  • Its exceptional performance is achieved with a much thicker diameter (10mm), the Ultra Flex variant is designed for multiple bend operation and flexing cycles

  • LMR-400 Ultra Flex achieves a greater level of flexibility and is designed for constant bending and flexing cycles

  • To achieve such versatility the cable's inner conductor is constructed from 7 strands of bare copper and has a rubber (TPE) outer jacket.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Capacitance: 78.4pF/m

  • Signal Loss: 0.12dB/m @ 850MHz, 0.20dB/m @ 2100MHz

  • Frequency Range: DC-16.2GHz

  • Velocity of Propagation: 85%

  • Nominal Delay: 3.92ns/m

  • Voltage Withstand: 2500Volts DC

  • Peak Power: 16kW



Mechanical Specifications



  • Weight/100m: 10kg

  • Minimum Bend Radius: 25.4mm

  • Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)

  • Conductor Material: 7 Strand Bare Copper

  • Conductor Diameter: 2.74mm

  • Insulating Material: Gas Injected Foamed Polyethylene

  • Outer Shield Material:

    • (1) Bonded Aluminium Polyester Tape 100% Coverage

    • (2) Tinned Copper Braid 86% Coverage

  • Outer Jacket Material: TPE

  • Outer Diameter: 10.3mm



A heads up!



  • Stock Information: This item is not always stored at our Queensland warehouse, but is typically available within 24-48 hours from order.



times microwave logo png

(LMR400-UF)

SKU LMR400-UF
Brand Times Microwave
Shipping Weight 16.0000kg
Shipping Width 0.310m
Shipping Height 0.270m
Shipping Length 0.310m
Shipping Cubic 0.025947000m3
