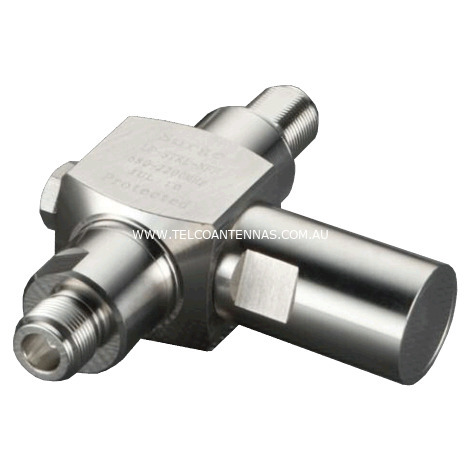

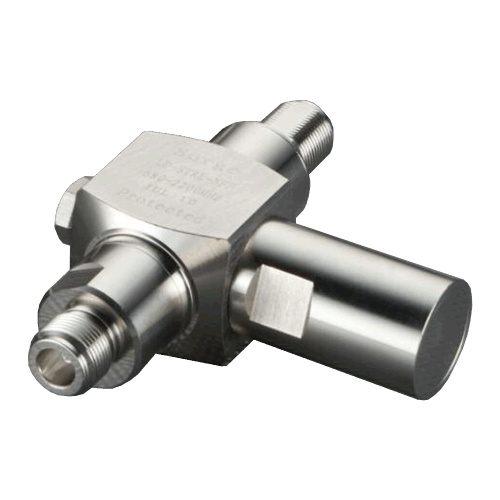

Times Microwave N Female DC Block Lightning Arrester - Industrial Grade



Key Features



  • N Female Bulkhead to N Female connectors

  • DC blocking protection circuit

  • Carrier grade low PIM, low VSWR

  • Multi-strike operation.



Usage



  • The Times Protect™ LP-STRL-N high performance series is an exceptional DC blocked design for outstanding surge performance, capable of withstanding multiple lightning strikes

  • The operating band width of 680MHz-2200MHz makes the LP-STRL-N series suitable for a broad range of applications

  • This design covers the 700MHz Band for Public Safety Services as well as LTE (Long Term Evolution) applications

  • With its excellent passive intermodulation performance, outstanding RF performance over the entire operating band and superior power handling capability, the LP-STRL-N product family is unequalled.

  • Its fully weatherised housing meeting IP67 standard allows for outdoor as well as indoor installation.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 680-2200MHz

  • Input Impedance: 50Ω

  • PIM IMD (3rd): <-160dBc

  • VSWR: <1.1:1 700-2200MHz (<-26dB RL)

  • Insertion Loss: <0.1dB

  • Average Power: 500W

  • Maximum Discharge Current: 50kA multiple @ IEC 61000-4-5 8/20us waveform



Mechanical/Environmental



  • Construction: White Bronze plated aluminium, silver plated conductors

  • Connector: N Female to N Female Bulkhead

  • Temperature: -40 to +85ºC

  • Weight: 530g

  • Dimensions: 106 x 32 x 68mm (L x W x H)



Read More





times microwave logo png

(LP-STRL-NFF)

SKU LP-STRL-NFF
Brand Times Microwave
Shipping Weight 0.0450kg
Shipping Width 0.130m
Shipping Height 0.060m
Shipping Length 0.120m
Shipping Cubic 0.000936000m3
