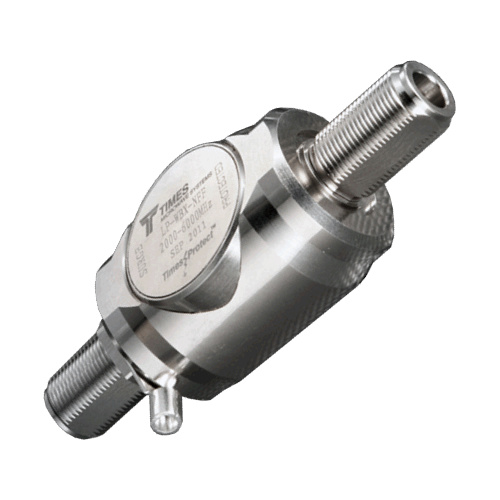

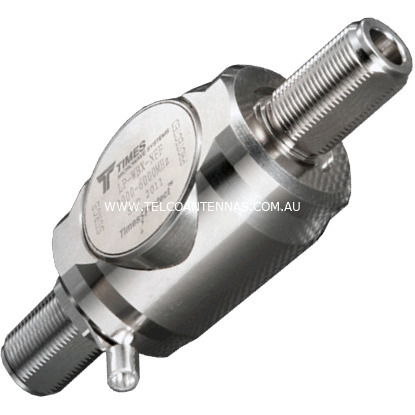

Times Microwave Bulkhead Mount Lightning Arrester



Key Features



  • N Female Bulkhead to N Female connectors

  • DC blocked protection circuit

  • Protect your antenna and device from dangerous electrical surges.



Usage



  • The LP-WBX-N high performance series uses a filter circuit to provide exceptional lightning protection over the 2000-6000MHz frequency band, covering both the unlicensed WiFi bands and several licensed operating bands

  • Unlike competitive protectors, the white bronze plated construction of the LP-WBX-N series eliminates potential galvanic corrosion issues and provides long life in hostile environments

  • The fully weatherised housing is sealed to IP65 allowing for outdoor and indoor operation.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: 2 - 6GHz I

  • nput Impedance: 50Ω

  • VSWR: <1.2:1 <-20dB RL

  • Insertion Loss: <0.2dB

  • Average Power: 50W

  • Maximum Discharge Current: 20kA once, 10kA multiple @ IEC 61000-4-5 8/20us waveform



Mechanical/Environmental



  • Construction: White bronze plated aluminium, silver plated conductors

  • Connector: N Female to N Female Bulkhead

  • Temperature: -40 to +85ºC

  • Dimensions: 106 x 38mm (L x Ø)



Read More





times microwave logo png

(LP-WBX-NFF)

SKU LP-WBX-NFF
Brand Times Microwave
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
