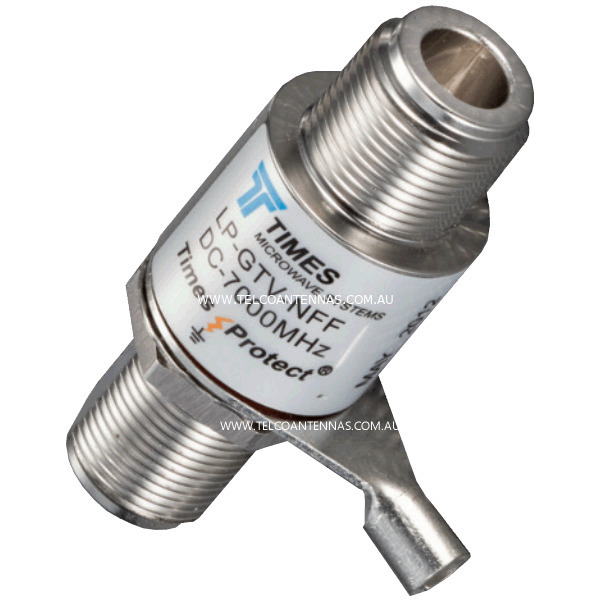

Times Microwave Bulkhead Mount Lightning Arrester



Key Features



  • N Female Bulkhead to N Female connectors

  • For devices operating 0-90W

  • Removable L bracket for bulkhead panel mounting

  • Protect your antenna and device from dangerous electrical surges.



Usage



  • Times Microwave Systems introduces the new Times-Protect® LP-GTV-N series of DC pass RF lightning and surge protection products with an extended frequency operating band from DC to 7000MHz

  • This new bidirectional design with N type female/female or female/male connectors handles up to 150 watts of RF power and allows for up 72 volts of DC voltage to be supplied on the center pin of the coaxial cable

  • The LP-GTV-N series is the perfect RF equipment protection solution for any application requiring DC voltage and current to power tower top mounted electronics

  • The LP-GTV-N product family is IP67 rated, suitable for outdoor as well as indoor installations and its white bronze plated housing ensures durability and long life.



Specifications / Frequency



Electrical Specifications



  • Frequency Range: DC - 7GHz

  • Input Impedance: 50Ω

  • VSWR: <1.2:1 DC-6700MHz, <1.3:1 6700-7000MHz

  • Insertion Loss: <0.2dB DC-6700MHz, <0.3dB 6700-7000MHz

  • Power Rating: 0-150W

  • Impulse Sparkover: 700V

  • Sparkover Voltage: 180VDC

  • Maximum Discharge Current: 10kA multiple @ IEC 61000-4-5 8/20us waveform



Mechanical/Environmental



  • Construction: White Bronze plated aluminium, silver plated conductors

  • Connector: N Female to N Female Bulkhead

  • Temperature: -55 to +85ºC

  • Weight: 40g

  • Dimensions: 60 x 22mm (L x Ø)



Read More





times microwave logo png

(LP-GTV-NFF)

SKU LP-GTV-NFF
Brand Times Microwave
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.095m
Shipping Cubic 0.000237000m3
