TNC Female Chassis Bulkhead Chassis Mount - Front Side Nut



Key Features



  • TNC socket/jack

  • Solder termination

  • Panel mount bulkhead.



Automatic Price Breaks



The price listed for this item is for a quantity of 1-24 units.

Prices will automatically incur a bulk-buy discount during checkout depending on quantity ordered.

For large orders please contact our team to arrange a quote.



  • 25-49 units = 10% Discount

  • 50-74 units = 15% Discount

  • 75-99 units = 20% Discount

  • 100-249 units = 24% Discount

  • 250-499 units = 29% Discount

  • 500-999 units = 33% Discount

  • +1000 units = 37% Discount

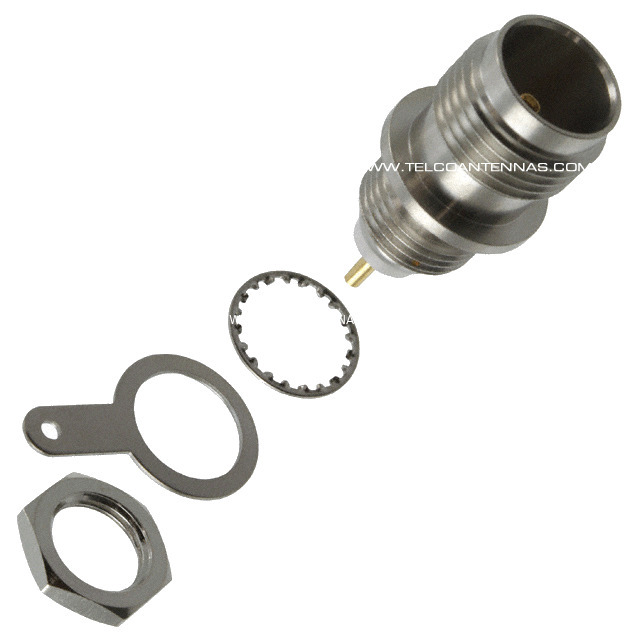

Product image representative only, for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



Specifications / Frequency



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-11GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Contact Resistance: - (1) Centre Contact: <10mΩ - (2) Outer Contact: <2.5mΩ

  • Insulation Resistance: >5000MΩ

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Crimp Ferrule Material: Copper-alloy

  • Crimp Ferrule Plating: Nickel

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • CECC 22200

  • MIL-C-39012

  • IEC 60169-17



tick rohs compliant lead free



(TNC232)

SKU TNC232
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
