TNC Female to TNC Female Bulkhead Adaptor

TNC Jack to TNC Bulkhead Jack

TNC Socket to TNC Bulkhead Socket



Key Features



  • Panel mount bulkhead

  • Waterproof gasket model also available.



What is a bulkhead?



  • A coaxial bulkhead connector is a special type of inter/intra series adapter that allows a connection through a surface

  • Bulkheads are commonly used in conjunction with wallplates so that a cable can be attached either side of the wallplate (i.e. on either end of the bulkhead) for a neat and professional looking installation

  • One side of the bulkhead has a flange for a flush mount against the surface, and the other has a hex-nut and washer for securing the bulkhead in place.

  • For large orders please contact our sales team to arrange a quote.



Specifications



Electrical Specifications



  • Resistance: 50Ω

  • Frequency Range: DC-11GHz

  • Working Voltage: 500V RMS

  • Withstand Voltage: 1500V RMS

  • Insertion Loss: <0.2dB/3GHz

  • VSWR: <1.22:1



Mechanical/Environmental Specifications



  • Durability: >500 cycles

  • Body Material: Brass

  • Plating Material: Nickel

  • Pin/Socket Contact: Brass/Beryllium-Copper

  • Pin/Socket Plating: Gold

  • Insulator: PTFE

  • Operating Temperature: -55° to 155° C

  • MIL-C-39012

  • CECC 22200

  • IEC 60169-17

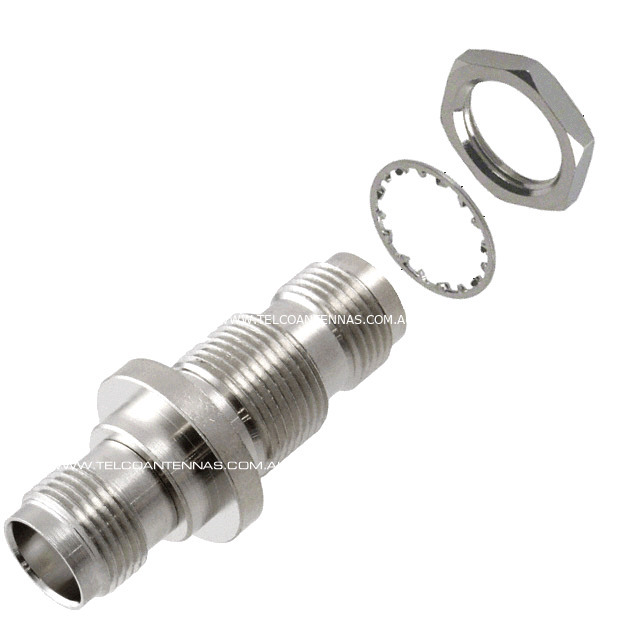

Product image is representative only - for exact dimensions and/or specification please contact us for a copy of the CAD drawing.



(TNCF-TNCF-BLK)

SKU TNCF-TNCF-BLK
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.030m
Shipping Cubic 0.000075000m3
