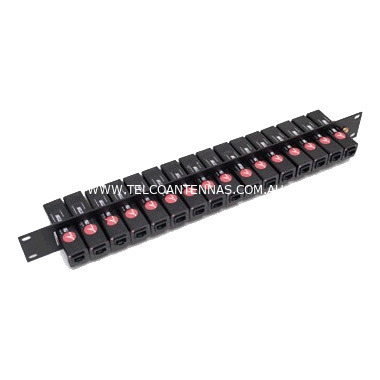

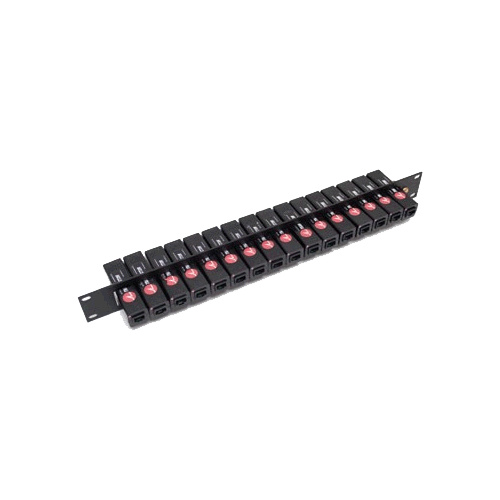

Transtector Inline DIN Rail Chassis



Key Features



  • 1RU chassis holds up to 16 modules

  • 35mm DIN rail grounding clip

  • Adjustable to fit 19” or 23” racks.



Usage



  • The 16 module wide array unit consists of individual protection modules that mount onto the 19" 1U high rack chassist with connections from the front face (LINE) through to the back face (protected EQUIP)

  • Each protection module type is marked from the front and back ends with a colour dot to distinguish circuit types per the colour legend on the front

  • Transtector's DPR series is engineered for high performance compact versatile surge protection of 10/100/1000Base-T, PoE, T1/E1, and xDSL equipment used for communcations circuits

  • The individual modules can be used as a standalone surge protection device, and also combined in DIN rail rack mount formation

  • Transtector's non-degrading, high performance advanced surge protection devices are the solution.



Specifications / Frequency



Mechanical/Environmental Specifications



  • Construction: 14ga aluminium, black powdercoat

  • Temperature: -40 to +75ºC / 99% non-condensing

  • Weight: 2400g (fully configured)

  • Dimensions: 19" wide, 1U high



Read More





(DPR-CHASSIS)

SKU DPR-CHASSIS
Shipping Weight 0.0450kg
Shipping Width 0.050m
Shipping Height 0.050m
Shipping Length 0.300m
Shipping Cubic 0.000750000m3
