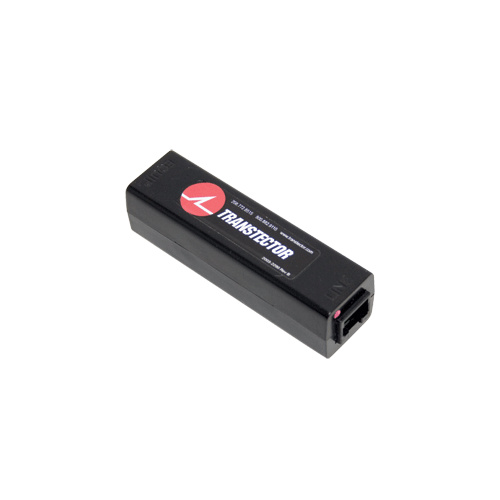

Transtector Inline Gigabit Ethernet DIN Rail Surge Protector



Key Features



  • Non-degradable, low clamping silicon diode suppression technology

  • 20V line voltage

  • 35mm DIN rail grounding clip

  • Line and load bidirectional protection



Usage



  • Unprotected pins bonded to ground Indoor, in-line 60V 1000Base-T Gigabit Ethernet DIN rail surge protector with RJ-45 Cat5 connectors in compact UL94V-0 enclosure

  • Transtector's DPR series is engineered for high performance compact versatile surge protection of 10/100/1000Base-T, PoE, T1/E1, and xDSL equipment used for communcations circuits

  • The individual modules can be used as a standalone surge protection device, and also combined in DIN rail rack mount formation

  • Transtector's non-degrading, high performance advanced surge protection devices are the solution

  • Each protection module type is marked from the front and back ends with a colour dot to distinguish circuit types per the colour legend on the front.



Specifications / Frequency



Electrical Specifications



  • Data Rate: 1000Mbps

  • Input Impedance: 100Ω

  • Insertion Loss: <1dB @ 16MHz

  • Sparkover Voltage: <22VDC

  • Voltage protection level @ 100A (2/10us): <22Vpeak

  • Standards: IEEE 802.11af, GR-1089, NEC 800.100, CE, RoHS compliant



Mechanical/Environmental Specifications



  • Construction: Black ABS plastic, UL94V0 flame rating

  • Connector: RJ45 Cat5e

  • Temperature: -40 to +75ºC / 99% non-condensing

  • Weight: 70g

  • Dimensions: 25 x 25 x 94mm (L x W x H)



Read More





(DPR-1000-BASET)

SKU DPR-1000-BASET
Shipping Weight 0.0450kg
Shipping Width 0.080m
Shipping Height 0.050m
Shipping Length 0.100m
Shipping Cubic 0.000400000m3
